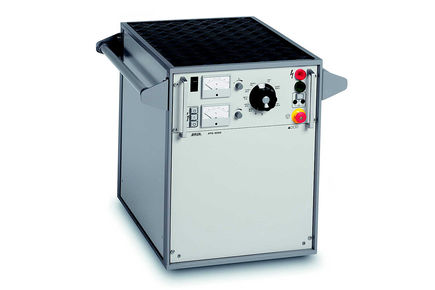

The high performance ATG 6000 burn down transformer is used for impedance reduction of cable faults in low- and medium-voltage networks. The short-circuit proof 5.75 kVA stray field transformer delivers a maximum voltage of 15 kV and is housed in a fully enclosed 19½ housing.

Features:

Proven methodes for cable faults that are difficult to locate
Useful for cables that are difficult to access
Robust construction for reliable functions
Independent current and voltage control on each burning level
