Camera video inspectie conducte canalizare tevi WOHLER VIS200 & VIS250

Descriere

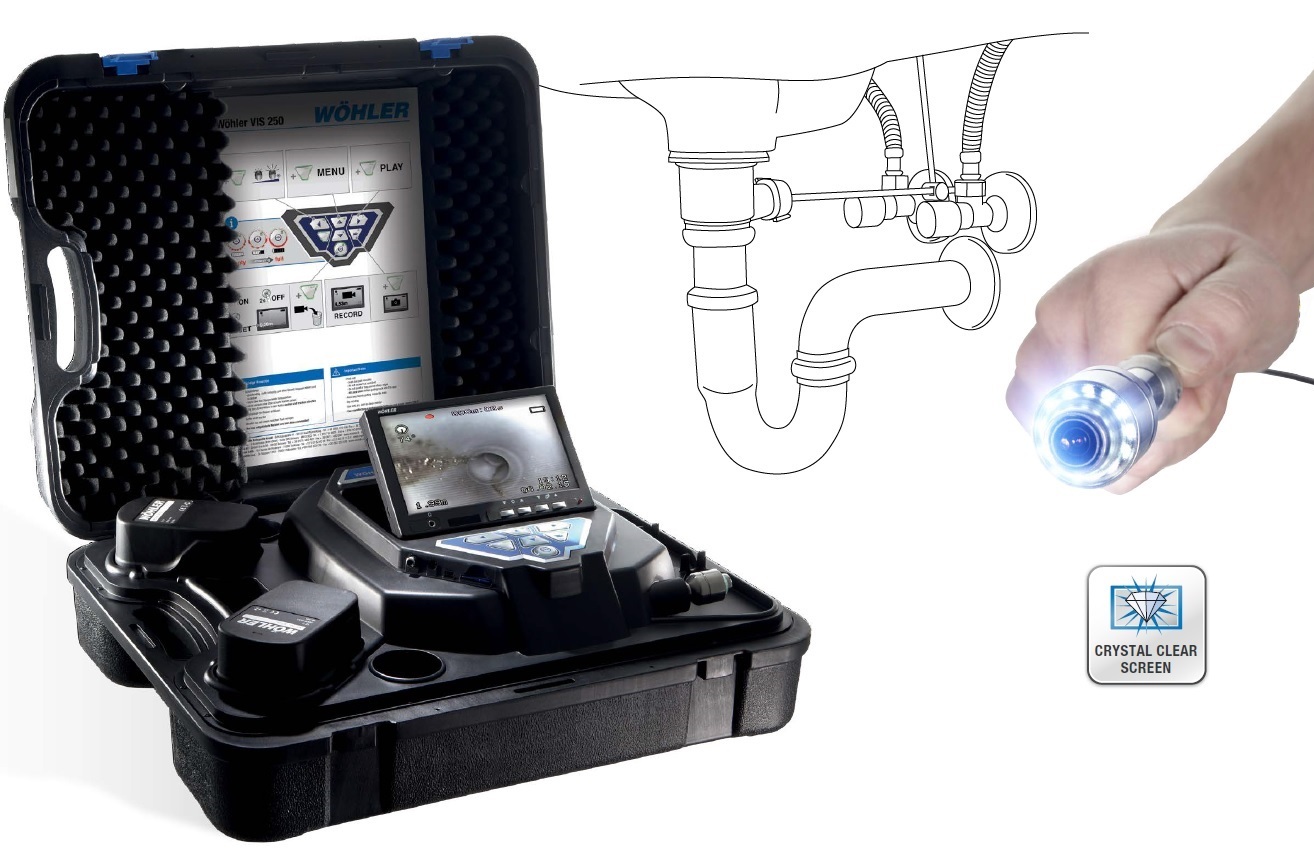

WÖHLER VIS 200 & WÖHLER VIS 250

VIDEO INSPECTION, DOCUMENTATION, LEVEL INDICATOR AND LOCATOR

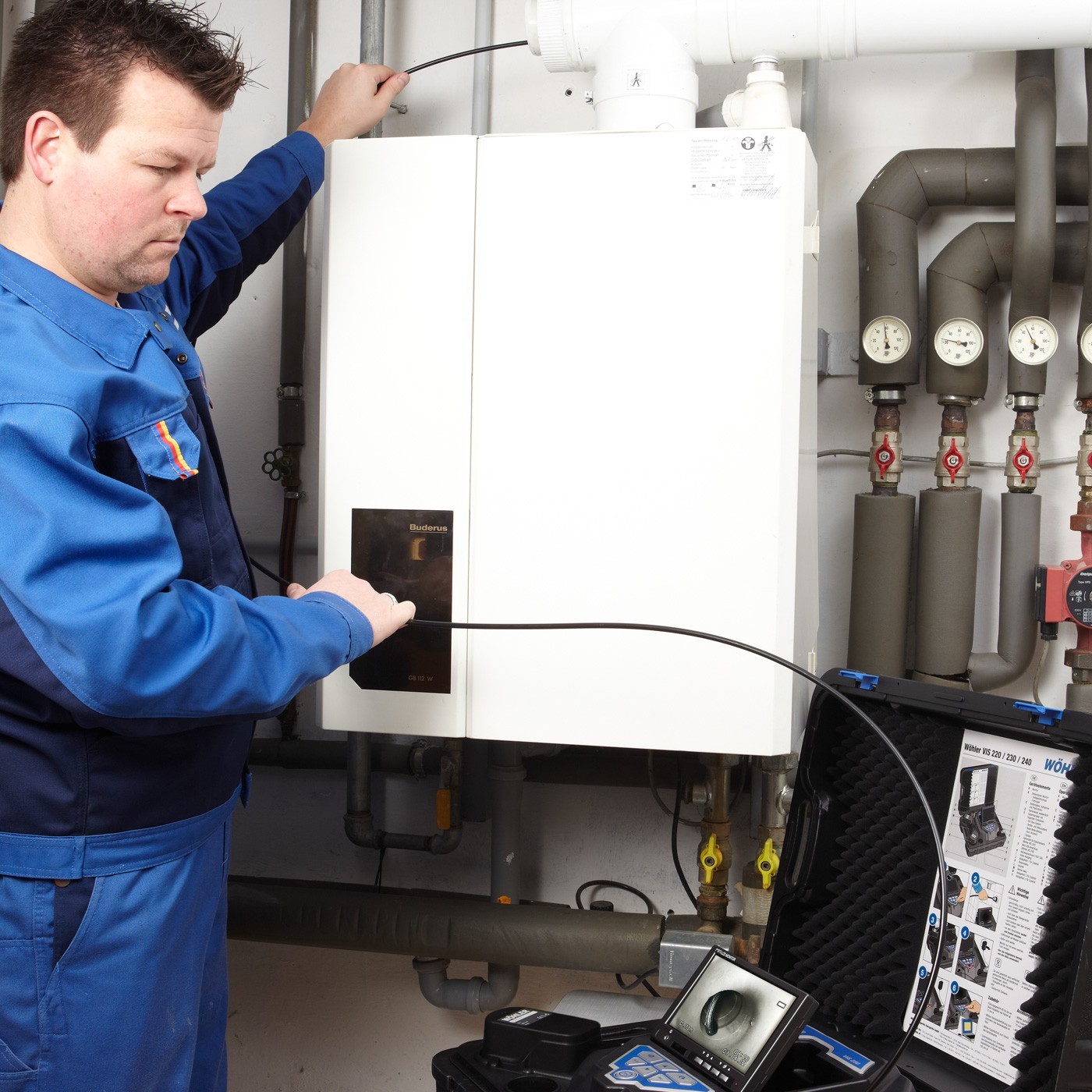

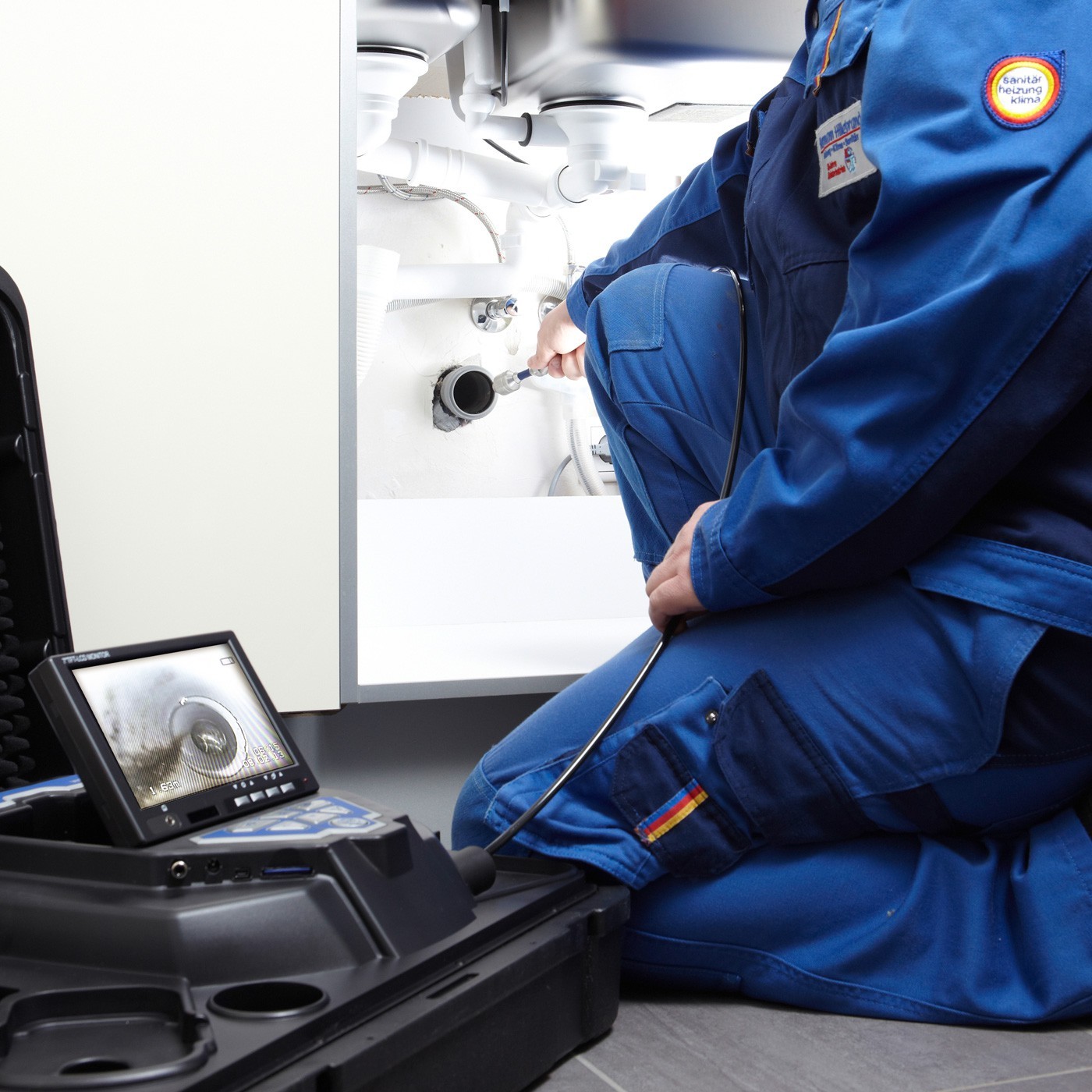

Wöhler‘s innovative VIS 250 Visual Inspection System enables you to easily analyze damages in pipes of Ø 40 mm and larger - and no power outlet required. Compact by design and powered by a rechargeable battery, this complete camera set is supplied in a plastic case. The camera head features a powerful, integrated light to allow you to precisely analyze damages in waste water pipes (at least Ø 40 mm) and inspect downpipes as well as flue gas lines. Absolutely essential to analyze damage quickly

FUNCTIONALITY

·· CCS-image technology (Cristal Clear Screen)

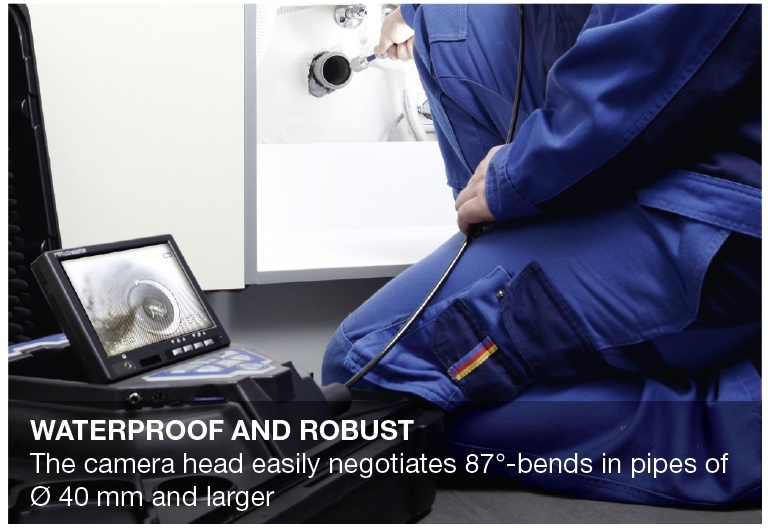

·· Waterproof, light-sensitive camera head with a diameter

of just 26 mm easily takes bends

·· Save videos on a 4 GB SD card (Wöhler VIS 250)

·· Digital Position Indication of the camera head (Wöhler

VIS 250)

·· Electronic metering displayed on monitor

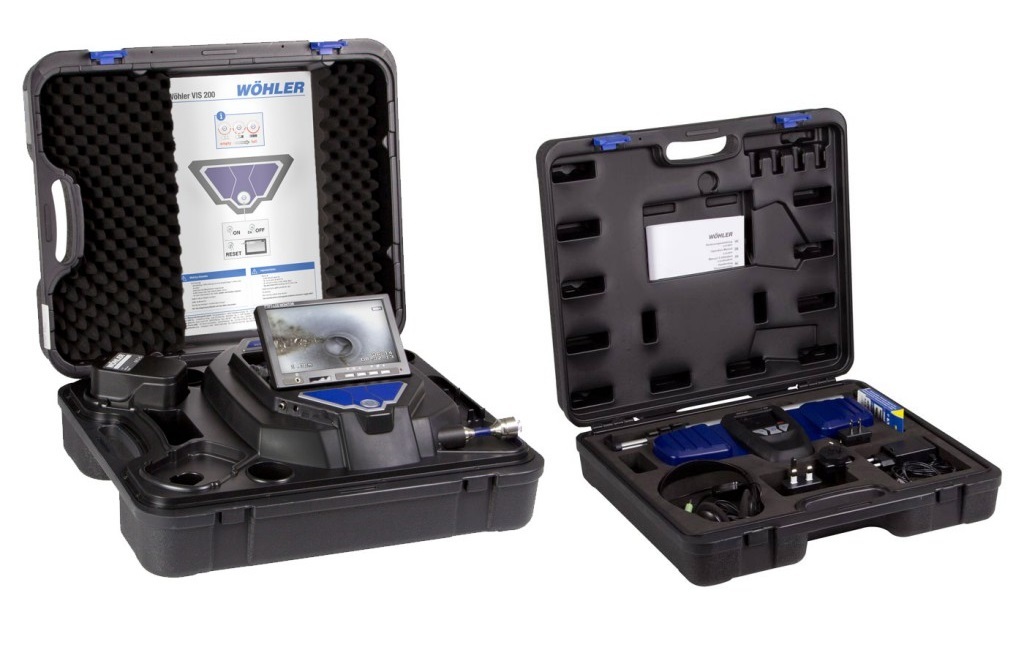

·· Fully equipped mobile solution in a robust, plastic case

·· Bright TFT color monitor for razor-sharp images

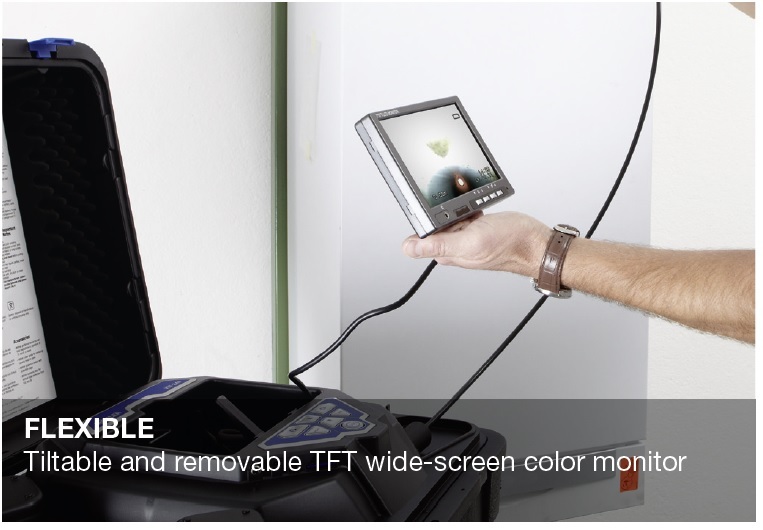

·· Tiltable and removable monitor

·· Integrated video output for documentation purposes

·· Battery operating time: 2 x 120 min. with 2 rechargeable

batteries (optional)

·· Data exchange via mini USB cable

WIDE RANGE OF APPLICATIONS

Analyze damage and inspect:

·· Waste water pipes of Ø 40 mm and larger

·· Ventilation lines of Ø 40 mm and larger

·· Inspect hollow spaces; e.g. in front-wall installations

·· Flue gas lines up to approx. Ø 125 mm

DOCUMENTATION

·· Simply record and save pictures and videos on a 4 GB

SD card (Wöhler VIS 250) for documentation and archiving

purposes for you and your customers.

·· Video-output

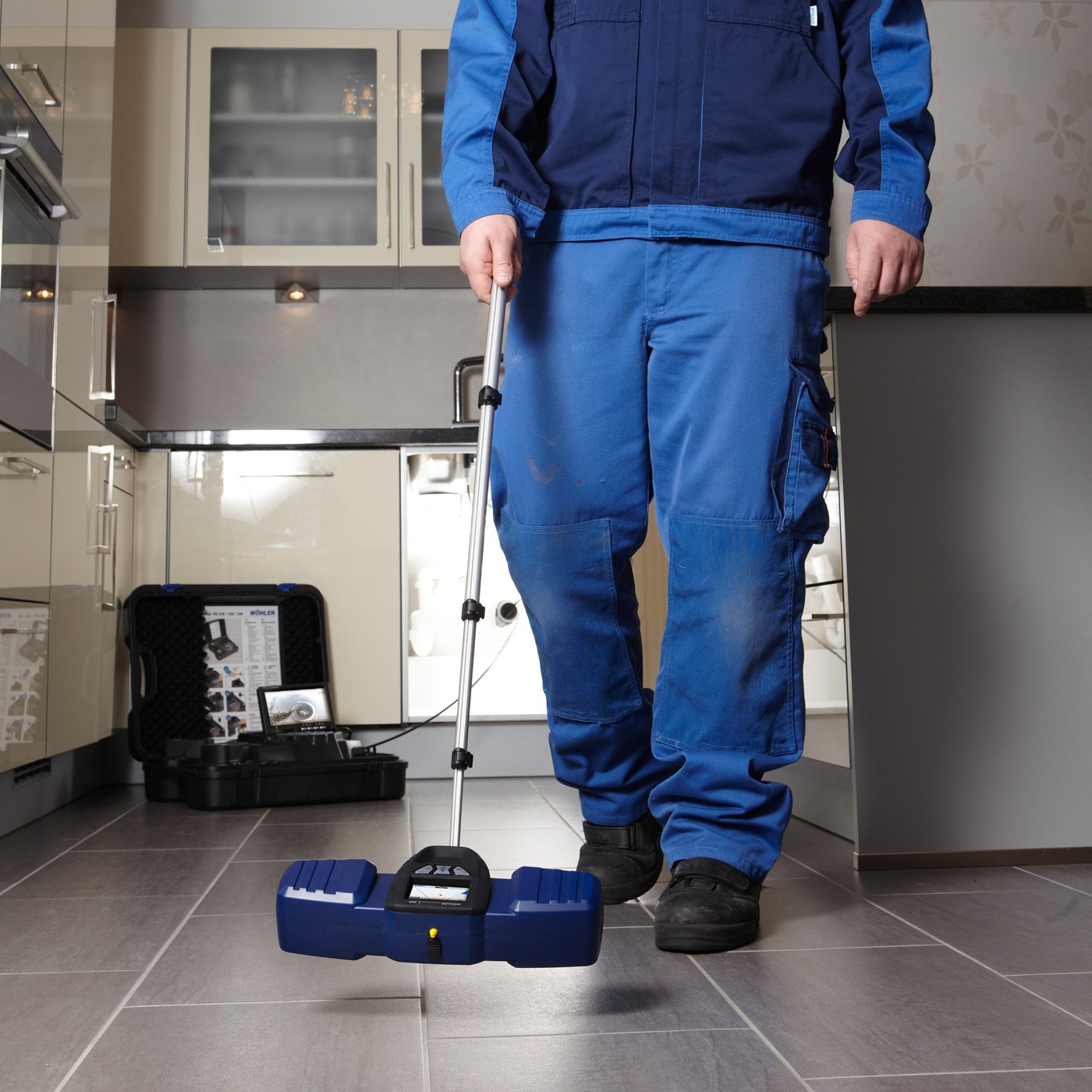

LOCATOR (OPTIONAL WITH WÖHLER L 200)

·· Transmitter integrated in camera head makes it possible

to precisely locate the camera head

·· Pinpoint damages in pipes for repair

·· Telescopic holder makes it possible to locate damage

under floors or in ceilings

·· Chalk holder with chalk to mark located damage immediately

·· Powerful rechargeable battery

Technical data

Monitor

Dimensions housing..............176 x 114 x 32 mm

TFT-display ..........................7" / 16:9 format

Video out .............................RCA signal

Weight .................................400 g

Power supply........................Space for 2 rechargeable batteries, each 12 V or via power pack

Battery operating time...........Max. 2 rechargeable batteries, each 120 mins. = 4 h

(battery status in display)

Miniature camera head, color Ø 26 mm

Type ....................................1/3" COLOR CMOS

Resolution ............................420 lines

Pixels ...................................768 x 576 (PAL), 656 x 492 (NTSC)

Light sensitivity ....................0.5 Lux

Lens ....................................f = 2.3 mm, F = 2.5

Viewing angle .......................115°

Light source ........................12 white LEDs

Degree of protection ............Waterproof to IP 68

Dimensions .........................Ø 26 mm x 38 mm

Weight .................................240 g

Operation temperature ..........0...40 °C, RH 95 % MAX

Storage temperature .............-20...50 °C, RH 95 % MAX

Transmitter frequency ...........8.9 kHz

distance measurement

Wöhler VIS 200/250 .............Electronic meter counter

Plastic case

Dimensions ..........................51 x 43 x 17 cm (L x W x H)

Weight .................................7 kg

Memory (wöhler vis 250)

Recording ............................2 GB SD card (2,5 h recording capacity)

Interface ..............................Mini USB port

locator sender

Transmitter frequency ...........8.9 kHz

locator receiver

Display .................................Graphic visualization of transmitted position

Output impedance

Headphones ........................32 Ohm

Power supply........................3.7 V Li-Ion rechargeable battery

Operating temperature ..........0...40 °C

Storage temperature .............-10 °C...40 °C

Weight .................................605 g

Dimensions ..........................32 x 14 x 7 cm (L x W x H)

1) Excepted from this: Opening of the housing, inappropriate handling; For further information

please see our guarantee guidelines
