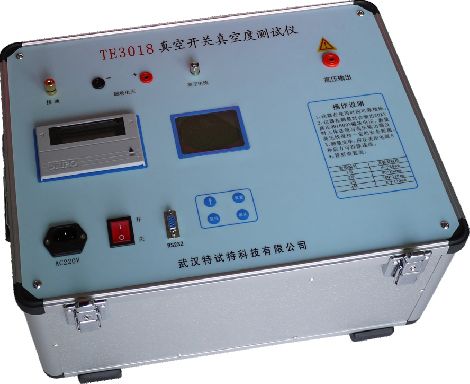

Quantitative measurement of vacuum switch interrupter, with quantitative measurement method, not only can measure whether the Circuit Breaker Vacuum Bottle in the normal range, but also can calculate the life of some vacuum switches which leakage very fast through the analysis of results over the years approximately, thereby, fulfilling the purpose of accident prevention.In accordance with IEC standards IEC 62271-100:2008 High-voltage switchgear and control gear - Part 100: Alternating-current circuit-breakers.

  (1) Quantitative measurement of various models of vacuum switch interrupter.
  (2) Needn’t to dismantle the vacuum switch when test on-site.
  (3) Accurate and reliable test results.
  (4) Chinese Character LCD display, simple to operate.
  (5) The test data can be saved, printed and checked.

Power Supply	Voltage : AC220V±10% Frequency : 50Hz±1Hz
Executive Standard	IEC 62271-100:2008 High-voltage switchgear and control gear - Part 100: Alternating-current circuit-breakers
Service condition	Ambient temperature : -10?~40?
Dimensions	460mm�335mm�330mm
Weight	12kg
Measurement Range	10^-4~10^-1Pa
Electric field voltage	15KV
Magnetic field voltage	1600V
Instrument precision	5%
