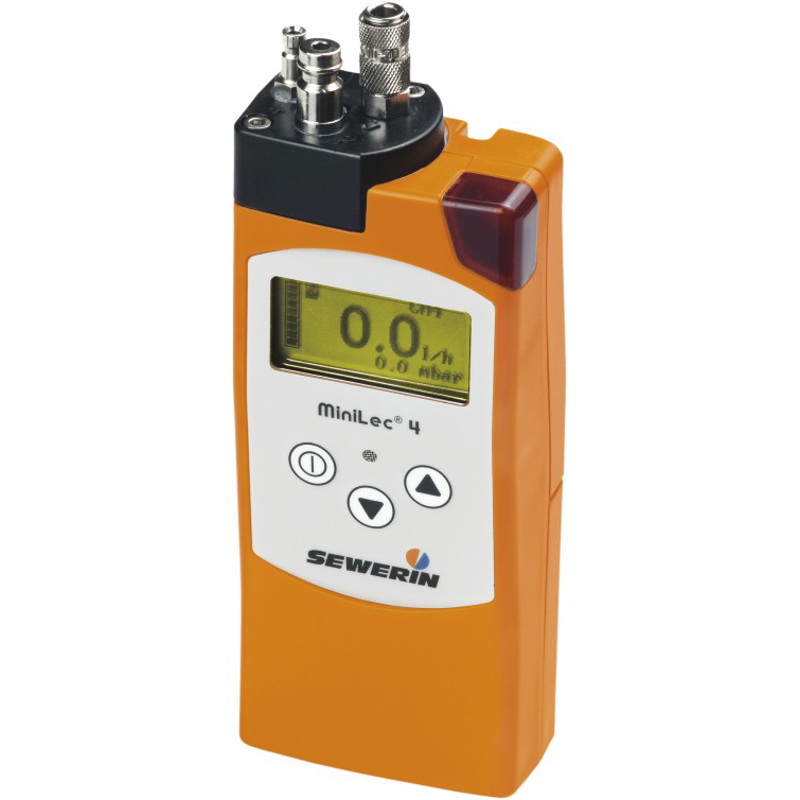

The MiniLec 4 is a measuring device for load testing, leak tightness testing and serviceability testing in accordance with DVGW (German Technical and Scientific Association for Gas and Water) Code of Practice G 600 "Technical regulations for gas installations" and for regulator inspection.

Features:

Using tables stored in the device, the operator selects only the pipe volume, the device performs the rest of the measuring procedure automatically
Two equipment versions are available:
with load testing (fully equipped) and without preliminary testing
Operating modes: serviceability testing, leak tightness testing and load testing
Regulator inspection with static pressure, flow pressure, safety valve shut off pressure, zero position and testing of the gas failure device
Easy operation using three keys
Device software with a user menu and function menu for individual device configuration (PIN code protected)
Infrared interface (IrDA) for
On-site documentation (print-out on mobile printer)
On-site data transfer to mobile computer
Device software available in various languages • PC software makes documentation and archiving easy
Serviceability test: simultaneous display of pressure and flow
Adjusted for CH4, C3H8, C4H10, H2, town gas, air

Alte produse SEWERIN

SEWERIN BIOCONTROL 4 AND 8 MONITORIZARE GAZ

• Save time and money whilst ensuring maximum safety by way of continuous automatic measurement
• Extremely user-friendly and individual configuration
• Process monitoring and optimisation (e.g. by substrate adjustment)
• Successfully improve gas quality and increase yield

SEWERIN SECURI SAT DETECTOR SCURGERI GAZE PE LAPTOP

• Simple and intuitive operation of the gas leak detector from a laptop
• Pipe network inspection in accordance with DVGW (German Technical and Scientific Association for Gas and Water) regulations G 465 ff. and G 466 f.
• Overview of the inspected routes in the route manager

SEWERIN EX-TEC SNOOPER 4 DETECTOR SCAPARI GAZE

• Testing room air (house test)
• Large, illuminated LCD display
• Easy operation using three keys
• Self-test on start-up

SEWERIN EX-TEC GM 4 TESTER GAZ CU ALARMA GAZE TOXICE INFLAMABILE

• Internal data memory (PC readout possible)
• Visual and audible alarms
• Adjustable alarm thresholds
• Temperature compensated sensors
• User menu

SEWERIN MULTITEC 410 ANALIZOR GAZE

• Intuitive operating concept with jog dial, menu navigation and function keys
• Large-format transflective display with backlight
• Catalytic sensor with functional safety test for nonane (C9H20)
• Rapid charging in 3 hours, even without a charging station

SEWERIN RMLD-IS DETECTOR SCURGERI GAZE CU LASER LA DISTANTA

• Measurement at a distance of up to 30 m
• No cross-sensitivity with respect to other hydrocarbons
• Integrate self test and adjustment function that guarantee correct functioning of the device.

SEWERIN MULTITEC 560 ANALIZOR DE GAZE

• EC type-examination certificate: TÜV 07 ATEX 553353 X
• Measuring function: BVS 09 ATEX G 001 X, PFG 08 G 002 X (applies to ExTox warning application for CH4, CO2, O2, CO, H2S)
• Minimum eight hour battery life in use, rapid charging in four hours

SEWERIN MULTITEC 545 ANALIZOR DE GAZ

• Innovative operating concept with jog dial, menu navigation and function keys
• Large-format matrix display with backlight
• Selective infrared sensors for hydrocarbons and carbon dioxide
• EC sensor for hydrogen sulphide with wide measuring range (5000 ppm)

SEWERIN EX-TEC PM4 DETECTOR GAZ CU ALARMA SI MASURA CONCENTRATIE

• Large, illuminated LCD display
• Self-test on start-up
• Easy operation using three keys
• Visual and audible alarms

SEWERIN VARIOTEC 480 / 460 / 450 / 400 EX ANALZIOR DETECTOR GAZE

• Innovative operating concept, with jog dial, soft keys and menu navigation
• Large-format matrix display with backlight shows all values at a glance
• Rapid charging in four hours even without a charging station means high availability
• Power supplied from four replaceable AA-size rechargeable or disposable batteries
• PC communication via USB bus
