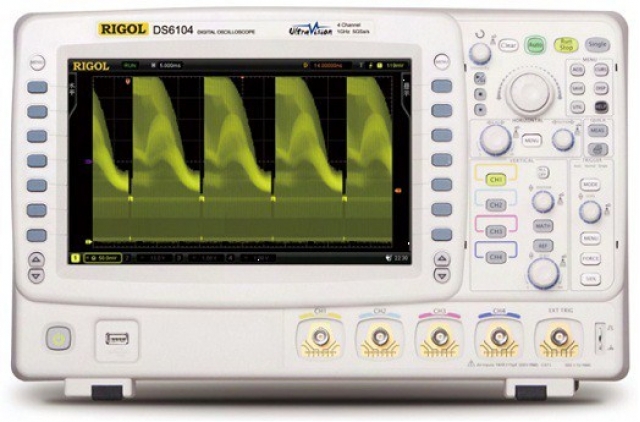

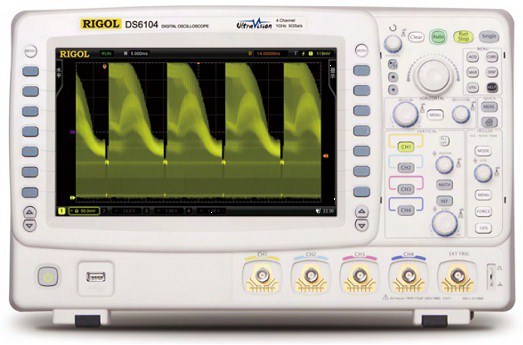

Osciloscop digital Rigol DS6000
PRODUS OBSOLET ( * SCOS DIN UZ )

Cod: Rigol DS6000 DS6062 DS6064 DS6102 DS6104



Brosura produs PDF, 0.81 Mb

Descriere

DS6062 2 Channel, 600MHz Bandwidth, 5GS/s Sample Rate, 140Mpts

DS6064 4 Channel, 600MHz Bandwidth, 5GS/s Sample Rate, 140Mpts

DS6102 2 Channel, 1GHz Bandwidth, 5GS/s Sample Rate, 140Mpts

DS6104 4 Channel, 1GHz Bandwidth, 5GS/s Sample Rate, 140Mpts



  • Up to 4 Analog Channels
  • Up to 1 GHz Bandwidth
  • 5 GSa/sec max sample rate
  • 140 Million Memory Points Standard
  • 180,000 Waveforms per Second Acquisition
  • 180,000 Frames Recording Capability
  • Trigger modes: edge, pulse width, slope, video, RS-232, I2C, SPI, and CAN (serial data trigger modes are standard, but on-board decoding requires the related options)





Model

DS6104

DS6102

DS6064

DS6062

Bandwidth

1 GHz

1 GHZ

600 MHz

600 MHz

Analog Channels

4

2

4

2

Vertical Sensitivity

2 mV/div - 10V/div

Real-time Sample Rate

5 GSa/s（single channel mode），2.5 GSa/s（dual channel mode）

Memory Depth

140 Million Points

Waveform Acquisition Rate

180,000 Waveforms per Second

Standard Interface

USB Host & Device, RS-232, P/F Out

Vertical Resolution

8 bits

Math

＋, ï¼, Ã-, FFT, customizable user defined

Waveform Record

180,000 Waveforms

Cursor Measurements

Manual, Track and Auto Measure modes



Accesorii standard

Power Cord conforming to the standard of the country

Front Panel Cover

USB Data Cable

600MHz BW Passive Probe,4 sets for 4 channel models,2 sets for 2 channel models

1.5GHz BW Passive Probe,2 sets for DS6104,1 set for DS6102

Quick Guide

Resource CD (User"™s Guide and Application Software)



Optiuni recomandate

1.5GHz Active Differential Probe

500MHz BW Passive Probes(Support all models)

600MHz BW Passive Probe(Support all models)

1.5GHz BW Passive Probe(Support all models)

USB to GPIB Module

Desk Mount Instrument Arm

Rack Mount Kit

RS232/UART Decording kit

I2C/SPI Decording kit

CAN Decording kit

FlexRay Decording kit

Order Number

DS6104

DS6102

DS6064

DS6062

-

FPC-DS-6

CB-USB-150

RP5600A

RP6150A

-

-

RP7150

RP3500

RP5600A

RP6150A

USB-GPIB

ARM

RM-DS-6

SD-RS232-DS6

SD-I2C/SPI-DS6

SD-CAN-DS6

SD-FlexRay-DS6
