Osciloscop 12-bit RIGOL DHO800

"¢ Ultra-low noise floor, purer signal, never miss the small signals

"¢ Up to 12 bits resolution for all the models of this series

"¢ Max. analog bandwidth of 100 MHz, 4 analog channels, external trigger output (std.) available for the dual-channel model

"¢ Max. real-time sample rate of 1.25 GSa/s

"¢ Max. memory depth of 25 Mpts

"¢ Vertical sensitivity range: 500 μV/div to 10 V/div

"¢ Max. capture rate of 1,000,000 wfms/s (in UltraAcquire mode)

"¢ Digital phosphor display with real-time 256-level intensity grading

"¢ Waveform search and navigation function allows you to debug the signal anomalies faster

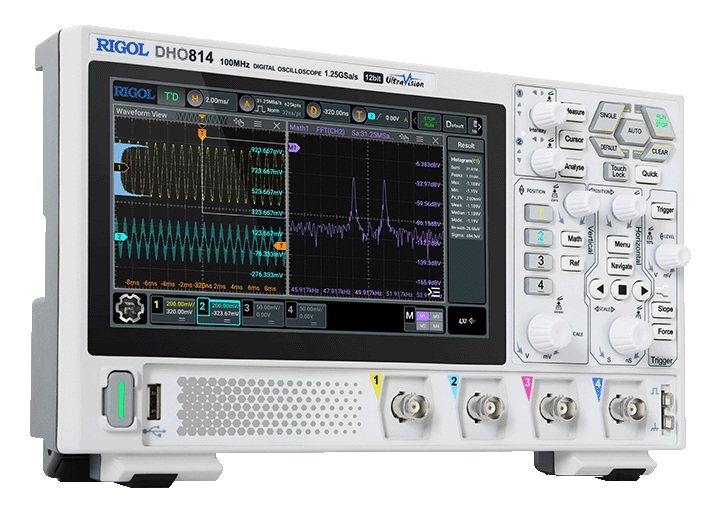

"¢ 7" (1024x600) capacitive multi-touch screen

"¢ Brand new Flex Knob brings user-friendly experience

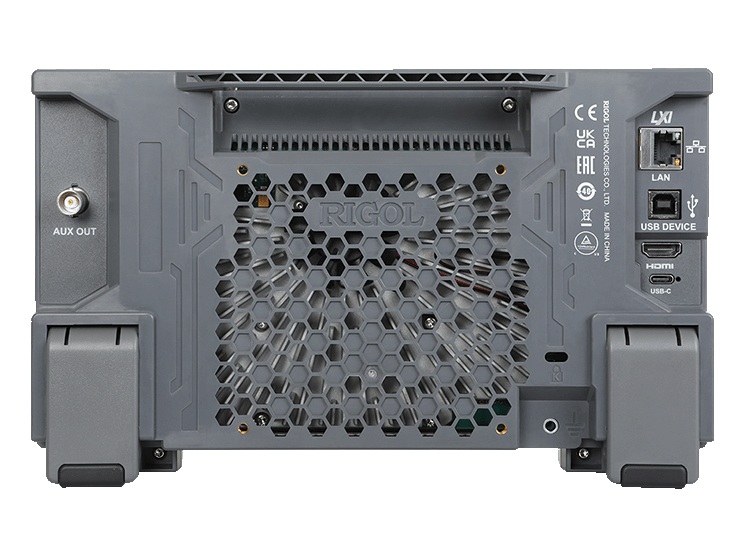

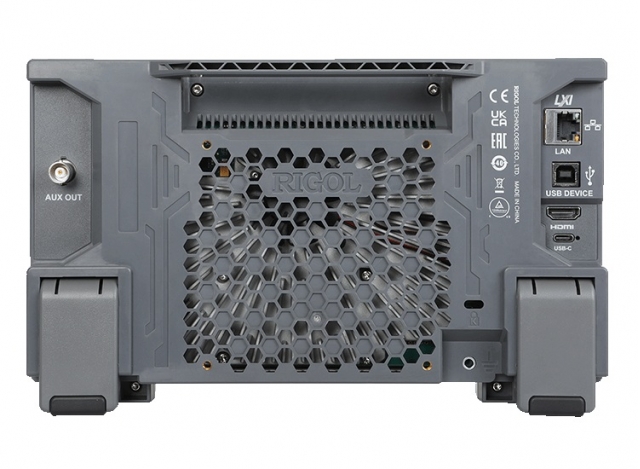

"¢ USB Device & Host, LAN, and HDMI interfaces (std.) for all the models of this series

"¢ Novel and delicate industrial design, easy to operate

"¢ Unique online upgrade

The DHO800 series digital oscilloscope is a highly portable and high-resolution digital oscilloscope based on RIGOL's "Centaurus" technology platform.

The DHO800 series is RIGOL's new launched high-performance economical digital oscilloscope.

Though compact in design, it has superior performance. It features a capture rate up to 1,000,000 wfms/s (in UltraAcquire Mode), 25 Mpts memory depth, 12 bit resolution, and low noise.

The DHO800 series is a brand new economical digital oscilloscope designed for the vast

mainstream digital oscilloscope market to meet their design, debugging, and test demands

Application Scenarios

It is compact and portable, easy to be used on the workbench, in the classroom, on the test site, and in other application scenarios.

Its compact and delicate design makes it easy to carry and operate. You can put it on the workbench, with supporting legs folded or unfolded; put it flat on the workbench; or fix its rear panel to the desktop clamp-on stand to save room.

Technical Advantage

12-bit High Resolution 8bit

12-bit vertical resolution provides 4096 vertical digitizing levels

16 times the vertical digitizing level of the 8-bit resolution

Easy for users to test and see the small signals

Type-C Interface

Provides power with the mobile power supply via this interface, making the on-site test more flexible.

Application

Embedded Design

The bus error and too much locking may lead to problems in the embedded design. The DHO800 series is equipped with a standard configuration of protocol triggers and decodes, capable of capturing the bus event accurately to check whether the serial communication link between devices runs properly.

Electronics Maintenance

When troubleshooting a failed component, we need to quickly locate the problem and make some modifications. With the auto measurement, math operation, protocol trigger and decode, the DHO800 series enables you to debug the problems with a high speed and locate the problem accurately.

Basics R&D

The DHO800 series offers professional user experience at an affordable entry-level price. The brand new DHO800 series supports touch screen operation and the traditional convenient panel operation. It is an ideal high-precision oscilloscope with 12-bit measurement accuracy at an affordable price for your lab.
