Transmodulator DVB-S/S2 -> DVB-T Promax DT-232

Cod: Promax DT-232




Brosura produs PDF, 0.2 Mb

Descriere

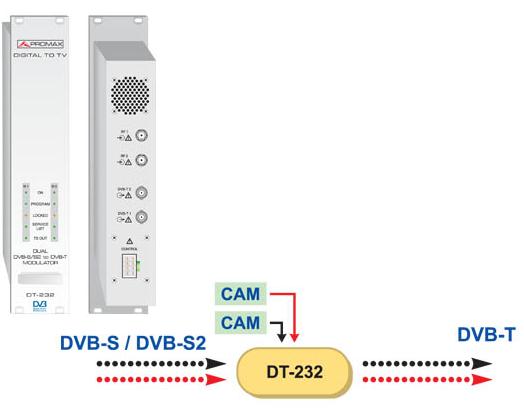

DT-232 modules are double transmodulators DVB-S/S2 (QPSK/8PSK) to DVB-T (COFDM). Its QPSK/8PSK inputs can be tuned to any satellite transponder, releasing the output at UHF band.

Its allows changing many parameters including the frequency and the level of the output signals.

The double transmodulator DVB-S/S2 to DVB-T (DT-232) includes an internal combiner providing a single DVB-T output with high C / N rate. This feature gives great robustness to the signal so it allows the addition of RF amplifiers in cascade when distributing with minimal loss of
signal quality.

Each satellite receiver has an interface for Conditional Access Module (CAM). Different types of CAM can be used to decode one or more of the available encrypted programs and distribute them Free to Air.





DVB-S/S2 FI INPUT
    Connectors

2 independent DVB-S/S2 IF inputs
75 ? F-type, female

RF OUTPUT
  Connectors

2 independent combined DVB-T multiplexes
Female BNC, 50 ? Impedance

TS PROCESSING
  Filtering
  Measurements


PID Filtering Table up to 32 PID
Bitrate of the output multiplex
Percentage of bitrate used (relative to the maximum capacity of the multiplex)



Optiuni recomandate

DT-800B

Control unit and power supply.

DT-802

Control unit and redundant power supply modules.

DT-900

Rack and wall mounted structure.

DT-900B

Rack mounted structure.

DT-901

Empty module plates..

DT-902B

Power CAM modules for smart cards..

CC-043

Supply and control cable with 3 connexions for DT-800B (included)

CC-044

Supply and control cable with 4 connexions for DT-800B (included)

CC-143

Supply and control cable with 3 connexions for DT-802 (included)

CC-144

Supply and control cable with 4 connexions for DT-802 (included)

OP-XXX-V

Output in the range 170-650 MHz for modules with DVB-T..

OP-800-P

Option required to use DT-800B with 3 x DT-730 modules

OP-212-D

Dual independent output for DT-212B

OP-504-S

TS-ASI output option for DT-504B







RECEIVERS WITH ASI-TS OUTPUT

DT-302

Dual DVB-S/S2 receiver with CAM, ASI-TS output.

DT-312

Dual DVB-T receiver, ASI-TS output.

DT-324-M

IP receiver to ASI-TS output (MPTS).

DT-324-S

IP receiver to ASI-TS output (SPTS).







IP STREAMERS

DT-421-M

IP Streamer. ASI-TS inputs, IP output (MPTS)

DT-421-S

IP Streamer. ASI-TS inputs, IP output (SPTS)







COMBINERS - AMPLIFIERS

DT-700

4x1 quadruple DVB-T combiner .

DT-710

8 input DVB-T combiner with a 117 dBuV (+10 dBm) one

 single output.

DT-722

4 input DVB-T combiner with a 129 dBuV / 250 mW (+22 dBm)

 one single output.

DT-730

DVB-T amplifier with a 137 dBuV / 1 W (+30 dBm).

DT-610

Optical transmitter module

DT-620

Optical receiver module
