Amplificator putere RF DVB-T semnal COFDM 1W 30dBm Promax DT-730

Cod: Promax DT-730

Brosura produs

PDF, 0.11 Mb

Descriere

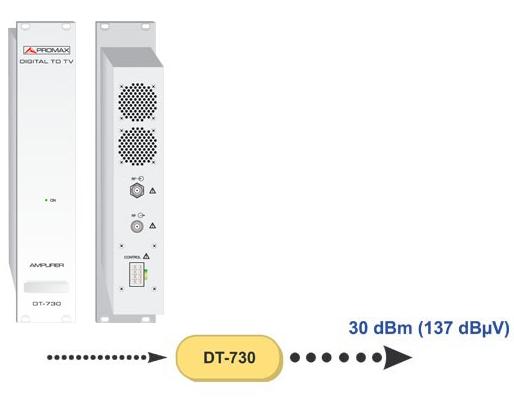

The DT-730 is a high quality 1 W RF power amplifier for COFDM signals, both for single carrier or multicarrier system. The system provides an amplified output of 30 dBm (137 dBµV).

This is a high quality solution that preserves the original signal quality and maintains a low noise levels.

FREQUENCY BANDS	UHF from 470 MHz ~ 862 MHz
INPUT Type Maximum COFDM Input	1 canal a 85 dBµV ± 3 dB 2 canales a 82 dBµV ± 3 dB 4 canales a 79 dBµV ± 3 dB 8 canales a 76 dBµV ± 3 dB 16 canales a 73 dBµV ± 3 dB 32 canales a 70 dBµV ± 3 dB
OUTPUT Type MER Gain Maximum COFDM Power Maximum output level	1 x 50 ? BNC female = 35 dB 52 dB ± 3 dB +30 dBm 1 channel at 137 dBµV 2 channels at 134 dBµV 4 channels at 131 dBµV 8 channels at 128 dBµV 16 channels at 125 dBµV 32 channels at 122 dBµV

Optiuni recomandate

DT-800B	Control unit and power supply.
DT-802	Control unit and redundant power supply modules.
DT-900	Rack and wall mounted structure.
DT-900B	Rack mounted structure.
DT-901	Empty module plates..
DT-902B	Power CAM modules for smart cards..
CC-043	Supply and control cable with 3 connexions for DT-800B (included)
CC-044	Supply and control cable with 4 connexions for DT-800B (included)
CC-143	Supply and control cable with 3 connexions for DT-802 (included)
CC-144	Supply and control cable with 4 connexions for DT-802 (included)
OP-XXX-V	Output in the range 170-650 MHz for modules with DVB-T..
OP-800-P	Option required to use DT-800B with 3 x DT-730 modules
OP-212-D	Dual independent output for DT-212B
OP-504-S	TS-ASI output option for DT-504B

	RECEIVERS WITH ASI-TS OUTPUT
DT-302	Dual DVB-S/S2 receiver with CAM, ASI-TS output.
DT-312	Dual DVB-T receiver, ASI-TS output.
DT-324-M	IP receiver to ASI-TS output (MPTS).
DT-324-S	IP receiver to ASI-TS output (SPTS).

	IP STREAMERS
DT-421-M	IP Streamer. ASI-TS inputs, IP output (MPTS)
DT-421-S	IP Streamer. ASI-TS inputs, IP output (SPTS)

	COMBINERS - AMPLIFIERS
DT-700	4x1 quadruple DVB-T combiner .
DT-710	8 input DVB-T combiner with a 117 dBuV (+10 dBm) one single output.
DT-722	4 input DVB-T combiner with a 129 dBuV / 250 mW (+22 dBm) one single output.
DT-730	DVB-T amplifier with a 137 dBuV / 1 W (+30 dBm).
DT-610	Optical transmitter module
DT-620	Optical receiver module
