Balante si Cantare | OHAUS

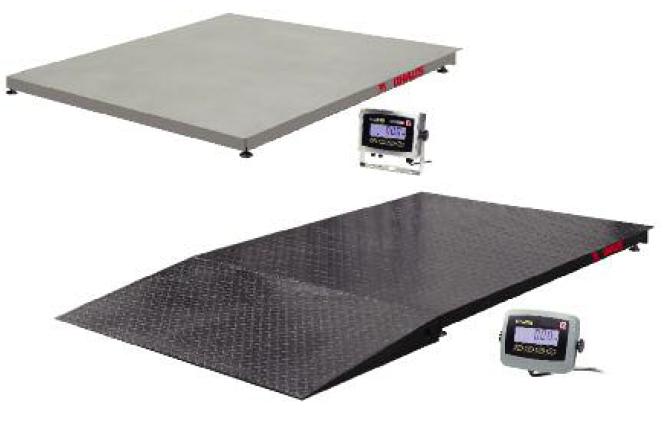

Platforme industriale de cantarire cu indicator Ohaus VE

Cod: Ohaus VE

Brosura produs

PDF, 0.11 Mb

Descriere

1,500kg and 3,000kg capacities in three platform sizes: 1m x 1m, 1.25m x 1.25m, 1.5m x 1.5m

• Two platform versions with structural bracing that ensures a stiff and solid construction.

• Two rugged OHAUS indicator models:

- T31P indicator features a high-impact ABS housing with key-holes on the rear cover for wall mounting

- T31XW indicator features a 304 stainless steel IP66 housing

• Four x OIML R60 approved IP67 alloy steel load cells

• Four x load cell mounted feet, self-swiveling ball-in-cup design

• Side access IP65 dust and water immersion protected stainless steel junction box with 5m long cable

• Includes two carbon steel eye bolts that allow easier lifting and positioning of the platform

• Available painted steel and stainless ramps with bottom support ribs that resist bending under heavy loads

• Available second stage verified scale models 1:3000e with OHAUS indicators and fixed-location mounting plates

• OHAUS indicators featuring backlit LCD displays with high-visibility 25mm high digits, five weighing units (kg, g, lb, oz, l

Optiuni recomandate

MODEL CODE	ITEM NR.	CAPACITY	READABILITY	PLATFORM
VE1500S31P	80251846	1500kg	500g	1000x1000mm
VE1500R31P	80251847	1500kg	500g	1250x1250mm
VE3000R31P	80251848	3000kg	1000g	1250x1250mm
VE1500L31P	80251849	1500kg	500g	1500x1500mm
VE3000L31P	80251850	3000kg	1000g	1500x1500mm
VE1500S31P-M	80251865	1500kg	500g	1000x1000mm
VE1500R31P-M	80251866	1500kg	500g	1250x1250mm
VE3000R31P-M	80251867	3000kg	1000g	1250x1250mm
VE1500L31P-M	80251868	1500kg	500g	1500x1500mm
VE3000L31P-M	80251869	3000kg	1000g	1500x1500mm
