Camera termoviziune infrarosu 160x120 THT47 pret ieftin
PRODUS OBSOLET ( * SCOS DIN UZ )

Descriere

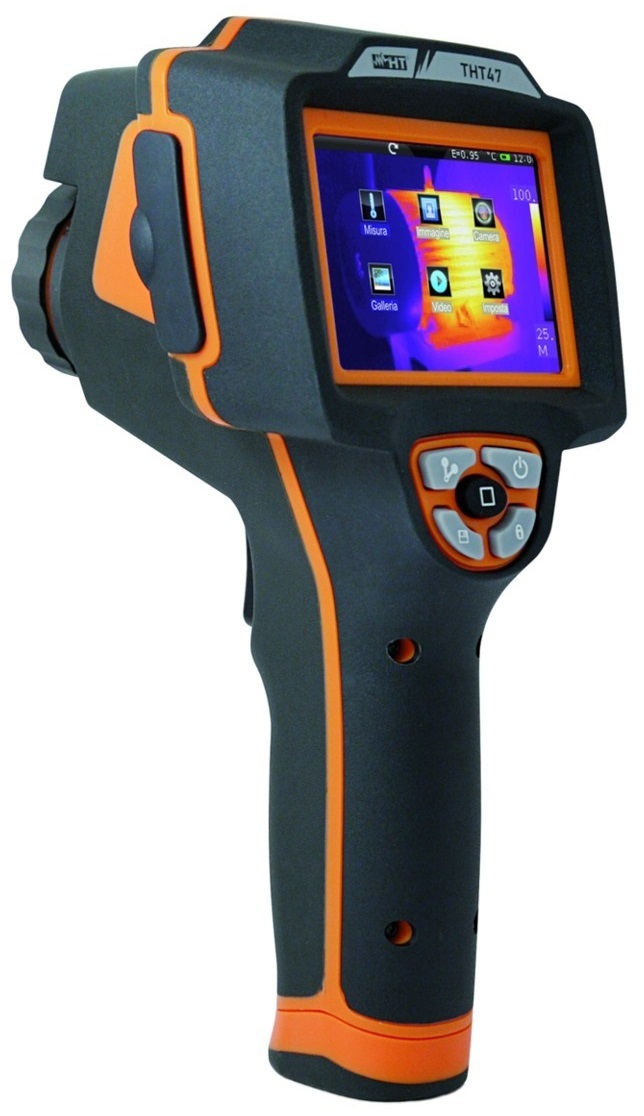

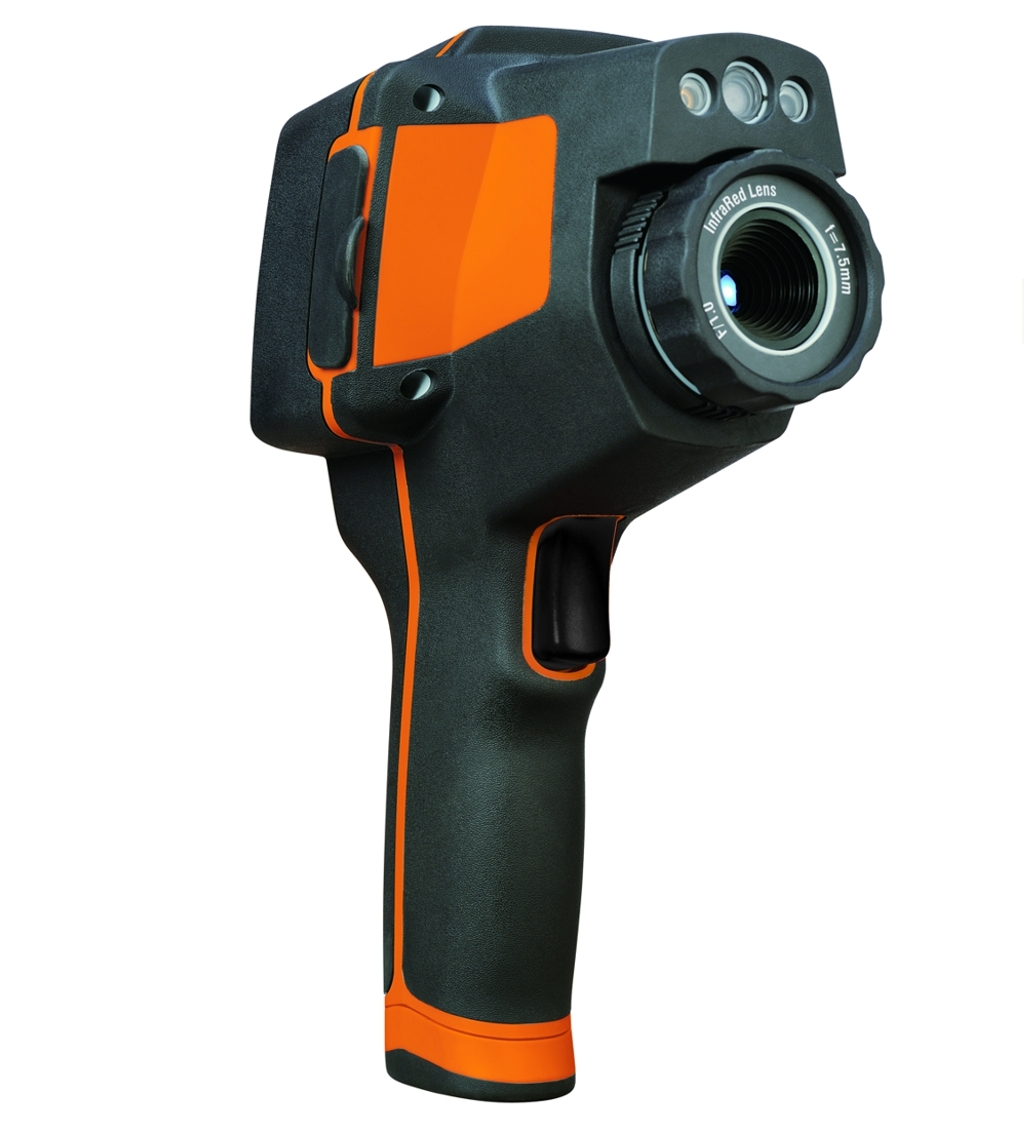

THT47 thermal imaging camera is a powerful user-friendly infrared thermal camera designed for detailed analysis to be performed by thermography operators. The instrument's core is the icon structure menu available through a capacitive TFT high brightness touchscreen LCD allowing really intuitive operations with finger touch selections. THT47 saves thermal and visual images into micro-SD cards under a standard JPG format also allowing data transfer to PC via USB interface. Live active IR data video recording is also available. THT47 has an IR sensor with optimum resolution (160x120pxl) which makes it perfectly suitable for preventive maintenance operations on any industrial application. The instrument has a wide temperature range (max 400°C) and a lot of internal features such as the possibility to perform advanced analysis including spots, lines, areas and isothermal on each image. This instrument is ideal to check mechanical devices, detect electric problems, check hydraulic systems, verify forced ventilation circuits, etc

Function

• Measurement range from -20°C to 400°C
• Readout in °C, °F, °K
• Wide color LCD display with capacitive touch-screen
• 8 color standard palette
• 10 customized color standard palette
• Manual image focusing
• Selectable emissivity values

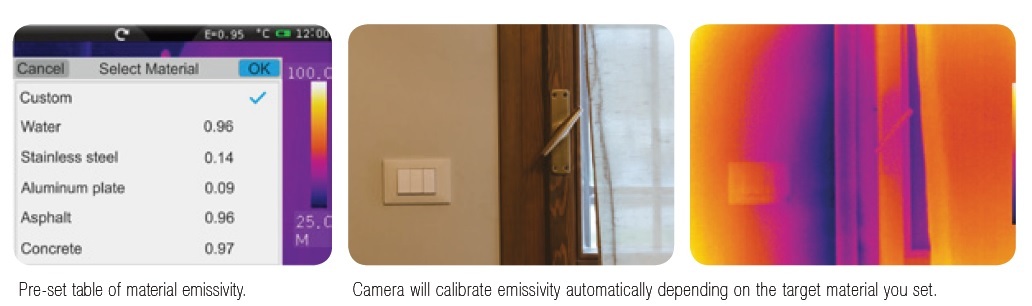

• Integrated emissivity table of most common materials
• Correction by reflection temperature, distance and relative humidity
• 3 movable internal cursors

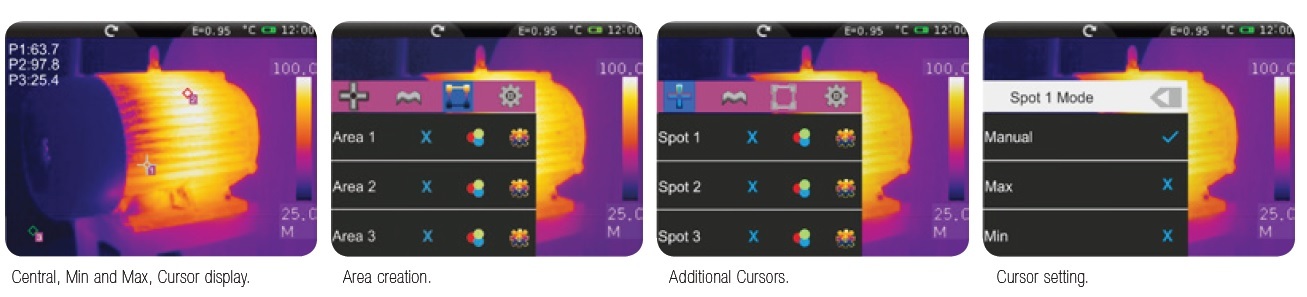

• Advanced analysis: Spot, Lines, Areas and Isotherm
• Alarm thresholds on temperature
• Resolution of IR sensor: 160x120pxl
• Voice and text notes
• IR pictures saved on SD card under JPG format
• IR videos saved on SD card under MPEG4 format
• Recording real-time IR videos with USB PC connection
• Video output (PAL/NTSC)
• Micro SD card memory
• Rechargeable Li-ION battery
• USB port for PC connection

Codmetel : HN000047

Best display ever.

›  3,5" Capacitive touchscreen

›  Wide ed extra bright

›  Superior sharpness and image quality

›  Oversampling tecnology

THT 47 thermal imaging camera is provided with capacitive touch-screen LCD of the latest generation. Thanks to "oversampling" technology pictures will be always clear with a degree of detail, with the best display even in the full light.

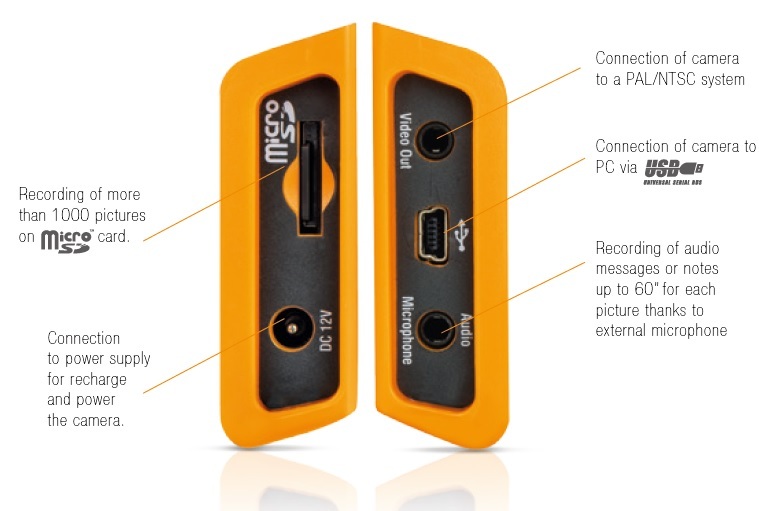

Stay Connected.

›  USB 2.0 PC connection

›  Microphone input for audio notes

›  Video output

›  MicroSD data saving

›  DC 12V plug for recharge/power supply.

With the new THT cameras you’ll be able to effect simultaneously:

•  Inspections while camera is powered by plug.

•  Projection of videos in real time through Video Out.

•  Saving hundreds of photos on 4GB MicroSd card.

Unstoppable. Unbreakable.

›  One Li-ION rechargeable battery

›  Up to 4,5 hours of continuous use per pack

›  Built-in charger and external charger

›  Soft bag to carry both camera and accessories

Simply smart.

› Innovative display

› New icon menu

› Simple and smart interface

› Fast access to all commands

› Easy and fast updates

So, so sensitive.

› Thermal sensitivity 0,08°C

› Temperature range -20/+400°C

› Temperature alarm setting

› Picture frequency 50Hz

Thermal sensitivity?

It’s hot today, temperature is 35.08°C.

Never been so accurate! Temperature range from -20°C to 400°C with thermal sensitivity of 0.08°C is very powerful thanks to a 50Hz updating frequency. After setting an alarm temperature threshold THT camera will warn user as soon as such a threshold is overcome.

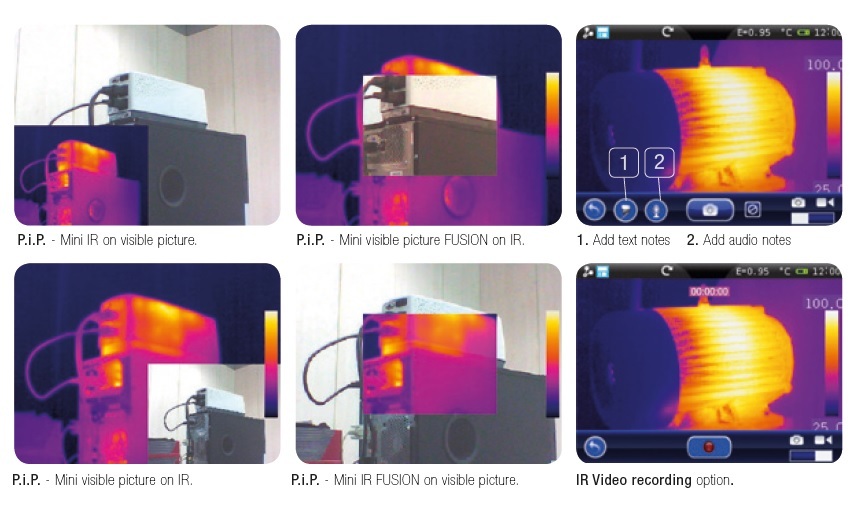

Text and Vocal notes.

• Text notes trough virtual keyboard
• Vocal notes with included headset

You can insert Text and Vocal notes trough virtual keyboard and included headset.

After , in the software you will find your note and you will make reports.

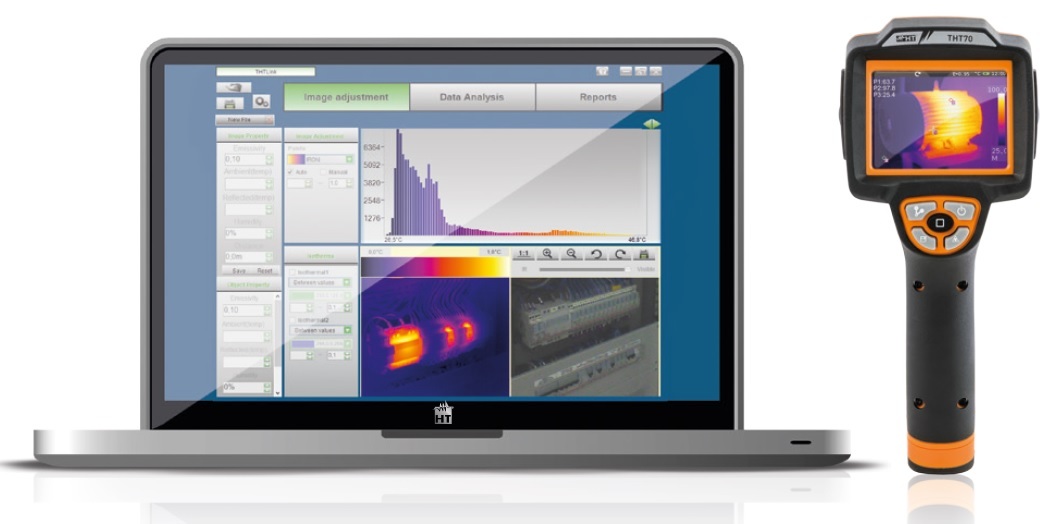

THTLink. That’s it.

› Thorough analysis

› Picture Adjustment

› Creation of professional reports

New software THT Link will enable you to make out thorough and professional reports quickly and easily. Adding pointers, creating areas, lines, polygons will be extremely easy and this thanks to new THT Link interface.
