Brand: HART SCIENTIFIC

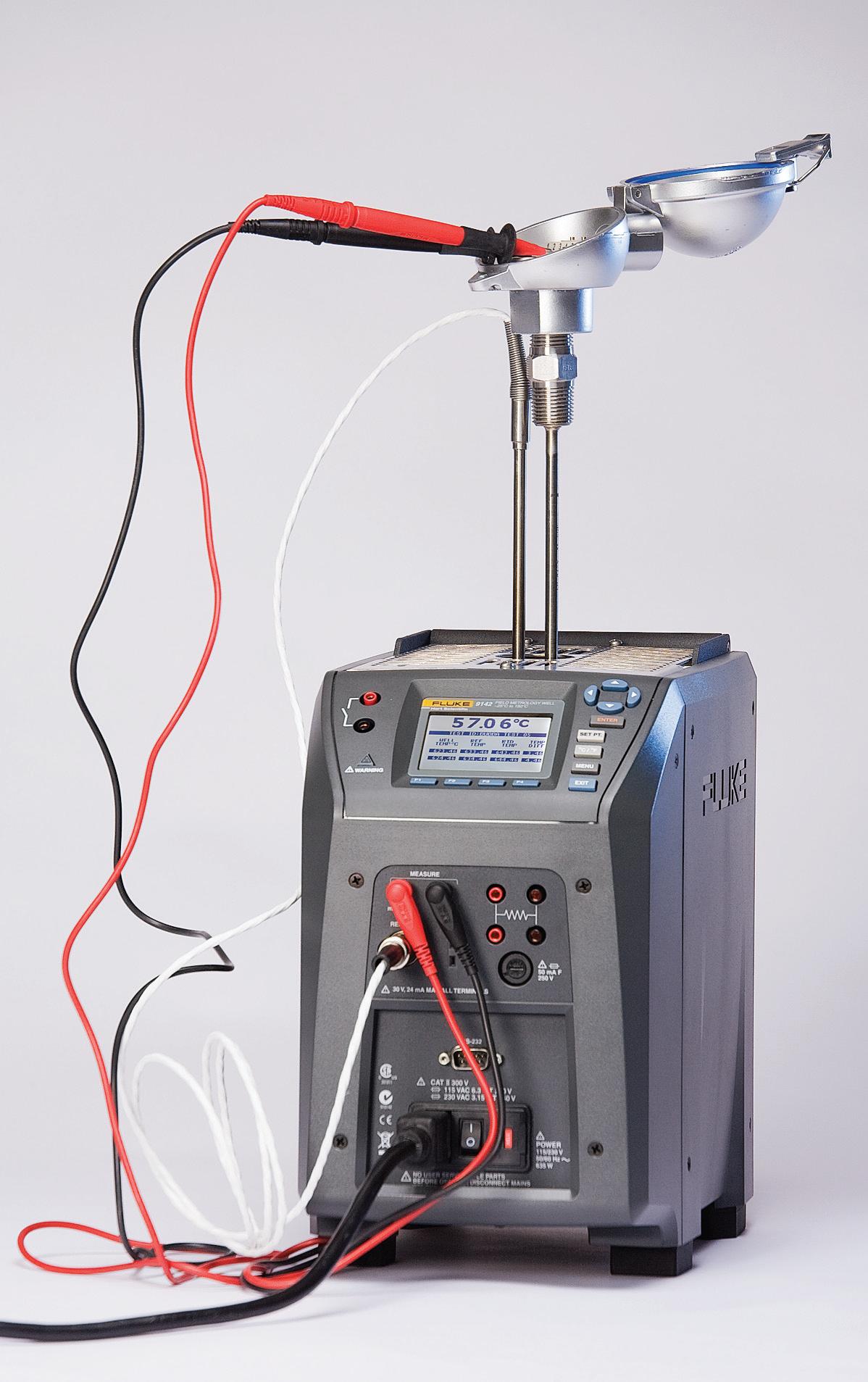

Baie portabila calibrare temperatura -25°C..150°C Hart Scientific 9142

Cod: Hart Scientific 9142




Brosura produs PDF, 3 Mb


Descriere

  • -25 °C to 150 °C (-13 °F to 302 °F) Temperature Range at 23 °C
    Lightweight, portable, and fast
  • Cool to -25 °C in 15 minutes
  • Built-in two-channel readout for PRT, RTD, thermocouple,
  • 4-20 mA current
  • True reference thermometry with accuracy to ± 0.01 °C
  • On-board automation and documentation
  • Metrology performance in accuracy, stability, uniformity, and loading


Optiuni recomandate

9142-X

Field Metrology Well, -25 °C to 150 °C, w/9142-INSX

9142-X-P

Field Metrology Well, -25 °C to 150 °C, w/9142-INSX, w/Process Electronics

X in the above model numbers to be replaced with A, B, C, D, E, or F as appropriate for the desired insert. See the inserts illustration and listing below.

9142-INSA

Insert "A" 9142, Imperial Misc Holes

9142-INSB

Insert "B" 9142, Imperial Comparison Holes

9142-INSC

Insert "C" 9142, 0.25-inch Holes

9142-INSD

Insert "D" 9142, Metric Comparison Holes

9142-INSE

Insert "E" 9142, Metric Misc Holes w/0.25-inch Hole

9142-INSF

Insert "F" 9142, Metric Comparison Misc Holes w/0.25-inch Hole

9142-INSZ

Insert "Z" 9142, Blank
