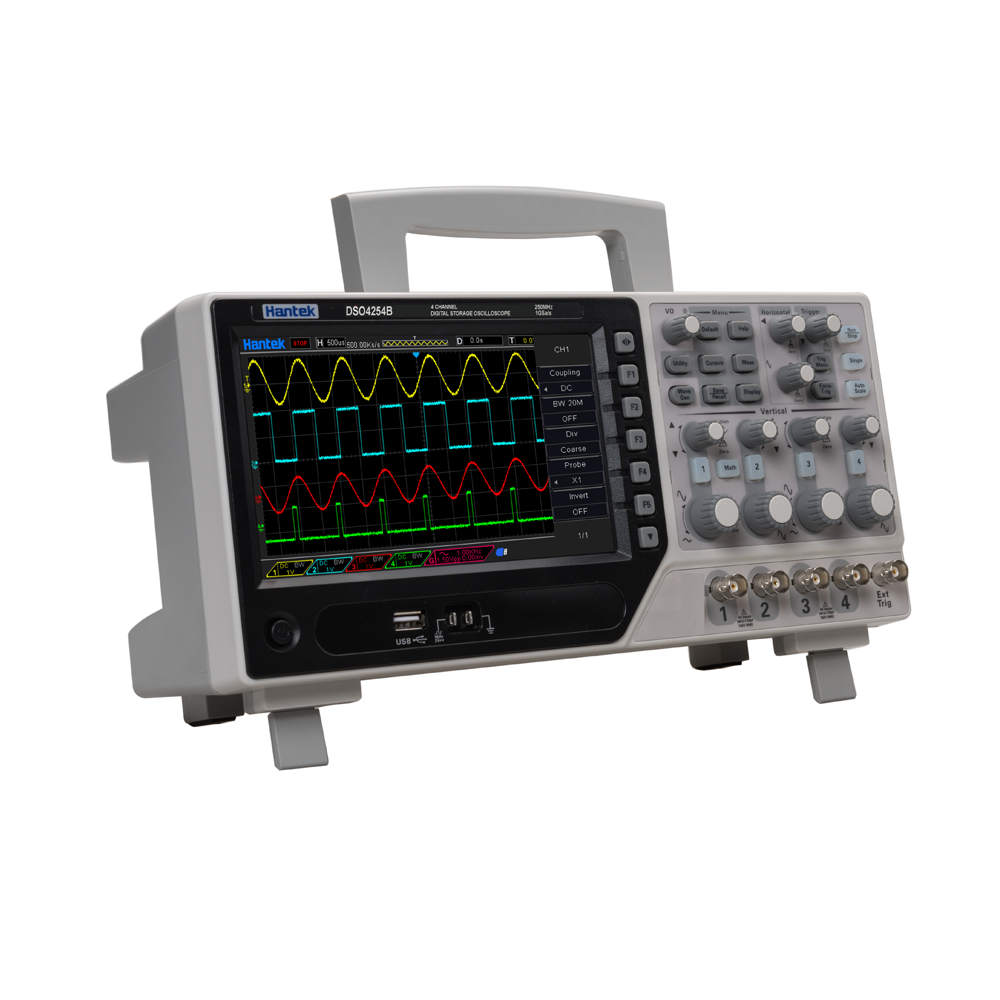

Hantek DSO4004B Osciloscoape digitale de banc

Cod: Hantek DSO4004B Series




Brosura produs PDF, 2.24 Mb

Descriere

4CH oscilloscope, with 1CH Arbitary/function waveform generator, independent keys of oscilloscope and waveform generator which is easy to operate at the same time.. 80-250MHz bandwidth, minimum measurement range 500μV /div,1GS/s sample rate,advanced digital trigger system, high trigger sensitivity, low trigger jitter,high resolution 7 inch 64K color TFT(800*480)





Features:

  • 4CH oscilloscope+EXT+DVM+auto range function
  • 80-250MHz bandwidth,minimum range 500μV /div,1GS/s sample rate.
  • Over 32 types of auto measurement function
  • Advanced digital trigger system, high trigger sensitivity.
  • Over 14 types of trigger function: edge, overtime, pulse, pattern, interval, etc.
  • Serial bus triggering and decode,  Bus protocol information can be quickly and intuitively displayed in table form.
  • Integrated USB Host/Device, convenient to communicate with PC. Support U-stick storage/systerm update.
  • Support a variety of SCPI remote control command
  • Support optional RS232 port, LAN port. (Optional)
  • Stable and reliable quality, sturdy and durable.
