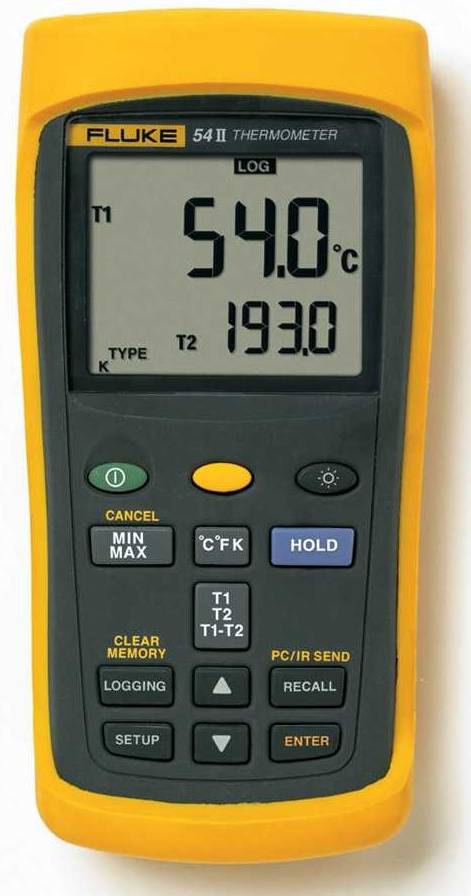

Termometre digitale portabile cu contact Fluke Seria 50 II

Cod: Fluke 51 II, 52 II, 53 II, 54 II




Brosura produs PDF, 0.12 Mb

Descriere

Fluke 50 Series II products features:



  • Relative time clock on MIN, MAX, and AVG provides a time reference for major events
  • Electronic Offset function allows compensation of thermocouple errors to maximize overall accuracy
  • Measures J, K, T, and E-types of thermocouples
  • Readout in C, F, or Kelvin (K)
  • Splash and dust resistant case protected by impact absorbing holster
  • User-friendly front panel is easy to set up and operate
  • Sleep mode increases battery life; typical 1000-hour battery life
  • Battery door allows easy battery replacement without breaking the calibration seal
  • Optional ToolPak accessory allows the thermometer to hang from any metal object (with the rare earth magnet) or secure around a pipe (with hook-and-loop straps) for hands-free operation.
  • 3 year warranty



The Fluke 53 II B and 54 II B include all the features listed above plus:

  • Large backlit dual display shows any combination of T1, T2 (52 and 54 only), T1-T2 (52 and 54 only), plus MIN, MAX, or AVG.
  • Additional thermocouple types R, S, and N (for a total of 7 different types)
  • Recall function allows logged data to be easily reviewed on the meter display
  • USB communication port allows data to be exported to optional FlukeView Forms® Temperature PC software for further analysis and graphing
  • Data Logging up to 500 points of data with user adjustable recording interval


Accesorii standard

Fluke 51 II

Single Input Digital Thermometer including:

  • Impact absorbing holster
  • One 80PK-1 bead probe thermocouple

Fluke 52 II

Dual Input Digital Thermometer including:

  • Impact absorbing holster
  • Two 80PK-1 beaded probe thermocouples

Fluke 53 II

Single Input Digital Thermometer with data logging including:

  • Impact absorbing holster
  • One 80-PK-1 bead probe thermocouple

Fluke 54 II

Dual Input Digital Thermometer including:

  • Impact absorbing holster
  • One 80-PK-1 bead probe thermocouple



Optiuni recomandate

Temperature

700TC2

700TC2 Thermocouple Plug Kits (5 types)

80CJ-M

80CJ-M Male Mini Connectors (Type J)

80CK-M

80CK-M Male Mini Connectors (Type K)

80PJ-EXT

80PJ-EXT Extension Wire Kit (Type J)

80PK-1

80PK-1 Bead Probe (Type K)

80PK-22

80PK-22 Immersion Probe

80PK-24

80PK-24 Air Probe

80PK-25

80PK-25 Piercing Probe

80PK-26

80PK-26 General Purpose Probe

80PK-27

80PK-27 Industrial Surface Probe

80PK-3A

80PK-3A Surface Probe (Type K)

80PK-8

80PK-8 Pipe Clamp Temperature Probe (Type K)

80PK-EXT

80PK-EXT Extension Wire Kit (Type K)

80PT-EXT

80PT-EXT Extension Wire Kit (Type T)



Cases and Holsters

C101

C101 Hard Case

C50

C50 Soft Meter Case

C510

C510 Leather Meter Case

C550

C550 Tool Bag

CXT170

CXT170 Extreme Case

TPAK

TPAK ToolPak, Meter Hanging Kit



Software
FlukeView Forms Software with cable
