Cleste powermetric cu Analizor putere Fluke 345

Cod: Fluke 345




Brosura produs PDF, 0.38 Mb

Descriere

  • AC/DC current: Clamp-on measurement of ac current up to 1400 A rms and dc current up to 2000 A without breaking the circuit
  • Highest safety rating: 600 V CAT IV power analyzer is rated for use at the service entrance
  • Accurate in noisy environments: Clamp meter performs even with distorted waveforms present on electronic loads with low-pass filter
  • Data logging: Identify intermittent faults by logging any power quality parameter for minutes, or over a month, including harmonics
  • Verify batteries: Direct measurement of dc ripple (%) for battery and dc systems
  • Troubleshoot harmonics: Analyze and log harmonics digitally or graphically
  • Inrush current: Capture and analyze nuisance tripping, from 3 seconds to 300 seconds
  • Easy to use: Easily confirm power meter setup with large backlit color display of waveforms and trends
  • 3-Phase power: Built in capability for balanced loads
  • View graphs and generate reports: Use power analyzer with included Power Log software


Accesorii standard

  • 345 Power Quality Clamp Meter
  • Soft carrying case
  • Power Log software
  • Test leads
  • Alligator clips
  • Test probes
  • USB cable
  • International ac adapter / battery eliminator
  • Printed English language user manual
  • Multi-language manual CD


Optiuni recomandate

  • AC220 SureGrip™ Alligator Clip Set
  • TLK291  Fused test probe set
  • TP1  Slim Reach Test Probe (flat blade)
  • TP220  SureGrip™ Industrial Test Probes


Alte produse FLUKE

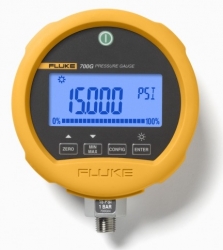

MANOMETRU PRESIUNE FLUKE 700G DIGITAL DE PRECIZIE

• Precision pressure measurement from -20 mbar to 690 bar
• Absolute pressure measurement ranges 15, 30, 100, 300 psia
• Accuracy to 0.05 % of full scale
• Reference class gauge accuracies to 0.04 % of reading
• Easy to use, rugged construction for reliable performance



CALIBRATOR MULTIFUNCTIONAL DE PROCES FLUKE 741B

• 0 to 300 V DC/AC Voltage measure
• 0 to 15 V DC Voltage source / simulate
• 0 to 110 mA DC Current measure
• 0 to 22 mA DC Current source / simulate
• 0 to 11 kO Resistance measure / source / simulate
• 1 to 50 kHz Frequency measure / source / simulate



MULTIMETRU DIGITAL PORTABIL 4.5 DIGIT FLUKE 87V

• 4.5 digit
• 20,000 count resolution for precise measurements
• 0.05% basic accuracy
• True-rms ac voltage and current for accurate measurements on non linear signals
• Selectable filter for accurate voltage and frequency measurements on motor drives
• Built in thermometer lets you carry one less tool (TC probe included)



MEGOHMETRU DIGITAL MULTIMETRU IZOLATIE 50/ 1000V FLUKE 1507

• Insulation test range: 0.01 MO to 10 GO
• Insulation test voltages: 50 V, 100 V, 250 V, 500 V, 1000 V



FLUKE 700G/TRACK SOFTWARE DATALOGGING PENTRU INREGISTRARE PRESIUNE CU MANOMETRELE 700G

• Use with 700G Series gauges to perform real time data logging to a PC
• Download logging configurations to the 700G Series gauges for a remote logging event
• Configure logging event reading rate, duration and measurement units
• Upload measurements logged remotely and display or export measurements
• Includes communication cable for connection to a PC



CLESTE AMPERMETRIC DE CURENT 400A FLUKE 322

• Measures AC current to 400 A with 0.1 A resolution
• Measures AC current to 40 A with 0.01 A resolution, precise low current measurements
• Measures AC volts to 600 V, with 0.1 V resolution to 400.0 V
• Measures DC volts to 600 V, with 0.1 resolution to 400.0 V
• Resistance measurement to 400 O
• Precise measurements with 1.8% basic accuracy

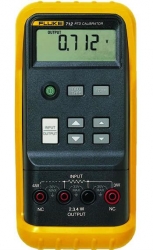

CALIBRATOR TERMOREZISTENTE FLUKE 712B

• measure and simulate (13) different RTD types and resistance
• Measure 4 to 20 mA signals while simultaneously sourcing a temperature signal
• Configurable 0 % and 100 % source settings for quick 25 % linearity checks
• Linear ramp and 25 % step auto ramp based on 0 % and 100 % settings
• Dual inputs and backlit display for easy interpretation of measurements
• Power down settings remembered at power up for easy restart of tests
• 1-year and 2-year specifications and traceable certification of calibration



ANALIZOR TRIFAZAT îNREGISTRARE ENERGIE FLUKE 1730

• Masuratori cheie: Tensiunea, curentul, puterea, factorul de putere si valorile associate
• Ecran tactil color, luminous
• Doua porturi USB
• Dimensiuni compacte
• Software pentru aplicatia de analizare a energiei


FLUKE TIS60 CAMERA DE TERMOVIZIUNE 260X195

• Fluke TiS10 80x60 pixels
• Fluke TiS20 120x90 pixels
• Fluke TiS40 160x120 pixels
• Fluke TiS45 160x120 pixels
• Fluke TiS50 220x165 pixels
• Fluke TiS55 220x165 pixels
• Fluke TiS60 260x195 pixels
• Fluke TiS65 260x195 pixels



MULTIMETRU DIGITAL PORTABIL 3.75 DIGIT FLUKE 83V

• 3.75 digit
• 6000 count resolution
• 0.1% basic accuracy
