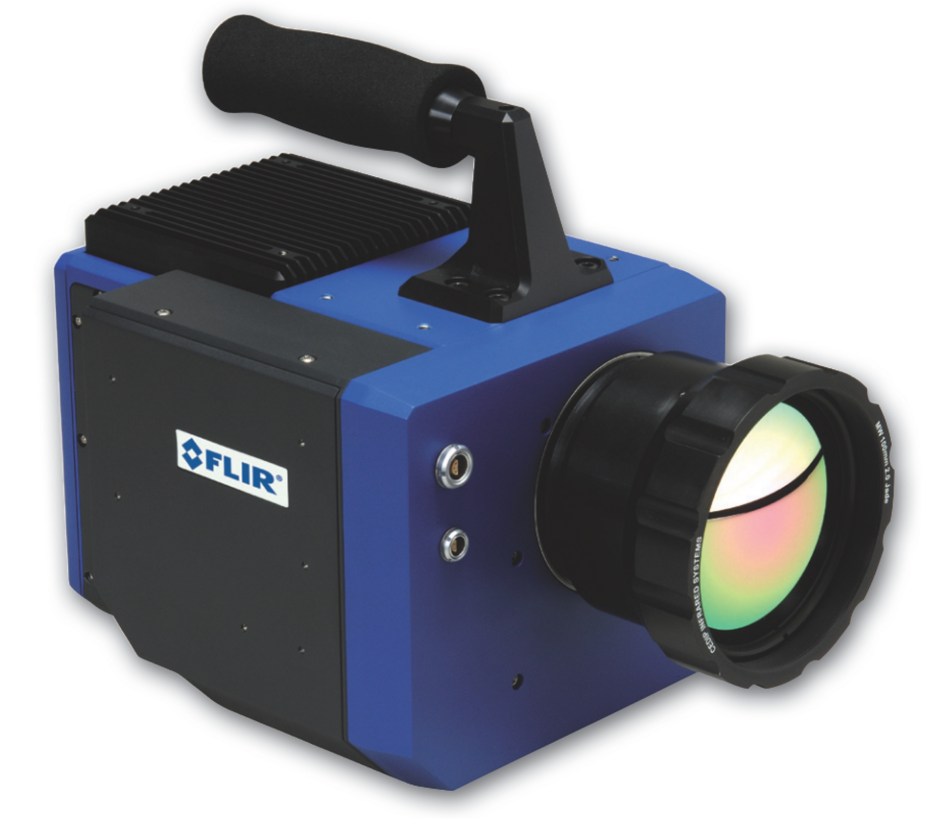

Camera termoviziune multispectru Flir Orion SC7000
PRODUS OBSOLET ( * SCOS DIN UZ )

Cod: Flir Orion SC7000




Descriere

The FLIR SC7000 Orion Series are infrared multispectral imagers capable of producing IR sub-band images at video rates within the SW-MWIR or LWIR region. Infrared radiation from the scene under investigation is collected through a front lens, designed to offer minimal aberration across the full IR wavelength range.



Configurable filter wheel setup to match different type of analysis
The Orion integrates a high speed 2x4 position filter wheel. It is inserted between the lens and the focal plane. The rotation of this filter wheel is driven synchronously with the     FPA clocking, such that a single image snap shot is obtained for each particular filter position.



Versatile system with traditional thermal imaging camera mode
The Orion SC7000 is capable of capturing up to 400 frames per second in 320 x 240 pixels, each high quality image being captured in snap-shot mode. The integration time is variable by software and can be different for each filter. An image is captured for each given position of the filter wheel, providing true multispectral imaging. The Orion SC7000 Series can also be used as a normal IR camera at full speed by removing or stopping the filter wheel. In addition to image acquisition, ALTAIR software also processes the acquired image data.







FLIR Orion SC7000 Specifications





ORION 7200-7500 / 7900VL

ORION 7600

Imaging performance

Sensor type

InSb / MCT

InSb

Pixel Resolution

320x256

640x512

Pixel Pitch

30µm

15µm

Spectral ranges

1.5 - 5.1 µm for InSb (BB)

1.5 - 5.1 µm for InSb (BB)



7.7 - 11.5 µm for SC7900VL









Measurement

NETD

<20mk for InSb / <25mk for MCT

<20mk

Standard Camera Calibration Range

5ºC to 300ºC for InSb 5ºC to 150ºC for MCT

5ºC to 300ºC for InSb

Optional Camera Calibration Range

-20°C to 300ºC / -20ºC to 150ºC
5ºC to 1500ºC / 5ºC to 150ºC
up to 2500ºC / up to 1.500°C
up to 3000ºC (for InSb only)

-20°C to 300ºC
5ºC to 1500ºC
up to 2500ºC
up to 3000ºC

Digital Full Frame rate

InSb: 170 Hz - 380 Hz full frame
up to 11 kHz - 31.8 KHz with windowing
MCT: 230 Hz full frame
up to 25 kHz with windowing
Limited to 400Hz in ORION mode

InSb: 100 Hz full frame
up to 3.425 kHz with windowing
Limited to 400 Hz in ORION mode







Interfaces

Available optics

SWB 25mm - 22°x 17° - 27mm - 20°x 16° in SWB
50mm - 11°x 8.8°
100mm - 5.5°x 4.4°
200mm - 2.75°x 2.2°
MWB & LWB
12mm - 44°x 36°
25mm - 22°x 17°
50mm - 11°x 8.8°
100mm - 5.5°x 4.4°
200mm - 2.75°x 2.2°
Close up x1 - 9.6x7.7mm
Close up x3 - 3.2x2.6mm
Close up x1 - 9.6x7.7mm Working distance 300mm (not available in LWB)

SWB
12mm - 44°x 36°
25mm - 22°x 17°
50mm - 11°x 8.8°
100mm - 5.5°x 4.4°
200mm - 2.75°x 2.2°
Close up x1 - 9.6x7.7mm
Close up x3 - 3.2x2.6mm
Close up x1 - 9.6x7.7mm WD 300mm



General

Imaging performance

Waveband

MW

Dynamic Range

14 bit, 16 bit with TRE

Camera Temp Calibration

Yes

Ambient Drift Compensation

Yes

Temp. Measurement Accuracy

+/-1% or +/-1°C

Hypercal / CNUC Functionality

Yes



Interfaces

Analog Input

Yes

Analog Video

Composite or S-Video

Digital Data Output

GigE, Camera Link

Command & Control

GigE, Camera Link

FPA Windowing

Arbitrary Size and Location

f/#

f/3.0 for InSb and f/2.0 for MCT

Filter Options

High speed 8 filters wheel with rotation driven synchronously with FPA clocking. 400 Hz max.



Focus

Motorised Focus

Optional

Auto Focus

Optional

Built-in IRIG-B timing

Optional

Triggering Options

Yes

SDK Support

Yes

Lab View Compatibility

Yes

Matlab Compatibility

Yes



Alte produse FLIR

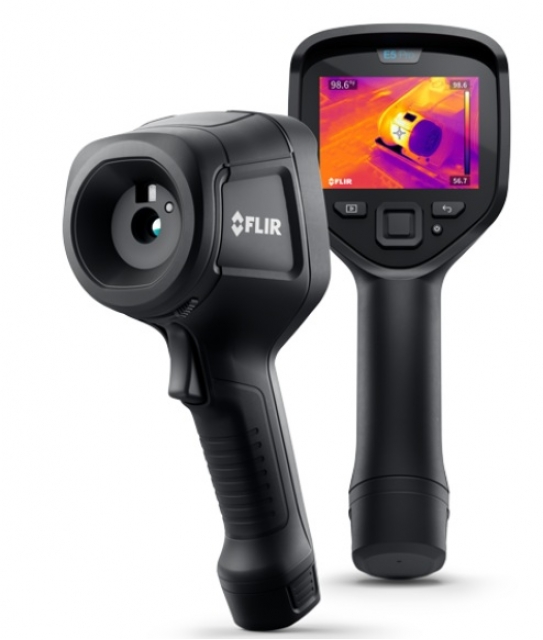

FLIR E5-PRO CAMERA TERMICA INFRARED

• Rezoluție termică 160 × 120
• Măsoară temperaturi de până la 400°C (752°F)
• Sensibilitate termică <60 mK

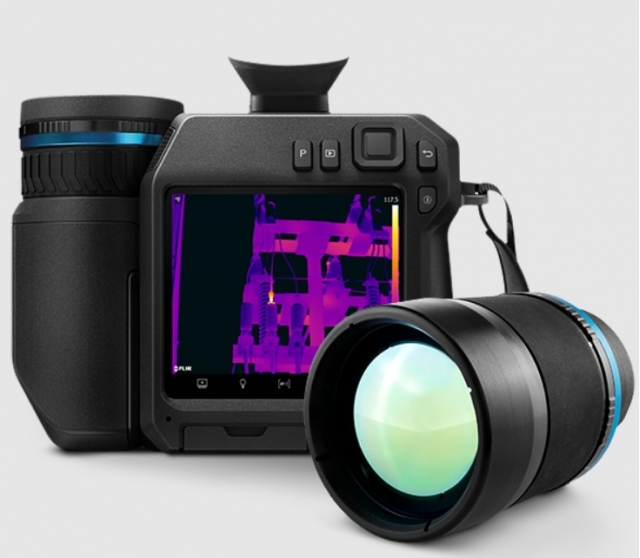

FLIR T840 CAMERA TERMOVIZIUNE 464X368

• Rezoluție termică de 464 × 348
• Măsoară temperaturi de până la 2000°C (3632°F)
• Contrast reglabil cu o singură atingere pentru nivel/interval



FLIR I64 CAMERA TERMOVIZIUNE INFRAROSU 480X640PXL

• Cameră de termoviziune cu funcție de aplicație
• Rezoluție termică de 480 × 640
• <40 mK NETD

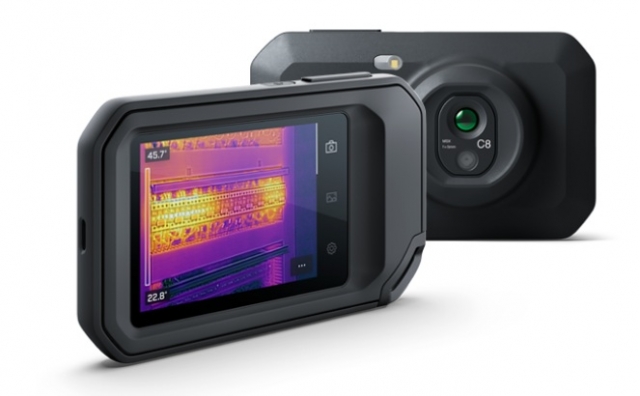

FLIR C8 CAMERA INFRAROSU COMPACTA

• Rezoluție termică 320 × 240
• Măsoară temperaturi de până la 450°C (842°F)
• Contrast reglabil cu o singură atingere pentru nivel/interval



FLIR T1020 CAMERA TERMOVIZIUNE HD 1024X768

• Rezoluție termică 1024 × 768
• Măsoară temperaturi de până la 2000°C (3632°F)
• <20 mK NETD



FLIR I35 CAMERA INFRAROSU CU APLICATIE SI LTE 240X320PXL

• Cameră de termoviziune cu funcție LTE, activată prin aplicație
• Rezoluție termică de 240 × 320
• <40 mK NETD

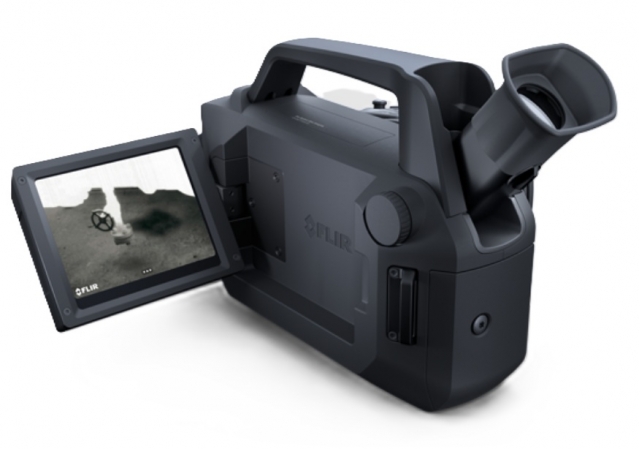

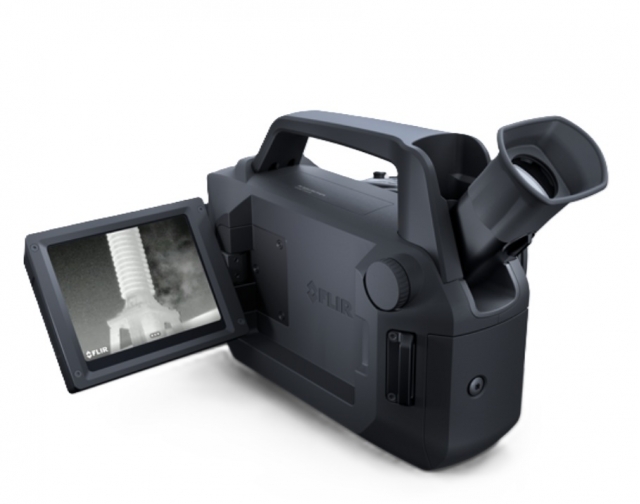

FLIR G346 CAMERA TERMOVIZIUNE INFRAROSU DETECTIE EMISII MONOXID DE CARBON CO OXID DE AZOT N2O

• FLIR G346 este o cameră inovatoare de imagistică a gazelor (OGI)
• utilizată pentru a detecta monoxidul de carbon (CO), oxidul de azot (N₂O) și alte gaze periculoase și dăunătoare mediului în fabricile de oțel și instalațiile industriale de producție.

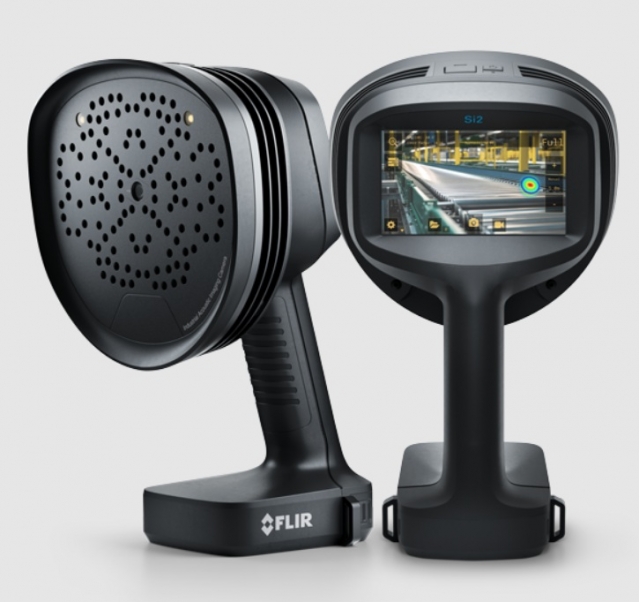

FLIR SI2-PD CAMERA ACUSTICA PENTRU DETECTIE SCAPARI PARTIALE

• Detectează, localizează, clasifică și evaluează defectele de descărcare parțială (PD) de la până la 200 m (656 ft) distanță
• Identifică PD de 30 de ori mai mici ca niciodată
• Evaluarea severității problemelor PD, bazată pe cameră și pe software și clasificarea tipului de PD oferă cel mai bun suport decizional din clasa sa
• Operare cu o singură mână cu reglare automată, zoom 8x, o cameră digitală de 12 MP și clasificare IP54

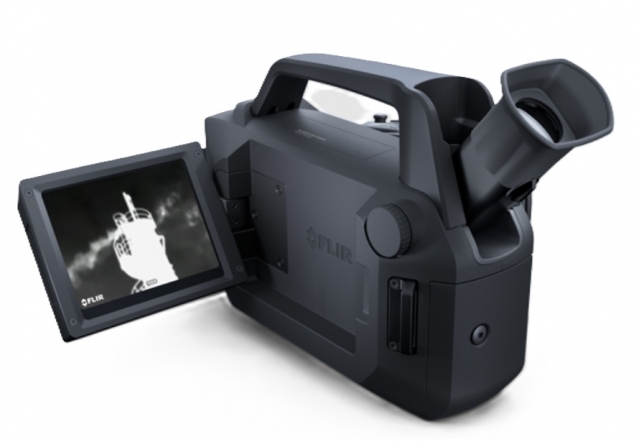

FLIR G304 CAMERA TERMICA DETECTIE EMISII HIDROFLUOROCARBURI AGENTI FRIGORIFICI GAZE INDUSTRIALE UZINE CHIMICE
