Cod: Flir A315 A615
Descriere

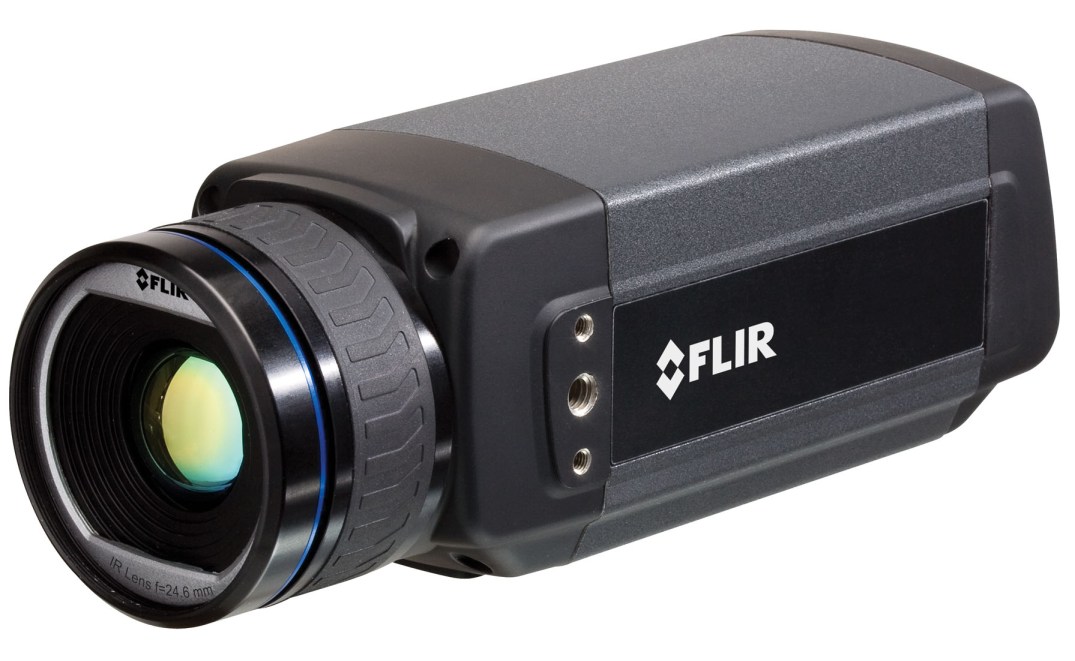

FLIR A315 / A615
The information below outlines key features that contribute to FLIR A-Series infrared cameras world class performance.
GigE Vision™ standard compatibility
An industry first. GigE Vision is a new camera interface standard developed using the Gigabit Ethernet communication protocol. GigE Vision is the first standard to allow for fast image transfer using low cost standard cables even over long distances. With GigE Vision, hardware and software from different vendors can interoperate seamlessly over GigE connections.
GenICam™ protocol support
An industry first. The goal of GenICam is to provide a generic programming interface for all kinds of cameras. Regardless of interface technology (GigE Vision, Camera Link, 1394 DCAM, etc.) or features implemented, the application programming interface (API) will always be the same. The GenICam protocol also makes third party software being possible to use with the camera.
640x480 pixels (only FLIR A615)
The FLIR A615 has a resolution pixel detector of 640x480 pixels that allows more accuracy and shows more details at a longer distance.
High speed infrared windowing (only FLIR A615)
The FLIR A615 has a high speed infrared windowing option.
Image flow control
Let an external signal control the image streaming.
High sensitivity < 50 mK
< 50 mK thermal sensitivity captures the finest image details and temperature difference information.
Built-in Gigabit Ethernet connection
Real time 16-bit image streaming to computer.
Lens (only FLIR A315)
Built-in 25 degree lens with both motorized focus and autofocus. Optional lenses available.
FLIR A315 / A615 Technical Specifications
Camera specific
|
|
FLIR A315 |
FLIR A615 |
|
Imaging and optical data | ||
|
Spatial resolution (IFOV) |
1.36 mrad |
0.69 mrad |
|
Focal length |
18 mm |
24.5 mm |
|
F-number |
1.3 |
1.0 |
|
Image frequency |
60 Hz |
50 Hz (100/200 Hz with windowing) |
|
|
|
|
|
Detector data | ||
|
IR resolution |
320 × 240 pixels |
640 × 480 pixels |
|
Detector pitch |
25 µm |
17 µm |
|
Detector time constant |
Typical 12 ms |
Typical 8 ms |
|
|
|
|
|
Measurement | ||
|
Object temperature range |
-20 to +120°C |
-20 to +150°C |
|
|
|
|
|
USB | ||
|
USB |
N/A |
Control and image |
|
USB, standard |
N/A |
USB 2 HS |
|
USB, connector type |
N/A |
USB Mini-B |
|
USB, communication |
N/A |
TCP/IP socket-based FLIR proprietary |
|
USB, image streaming |
N/A |
16-bit 640 × 480 pixels at 25 Hz |
|
USB, protocols |
N/A |
TCP, UDP, SNTP, RTSP, RTP, HTTP, ICMP, IGMP, ftp, SMTP, SMB (CIFS), DHCP, MDNS (Bonjour), uPnP |
|
|
|
|
|
Ethernet | ||
|
Ethernet, image streaming |
16-bit 320 × 240 pixels at 60 Hz |
16-bit 640 × 480 pixels at 50 Hz |
General
|
Imaging and optical data | |||||||||||
|
Field of view (FOV) / Minimum focus distance |
25° × 18.8° / 0.4 m | ||||||||||
|
Lens identification |
Automatic | ||||||||||
|
Thermal sensitivity/NETD |
< 0.05°C @ +30°C / 50 mK | ||||||||||
|
Focus |
Automatic or manual (built in motor) | ||||||||||
|
|
| ||||||||||
|
Detector data | |||||||||||
|
Focal Plane Array (FPA) / Spectral range |
Uncooled microbolometer / 7.5-13 µm | ||||||||||
|
|
| ||||||||||
|
Measurement | |||||||||||
|
Accuracy |
±2°C or ±2% of reading | ||||||||||
|
|
| ||||||||||
|
Measurement analysis | |||||||||||
|
Atmospheric transmission correction |
Automatic, based on inputs for distance, atmospheric temperature and relative humidity | ||||||||||
|
Optics transmission correction |
Automatic, based on signals from internal sensors | ||||||||||
|
Emissivity correction |
Variable from 0.01 to 1.0 | ||||||||||
|
Reflected apparent temperature correction |
Automatic, based on input of reflected temperature | ||||||||||
|
External optics/windows correction |
Automatic, based on input of optics/window transmission and temperature | ||||||||||
|
Measurement corrections |
Global object parameters | ||||||||||
|
|
| ||||||||||
|
Ethernet | |||||||||||
|
Ethernet |
Control and image | ||||||||||
|
Ethernet, standard |
IEEE 802.3 | ||||||||||
|
Ethernet, connector type |
RJ-45 | ||||||||||
|
Ethernet, type |
Gigabit Ethernet | ||||||||||
|
Ethernet, communication |
TCP/IP socket-based FLIR proprietary and GenICam protocol | ||||||||||
|
Ethernet, protocols |
TCP, UDP, SNTP, RTSP, RTP, HTTP, ICMP, IGMP, ftp, SMTP, SMB (CIFS), DHCP, MDNS (Bonjour), uPnP | ||||||||||
|
|
| ||||||||||
|
Digital input/output | |||||||||||
|
Digital input |
2 opto-isolated, 10-30 VDC | ||||||||||
|
Digital output, purpose |
Output to ext. device (programmatically set) | ||||||||||
|
Digital output |
2 opto-isolated, 10-30 VDC, max 100 mA | ||||||||||
|
Digital I/O, isolation voltage |
