Cod: Flir A300 A310
Descriere

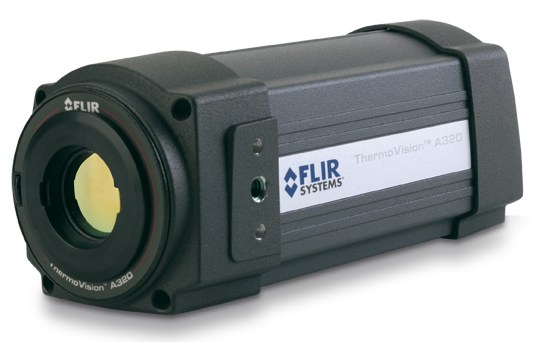

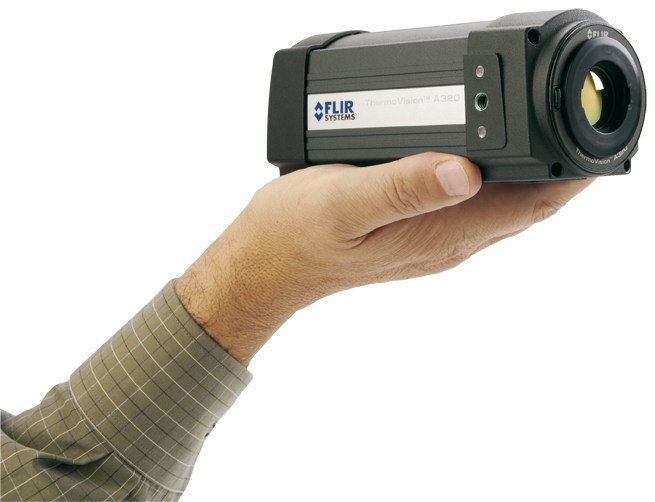

FLIR A300/A310
The information below outlines key features that contribute to FLIR A-Series infrared cameras world class performance.
Built-in extensive analysis functions (only FLIR A310)
Spot, area measurement and difference temperature functions.
Built-in alarm functions (only FLIR A310)
As function of analysis, internal temperature or digital input.
Ethernet/IP and Modbus TCP compliance (only FLIR A310)
Easy sharing of analysis, alarm results to PLC:s.
Messaging functionality (only FLIR A310)
The camera automatically sends analysis results, IR images and more as an e-mail on schedule or at alarm. Autonomous dispatch of files or e-mails, acting as an FTP- or SMTP-client.
Image masking functionality (only FLIR A310)
Select only the relevant part of the image for your analysis.
MPEG-4 streamed video
MPEG-4 streamed video output over Ethernet to show live images on a PC, 640x480 with overlay up to 30 Hz, system dependent.

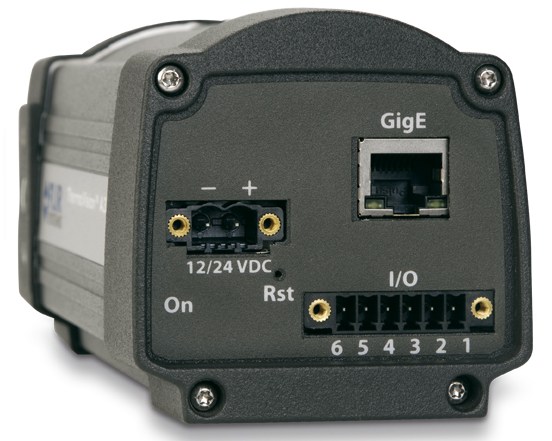

PoE (Power over Ethernet)
Communication and power supplied with only one cable.
Digital inputs/outputs (only FLIR A310)
For alarms and control of external equipment.
IR monitor software
In house developed software with support to up to nine cameras simultaneously.
Video output
Composite video output, PAL and NTSC compatible.
Lens
Built-in 25 degree lens with both motorized focus and autofocus. Optional lenses available.
High sensitivity < 50 mK
< 50 mK thermal sensitivity captures the finest image details and temperature difference information.
Remote control
Remote control of the camera over the Web and TCP/IP protocol.
16 bit image
16 bit image transfer to PC for analysis.
Built-in 100 Mb Ethernet connection
100 Mb Ethernet.
FLIR A300 / A310 Technical Specifications
|
|
FLIR A300 |
FLIR A310 |
|
Measurement analysis | ||
|
Spotmeter |
N/A |
10 |
|
Area |
N/A |
10 boxes with max./min./average/position |
|
Isotherm |
N/A |
1 with above/below/interval |
|
Measurement option |
N/A |
Measurement Mask Filter Schedule response: File sending (ftp), email (SMTP) |
|
Difference temperature |
N/A |
Delta temperature between measurement functions or reference temperature |
|
Reference temperature |
N/A |
Manually set or captured from any measurement function |
|
Atmospheric transmission correction |
N/A |
Automatic, based on inputs for distance, atmospheric temperature and relative humidity |
|
Optics transmission correction |
N/A |
Automatic, based on signals from internal sensors |
|
Emissivity correction |
N/A |
Variable from 0.01 to 1.0 |
|
Reflected apparent temperature correction |
N/A |
Automatic, based on input of reflected temperature |
|
External optics/windows correction |
N/A |
Automatic, based on input of optics/window transmission and temperature |
|
Measurement corrections |
N/A |
Global and individual object parameters |
|
|
|
|
|
Alarm | ||
|
Alarm functions |
N/A |
6 automatic alarms on any selected measurement function, Digital In, Camera temperature, timer |
|
Alarm output |
N/A |
Digital Out, log, store image, file sending (ftp), email (SMTP), notification |
|
|
|
|
|
Ethernet | ||
|
Ethernet |
Control and image |
Control, result and image |
|
Ethernet, protocols |
TCP, UDP, SNTP, RTSP, RTP, HTTP, ICMP, IGMP, ftp, SMTP, SMB (CIFS), DHCP, MDNS (Bonjour), uPnP |
Ethernet/IP, Modbus TCP, TCP, UDP, SNTP, RTSP, RTP, HTTP, ICMP, IGMP, ftp, SMTP, SMB (CIFS), DHCP, MDNS (Bonjour), uPnP |
|
Ethernet, image streaming |
16-bit 320 x 240 pixels at 3 Hz |
16-bit 320 x 240 pixels at 7-8 Hz |
General
|
Imaging and optical data | |||||||||
|
Field of view (FOV) / Minimum focus distance |
25° × 18.8° / 0.4 m | ||||||||
|
Lens identification |
Automatic | ||||||||
|
Thermal sensitivity/NETD |
< 0.05°C at +30°C / 50 mK | ||||||||
|
Focus |
Automatic or manual (built in motor) | ||||||||
|
F-number |
1.3 | ||||||||
|
Image frequency |
30 Hz | ||||||||
|
Zoom |
1-8× continuous, digital, interpolating zooming on images | ||||||||
|
|
| ||||||||
|
Detector data | |||||||||
|
IR resolution |
320 × 240 pixels | ||||||||
|
Detector pitch |
25 µm | ||||||||
|
Detector time constant |
Typical 12 ms | ||||||||
|
Focal Plane Array (FPA) / Spectral range |
Uncooled microbolometer / 7.5-13 µm | ||||||||
|
|
| ||||||||
|
Measurement | |||||||||
|
Object temperature range |
-20 to +120°C | ||||||||
|
Accuracy |
±2°C or ±2% of reading | ||||||||
|
|
| ||||||||
|
Set-up | |||||||||
|
Color palettes |
Color palettes (BW, BW inv, Iron, Rain) | ||||||||
|
Set-up commands |
Date/time, Temperature°C | ||||||||
|
|
| ||||||||
|
Storage of images | |||||||||
|
Image storage type |
Built-in memory for image storage | ||||||||
|
File formats |
Standard JPEG, 16-bit measurement data included | ||||||||
|
|
| ||||||||
|
Composite video | |||||||||
|
Video |
Composite video output, PAL and NTSC compatible | ||||||||
|
Video, standard |
CVBS (ITU-R-BT.470 PAL/SMPTE 170M NTSC) | ||||||||
|
|
| ||||||||
|
Digital input/output | |||||||||
|
Digital input |
2 opto-isolated, 10-30 VDC | ||||||||
