Camera termala infrarosu pentru navigatie cu instalare pe vapor Flir Seria M
PRODUS OBSOLET ( * SCOS DIN UZ )

Cod: Flir M-625L M-625XP M-324L M-324XP






Descriere

FLIR M-Series



M-Series Premium Multi-Sensor systems combining a thermal imaging and a low light camera The M-Series combines a thermal imaging camera with a low light camera. It provides crisp, clear thermal imagery in total darkness and light fog or smoke. Packaged in a small, ultra-compact gimbal it is designed for the most demanding maritime applications. The FLIR M-Series  is a perfect tool for night time navigation, shipboard security, man overboard situations, anti-piracy and many other applications. The FLIR M-Series is the standard for maritime thermal imaging systems against which all others are compared.





Thermal imaging camera and ultra-low light camera
The M-Series is equipped with both a thermal imaging camera and a low light camera.


Easy-to-use Pan/Tilt system
The M-Series come standard with a remote Joystick Control Unit (JCU) to operate the Pan/Tilt. Additional JCUs, which can be used to control the M-Series from different locations on board of a vessel, are optionally available. The JCU is the primary method of control for the M-Series camera. It can be used to move the camera (pan or tilt), electronically zoom the camera in and out, switch between the thermal imaging and low light camera, adjust the image quality, and access the on-screen menus.


The M-Series control panel is fully sealed for use in a maritime environment. Just like the camera itself it meets IP66 standards. The control knob provides precise proportional speed control. Use it to have the M-Series look in the exact direction you want. The JCU Puck functions like a joystick - it can be moved left or right, or fore and aft, and it can be rotated in either direction. It can also be pressed down (like a mouse click) or pulled up. It is used to move the Pan/Tilt position of the camera and to navigate through the on-screen menus.





FLIR M-Series



 M-Series systems use cutting-edge Ethernet connectivity for easy installation, control, and interface with other on-board electronics. The rugged, waterproof gimbal enclosure provides a continuous 360° pan and +/-90° tilt field of regard for horizon-to-horizon visibility.





M-Series thermal night vision systems are available with a variety of resolution and performance options:

*       Their thermal night vision cameras come in either 320 × 240 standard resolution, or 640 × 480 high-resolution format; higher resolution provides improved image detail and range performance.

*       All M-Series thermal cameras come with a 2× e-zoom function that lets you see farther at night; the high-resolution option provides an additional 4× e-zoom for even greater reach.

*       Installers can mount all M-Series gimbals in either ball-up or ball-down orientation.

*       The dual-payload M-Series incorporates an extreme lowlight micro-lux TV camera for improved visibility during twilight hours, and when operating in areas with some ambient light like intracoastal waterways and harbor entrances.







Joystick Control Unit
The ergonomic M-Series controller provides ready access to all critical system functions and smooth, effortless control, even in rough seas.

*       Heated LCD Screen - Provides instant display of system status.

*       User-programmable "hot key" - Lets operators have instant access to commonly-used functions.

*       Home - A programmable feature that lets operators define a Home position as a reference they can use when navigating for long periods.

*       Color - Different display settings let the operator choose between two black and white or three color display schemes that are easy on the eyes and help operators see better.

*       Scene - Provides a variety of pre-set gain and level adjustments so that operators can get the best image quality possible throughout a wide range of conditions.

*       Joystick - The sealed 8-way control knob provides precise control even in rough seas.

*       Ethernet connectivity - Lets you install multiple control stations around your vessel so you can control M-Series from anywhere you want on board.



FLIR M-Series



Thermal Imaging Specifications

M-625L

M-625XP

M-324L

M-324XP

Sensor Type

640 × 480 VOx Microbolometer

640 × 480 VOx Microbolometer

320 × 240 VOx Microbolometer

320 × 240 VOx Microbolometer

FOV

25° × 20° (NTSC)

25° × 20° (NTSC)

24° × 19° (NTSC)

24° × 19° (NTSC)

Focal Length

25 mm

25 mm

19 mm

19 mm

E-Zoom

2× & 4×

2× & 4×

2×

2×

Image Processing

FLIR DDE

FLIR DDE

FLIR DDE

FLIR DDE











Daylight Imaging Specifications

Detector Type

1/2" Interline Transfer Lowlight CCD

N/A

1/2" Interline Transfer Lowlight CCD

N/A

Lines of Resolution

768 (H) × 494 (V)

N/A

768 (H) × 494 (V)

N/A

Minimum Illumination

100 µlx (@ f/1.4)

N/A

100 µlx (@ f/1.4)

N/A

FOV

Matched to IR

N/A

Matched to IR

N/A











System Specifications

Size

178 mm dia. × 284 mm ht.

Weight

~ 9 lb

Pan/Tilt Coverage

360° Continuous Pan, +/-90° Tilt

Video Output

NTSC or PAL

Connector Types

BNC with BNC-to-RCA adapter included for video out

Power Requirements

12 VDC to 24 VDC (-10%/+30%)

Power Consumption

25 W nominal; 50 W max











Environmental

Operating temperature range

-25°C to +55°C

Storage temperature range

-40°C to +85°C

Automatic Window defrost

Standard

Sand/dust

Mil-Std-810E

Water Ingress

IPx6

Shock

15 g vertical, 9 g horizontal

Vibration

IEC 60945; MIL-STD-810E

Lightening Protection

Standard

Salt Mist

IEC60945

Wind

100 knot (115.2 mph)

EMI

IEC 60945





Range Performance



Accesorii standard

Standard Package
Camera head with 50 cm pigtails for power, analog video, and Ethernet; Joystick Control Unit; Operator Manual
Warranty
2 Year
Accessories
Dual Station JCU; Low Smoke, Zero Halogen Ethernet Cables; Standard cat 5e Ethernet cables; Top-down mounting riser







Alte produse FLIR

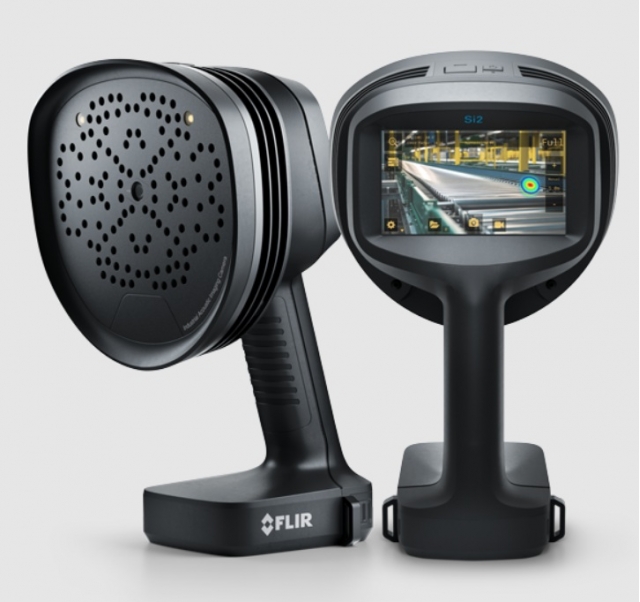

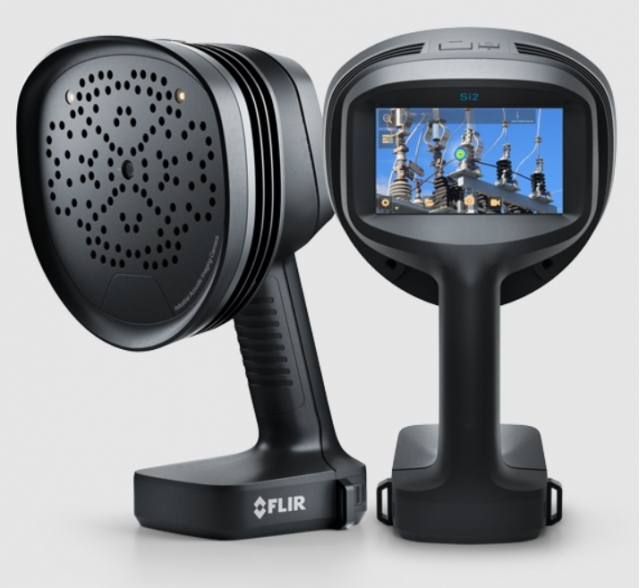

FLIR SI2-PD CAMERA ACUSTICA PENTRU DETECTIE SCAPARI PARTIALE

• Detectează, localizează, clasifică și evaluează defectele de descărcare parțială (PD) de la până la 200 m (656 ft) distanță
• Identifică PD de 30 de ori mai mici ca niciodată
• Evaluarea severității problemelor PD, bazată pe cameră și pe software și clasificarea tipului de PD oferă cel mai bun suport decizional din clasa sa
• Operare cu o singură mână cu reglare automată, zoom 8x, o cameră digitală de 12 MP și clasificare IP54

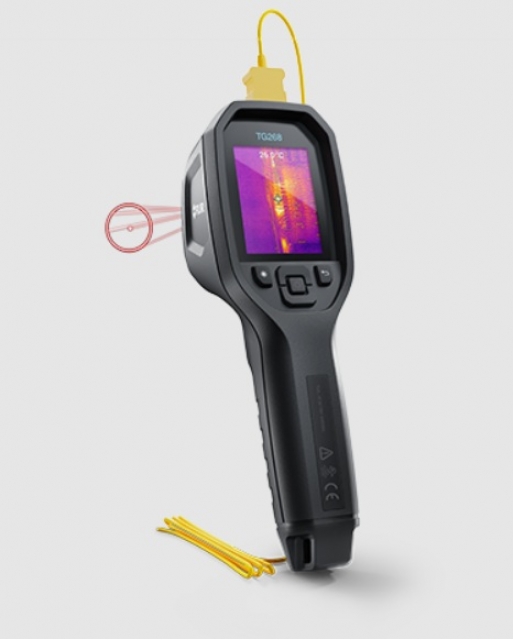

FLIR TG268 CAMERA INFRAROSU CU TERMOVIZIUNE

• Rezoluție termică 160 × 120
• -25°C până la 400°C (-13°F până la 752°F)
• Interpretați imaginile cu MSX®, care îmbunătățește imaginile termice cu detalii vizuale clare

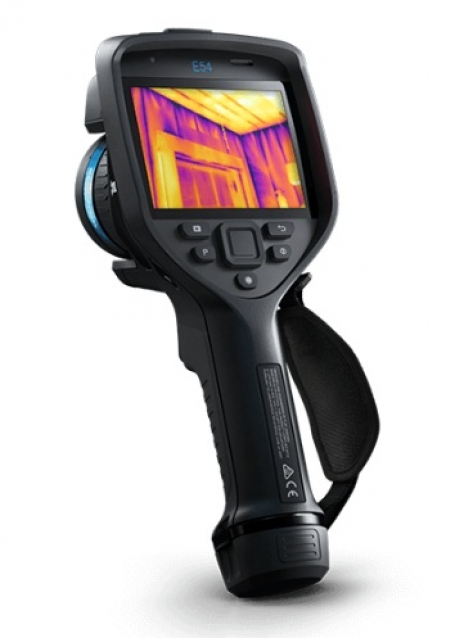

FLIR E54 CAMERA TERMICA 320X240PXL

• Imagini termice 320 × 240
• Măsoară temperaturi de până la 550°C (1022°F)
• Contrast reglabil cu o singură atingere pentru nivel/interval

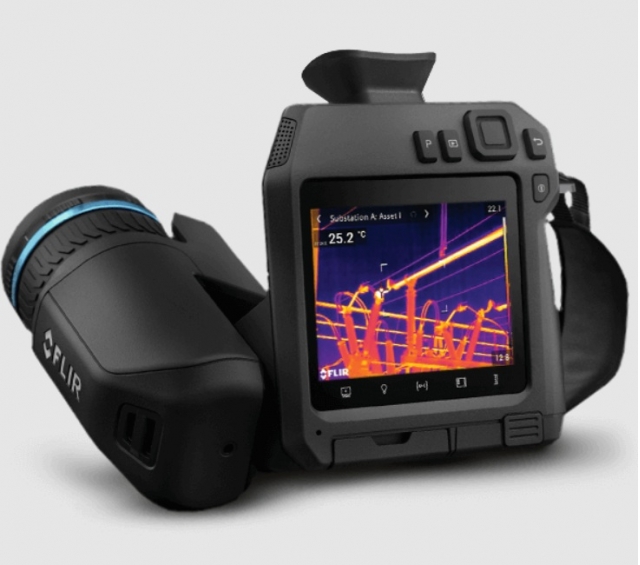

FLIR T865 CAMERA TERMICA INFRAROSU

• Rezoluție termică de 640 × 480
• Măsoară temperaturi de până la 2000°C (3632°F)
• Contrast reglabil cu o singură atingere pentru nivel/interval



FLIR SI2-LD CAMERA ACUSTICA DETECTIE SCAPARI AER SI DEFECTE MECANICE RULMENTI

• Detectează, localizează și măsoară scurgerile de aer comprimat și gaze;
• inclusiv detectarea defecțiunilor la rulmenți, de la o distanță de până la 200 m (656 ft)
• Măsurare și analiză a costurilor încorporate pentru gaze industriale, inclusiv amoniac, hidrogen, CO2, metan, heliu și argon
• Operare cu o singură mână cu reglare automată, zoom 8x și o cameră digitală de 12 MP
• Modul de defecțiune mecanică, selecția automată și optimizarea filtrelor simplifică găsirea problemelor mecanice critice, cum ar fi defecțiunile la rulmenți

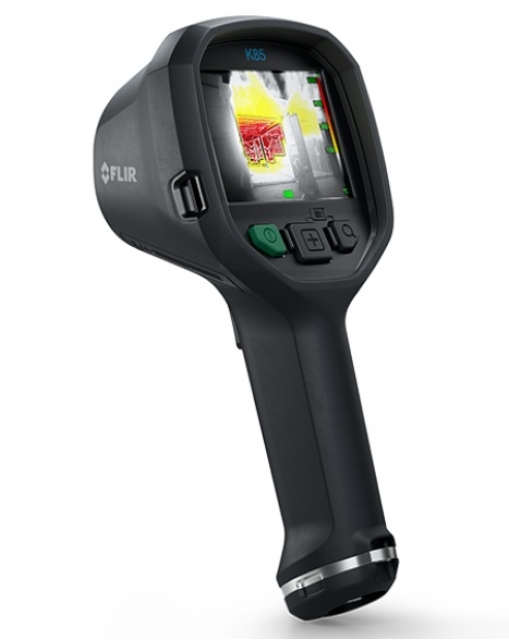

FLIR K75 K85 CAMERA TERMOVIZIUNE POMPIERI PENTRU STINGEREA INCENDIILOR

• FLIR K75 Cameră termică pentru stingerea incendiilor, 320 × 240, activată prin aplicație
• FLIR K85 Cameră termică pentru stingerea incendiilor de înaltă rezoluție, 640 × 480, activată prin aplicație
• FLIR K85-N Cameră termică pentru stingerea incendiilor certificată NFPA 1930:2025, 640 × 480, activată prin aplicație

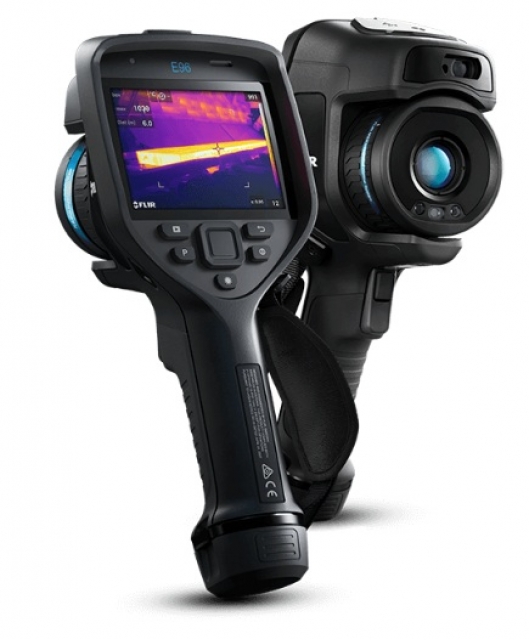

FLIR E96 CAMERA TERMOVIZUNE INALTA REZOLUTIE 640X480PIXELI

• Imagistică termică 640 × 480
• Măsoară temperaturi de până la 1500°C (2732°F)
• Focalizare automată asistată de laser

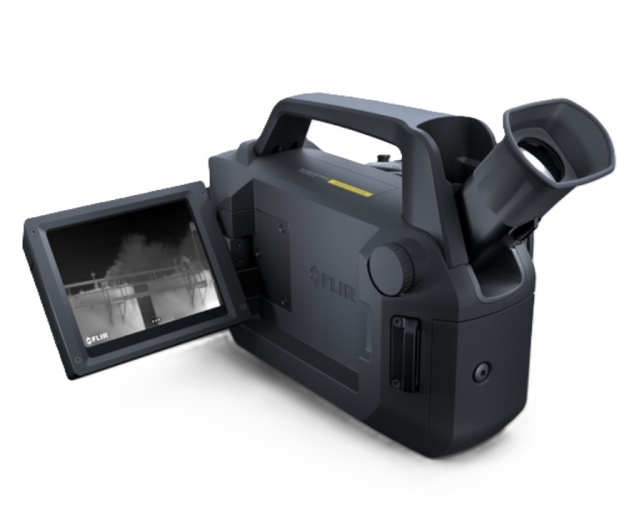

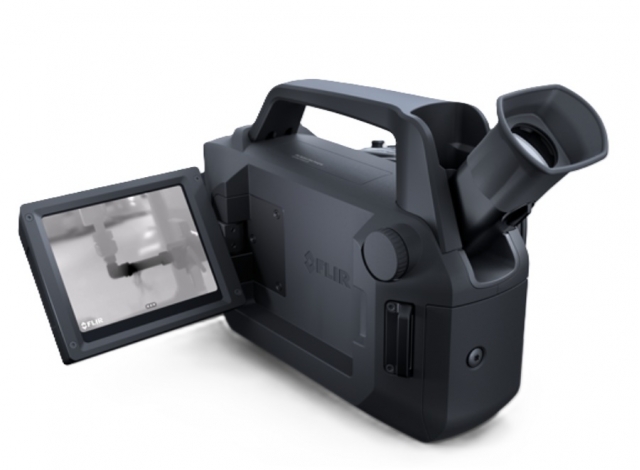

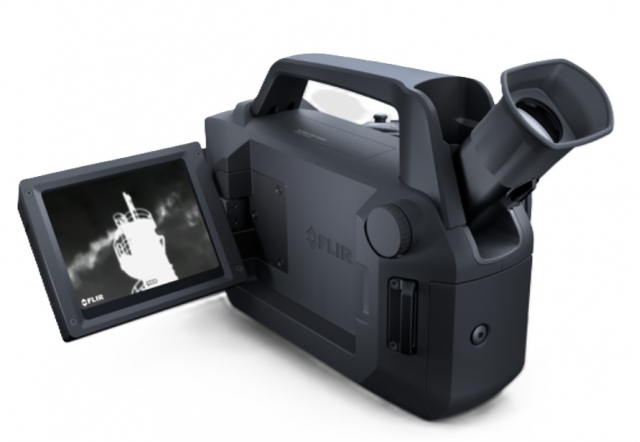

FLIR G304 CAMERA TERMICA DETECTIE EMISII HIDROFLUOROCARBURI AGENTI FRIGORIFICI GAZE INDUSTRIALE UZINE CHIMICE

• FLIR G304 este o cameră inovatoare de imagistică optică a gazelor (OGI)
• utilizată pentru a detecta posibile hidrofluorocarburi, agenți frigorifici și alte gaze industriale în instalațiile de producție și uzinele chimice.

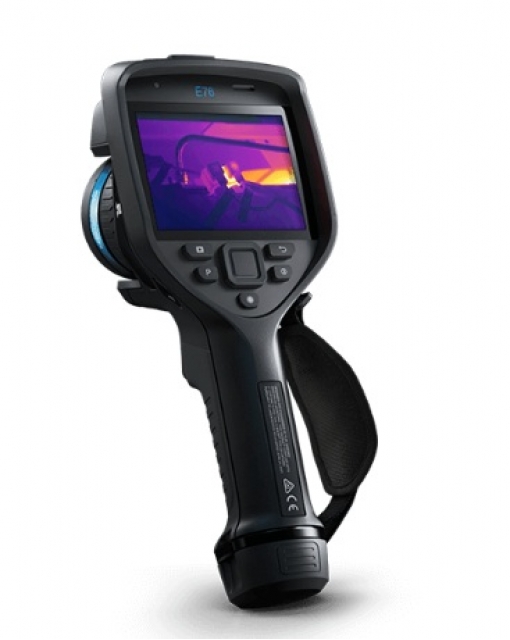

FLIR E76 CAMERA DE TERMOVIZIUNE 320X240

• Imagistică termică 320 × 240
• Măsoară temperaturi de până la 650°C (1202°F)
• Focalizare automată asistată de laser

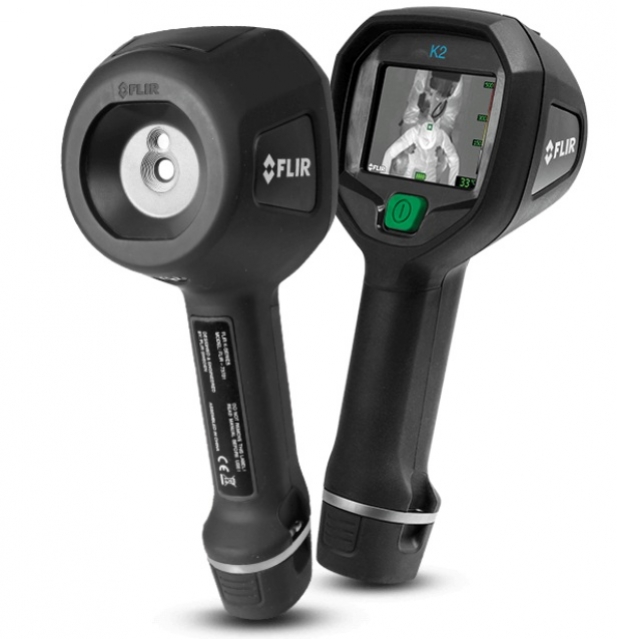

FLIR K2 CAMERA TERMALA PENTRU POMPIERI
