Camera termala infrarosu cu vedere pe timp de noapte Flir Seria Scout BTS
PRODUS OBSOLET ( * SCOS DIN UZ )

Cod: Flir Scout BTS-Series




Brosura produs PDF, 0.42 Mb


Descriere

FLIR BTS-Series



Bi-Ocular Thermal Night Vision Camera



See nature afterhours

With the same image clarity and detail that knocked your socks off in FLIR’s Scout monocular cameras, FLIR’s new Scout Bi-Ocular Series gives outdoor enthusiasts even more choices and control in their thermal viewing experience. Featuring a full coverage eyepiece, inter-ocular adjustment, ergonomic comfort, straightforward controls, interchangeable quick disconnect lenses, and the unrivaled performance that only FLIR’s high resolution thermal cores can deliver, the Scout Bi-Ocular is a must have for any avid outdoor enthusiast. Keep track of your party, see animals, track game, and travel safely at night or in conditions with poor visibility. Your Scout Bi-Ocular isn’t just for out on the trail-there are dozens of on-the-water, on-the-go, or at-home uses.


Employing either a 320 × 240 or 640 × 480 FLIR thermal imaging core with advanced image-processing algorithms, the high performance Scout Bi-Ocular allows you to see more and see farther than any other  night vision technology.



Scout Bi-Ocular camera features include:





Extended Range Options
The BTS-X Pro model bi-ocular provides excellent long range viewing with sharp 320 × 240 native resolution in the viewfinder, and a 2× digital e-zoom step to 160 × 120. With the power of FLIR’s 640 × 480 core, the BTS-XR Pro delivers even greater range performance by supplying crisp, clear 320 × 240 native resolution in the viewfinder and in the 2x digital e-zoom mode, plus an additional 4× digital e-zoom step to 160 × 120. Full 640 × 480 resolution imagery in the BTS-XR Pro is accessible via aux video jack.



Quick-Disconnect Modularity
Customize thermal capability for specific tasks by selecting from three available lens options - 35mm, 65mm, or 100mm extended range. Each of these high-performance thermal lenses allow rapid field exchange via an integral quick disconnect feature. The lenses are lightweight and easily focused, reducing arm strain during long viewing sessions.



One-Touch Recording
The ability to capture both photos and video is standard on all Scout Bi-Ocular models. One-touch recording frees up hands to focus and zoom during an exciting event to get the best video possible.



Faster Power & Battery Swap
A quick release hot-shoe literally makes access to AC power a "snap," and a latched battery door provides fast and easy access to exchange or recondition batteries.



Enhanced Lens Surfaces
Raised rubber sleeves and captive low-profile lens caps help protect your lens investment as well as providing excellent grip/sensitivity.





If you are serious about the great outdoors, why limit your oppertunity to only the daylight hours? Experience nature in vivid detail 24/7 with the Scout Bi-Ocular.







FLIR BTS-Series Technical Specifications





BTS-X Pro

BTS-XR Pro

Detector Type

320 × 240 VOx Microbolometer

640 × 480 VOx Microbolometer

Waveband

7.5 - 13.5 µm

E-Zoom

2×

2×, 4×

Start-up from Stand-by

< 1.5 seconds

Image Processing

FLIR Proprietary Digital Detail Enhancement



Image Presentation

Built-In Display

Color VGA LCD Display

Viewfinder Video Output

9 Hz NTSC or PAL composite video (320 × 240)

External Video (via RCA jack)

320 × 240 NTSC or PAL

640 × 480 NTSC or PAL



File Storage/Data Transfer

Still Image / Video Format

JPEG / AVI (320 × 240 resolution)

JPEG / AVI (640 × 480 resolution)

Still Image / Video Storage

SD or SDHC Card

Real-Time Clock

Yes

USB2 Port

Yes



Physical

Weight (w/o lens)

2.20 lbs

2.20 lbs

Size (L × W × H)

11.0" x 6.5" x 2.63"

11.0" x 6.5" x 2.63"



Power

Battery Type

4 AA Batteries; NiMH (included), Li-Ion , or Alkaline

Battery Life (Operating/ Stand-By)

4-6 Hours / 120 hours on NiMH batteries



Environmental

Rating

IP-67 (with lens attached only)

Operating / Storage Temp.

-4°F - 140°F (-20°C - 60°C) / -40°F - 167°F (-40°C - 75°C)

Camera Package Includes:

BTS-X Pro or BTS-XR Pro Series Handheld Thermal Camera (lens purchased separately), Hot Shoe Charging & Video Output Attachment, 4 Rechargeable AA NiMH Batteries, AC Power Adapter/Charger, Car adapter/Charger, Neck Lanyard, USB Cable, Video Output Cable, Hard Carrying Case, Product CD with Ops Manual, FLIR Video Player Software and End User Graphical User Interface (GUI)



Lens Spec

Lens Options

QD35

QD65

QD100

QD35

QD65

QD100

Size

Ht. - 2.2"
Dia - 3.1" Ø

Ht. - 3.3"
Dia - 3.1" Ø

Ht. - 4.6"
Dia - 3.1" Ø

Ht. - 2.2"
Dia - 3.1" Ø

Ht. - 2.2" Dia - 3.1" Ø

Ht. - 2.2"
Dia - 3.1" Ø

FOV (320 x 240)

13° × 10°

7° × 5°

5° × 3°

18° × 13°

10° × 8°

6° × 4°



E-Zoom FOV (Resolution):

2x

6.5° × 5°
(160 x 120)

3.5° × 2.5°
(160 x 120)

2.5° × 1.5°
(160 x 120)

9° × 6.5°
(320 x 240)

5° × 4°
(320 x 240)

3° × 2°
(320 x 240)

4x

N/A

N/A

N/A

4.25° × 3.25°
(160 × 120)

2.5° × 2°
(160 × 120)

1.5° × 1°
(160 × 120)

Lens Package Includes:

QD35, QD65 or QD100 Lens (as selected at purchase), Lens Cap, Lens Cover, Lens Cloth



Range Performance

Detect Man (1.8 m × 0.5 m)

780 m

1,450 m

2,075 m

1,140 m

1,900 m

2,450 m

Recognize Man

190 m

370 m

540 m

280 m

490 m

650 m

Actual range may vary depending on camera set-up, environmental conditions, user experience, and display method. All specifications are subject to change without notice. Visit flir.com for the most up-to-date specifications.



Accesorii standard





Alte produse FLIR

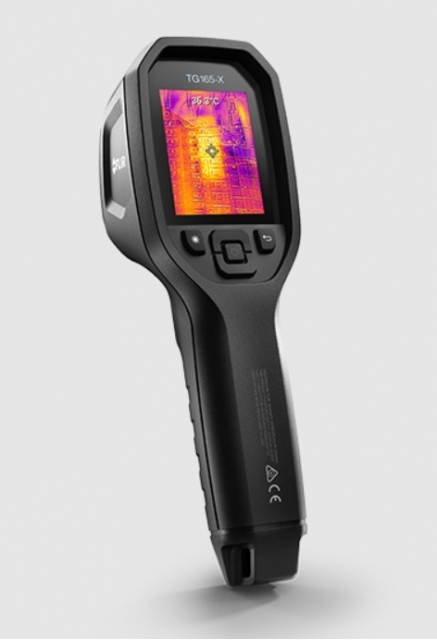

FLIR TG165-X CAMERA INFRAROSU

• Rezoluție termică 80 × 60
• -25°C până la 300°C (-13°F până la 572°F)
• Interpretați imaginile cu MSX®, care îmbunătățește imaginile termice cu detalii vizuale clare

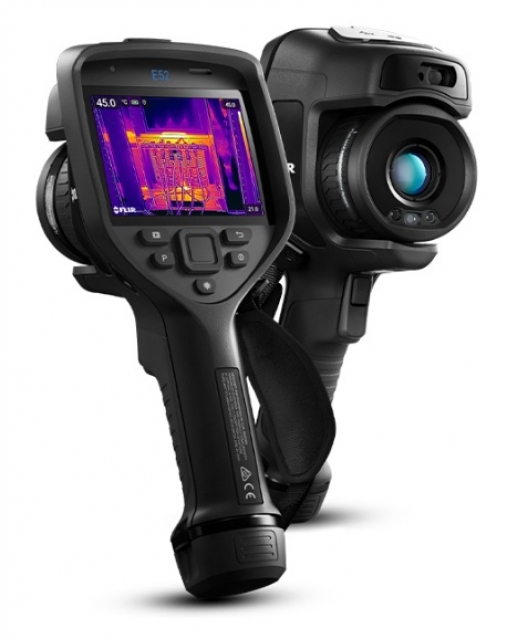

FLIR E52 CAMERA TERMOVIZIUNE 240X180PXL

• Imagistică termică 240 × 180
• Măsoară temperaturi de până la 550°C (1022°F)
• Contrast reglabil cu o singură atingere pentru nivel/interval

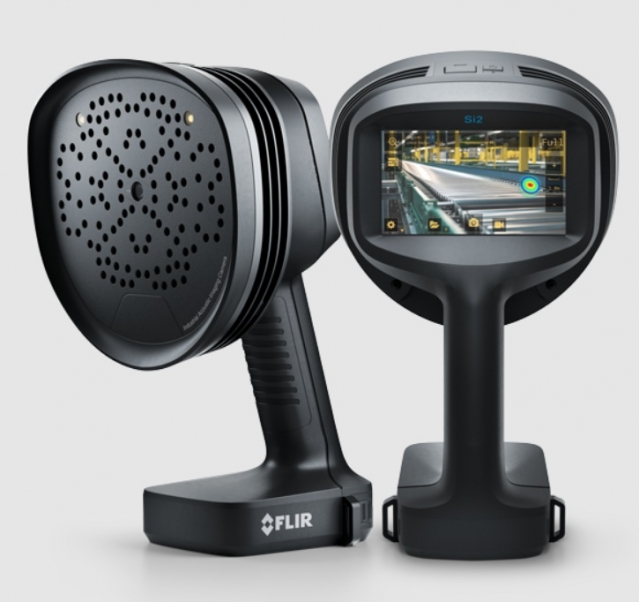

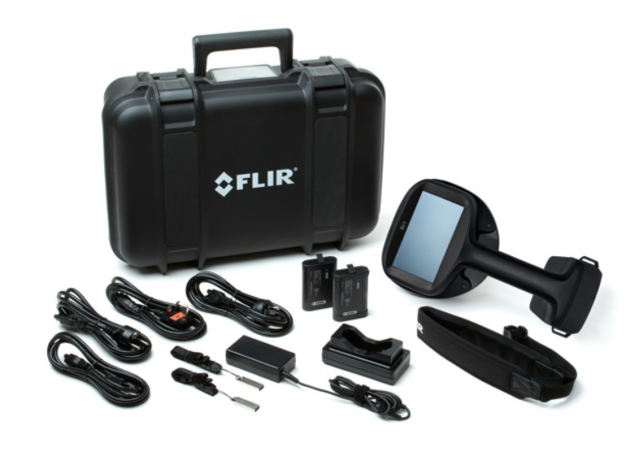

FLIR SI2-LD CAMERA ACUSTICA DETECTIE SCAPARI AER SI DEFECTE MECANICE RULMENTI

• Detectează, localizează și măsoară scurgerile de aer comprimat și gaze;
• inclusiv detectarea defecțiunilor la rulmenți, de la o distanță de până la 200 m (656 ft)
• Măsurare și analiză a costurilor încorporate pentru gaze industriale, inclusiv amoniac, hidrogen, CO2, metan, heliu și argon
• Operare cu o singură mână cu reglare automată, zoom 8x și o cameră digitală de 12 MP
• Modul de defecțiune mecanică, selecția automată și optimizarea filtrelor simplifică găsirea problemelor mecanice critice, cum ar fi defecțiunile la rulmenți

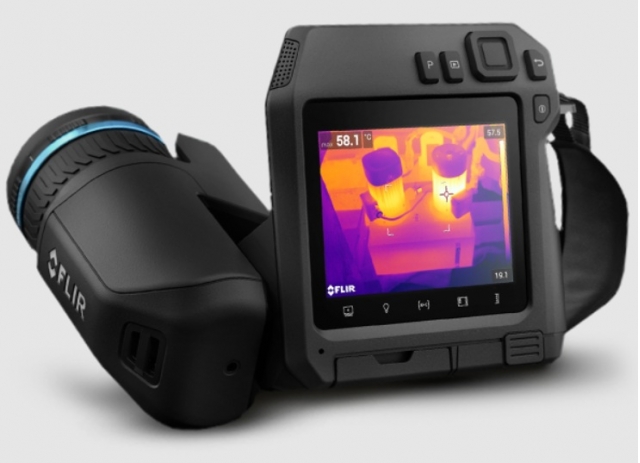

FLIR T530 CAMERA INFRAROSU

• Rezoluție termică de 320 × 240
• Măsoară temperaturi de până la 1500°C (2732°F)
• Contrast reglabil cu o singură atingere pentru nivel/interval

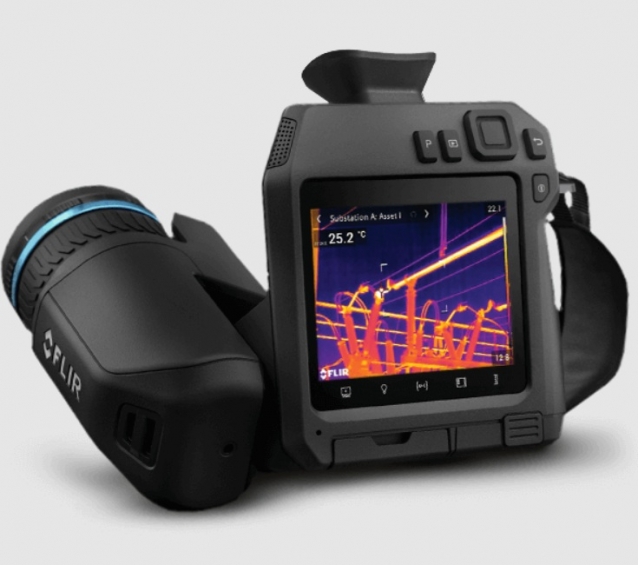

FLIR T865 CAMERA TERMICA INFRAROSU

• Rezoluție termică de 640 × 480
• Măsoară temperaturi de până la 2000°C (3632°F)
• Contrast reglabil cu o singură atingere pentru nivel/interval

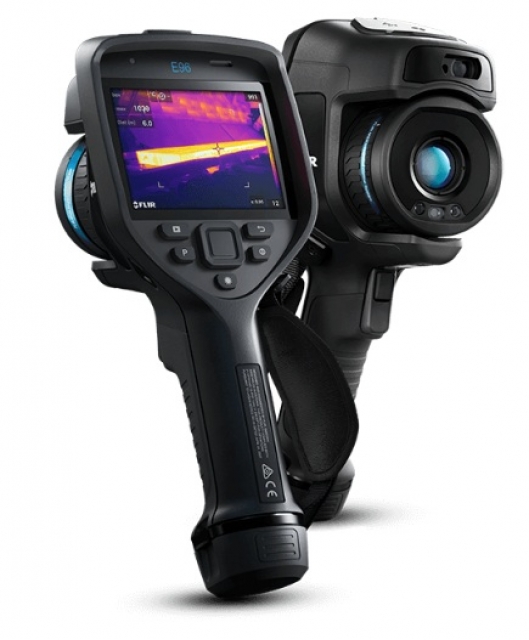

FLIR E96 CAMERA TERMOVIZUNE INALTA REZOLUTIE 640X480PIXELI

• Imagistică termică 640 × 480
• Măsoară temperaturi de până la 1500°C (2732°F)
• Focalizare automată asistată de laser

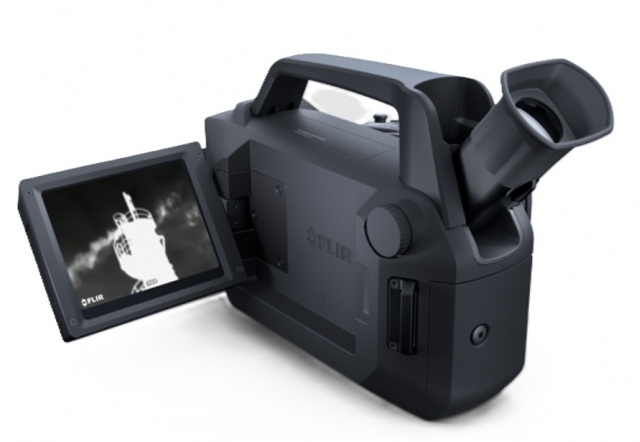

FLIR G304 CAMERA TERMICA DETECTIE EMISII HIDROFLUOROCARBURI AGENTI FRIGORIFICI GAZE INDUSTRIALE UZINE CHIMICE

• FLIR G304 este o cameră inovatoare de imagistică optică a gazelor (OGI)
• utilizată pentru a detecta posibile hidrofluorocarburi, agenți frigorifici și alte gaze industriale în instalațiile de producție și uzinele chimice.

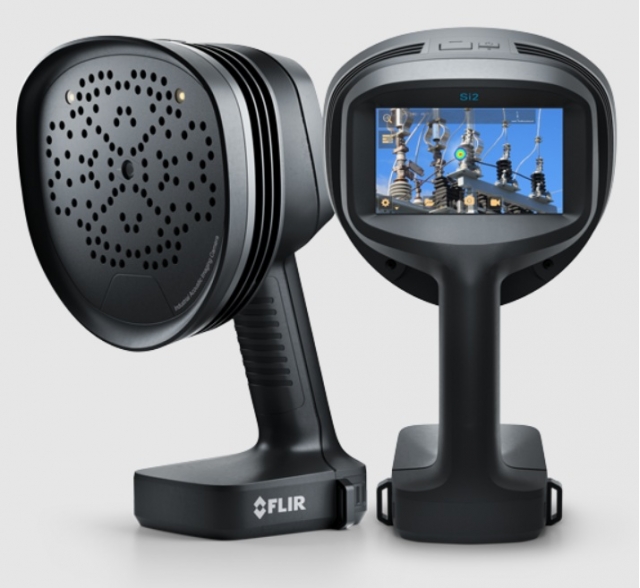

FLIR SI2-PD CAMERA ACUSTICA PENTRU DETECTIE SCAPARI PARTIALE

• Detectează, localizează, clasifică și evaluează defectele de descărcare parțială (PD) de la până la 200 m (656 ft) distanță
• Identifică PD de 30 de ori mai mici ca niciodată
• Evaluarea severității problemelor PD, bazată pe cameră și pe software și clasificarea tipului de PD oferă cel mai bun suport decizional din clasa sa
• Operare cu o singură mână cu reglare automată, zoom 8x, o cameră digitală de 12 MP și clasificare IP54

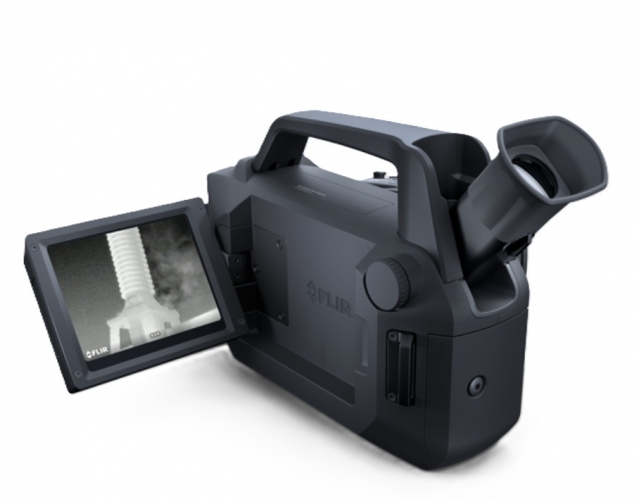

FLIR GF77 CAMERA EMISII DE GAZE METAN HEXAFLUORURA DE SULF AMONIAC ETILENA GAZ INDUSTRIAL

• Detectează scurgeri de gaze la substații și multe altele
• FLIR GF77 este o cameră optică de imagistică a gazelor nerăcită inovatoare
•  opțiuni de lentile interschimbabile, care detectează metan, hexafluorură de sulf (SF6), etilenă, amoniac și alte emisii de gaze.

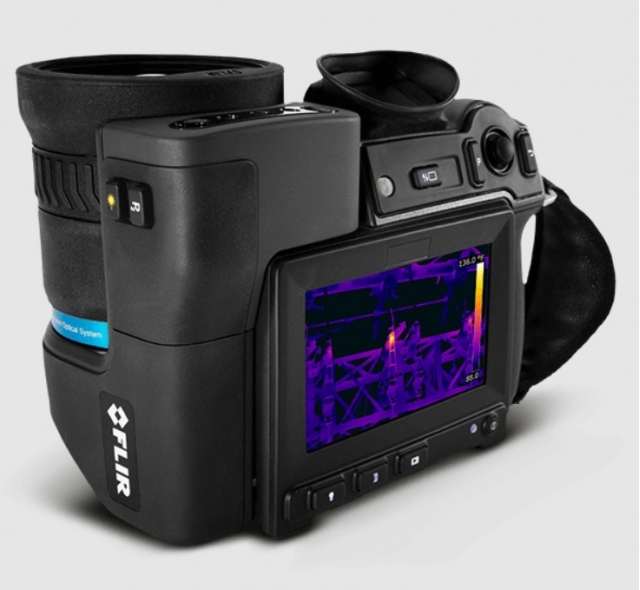

FLIR T1020 CAMERA TERMOVIZIUNE HD 1024X768
