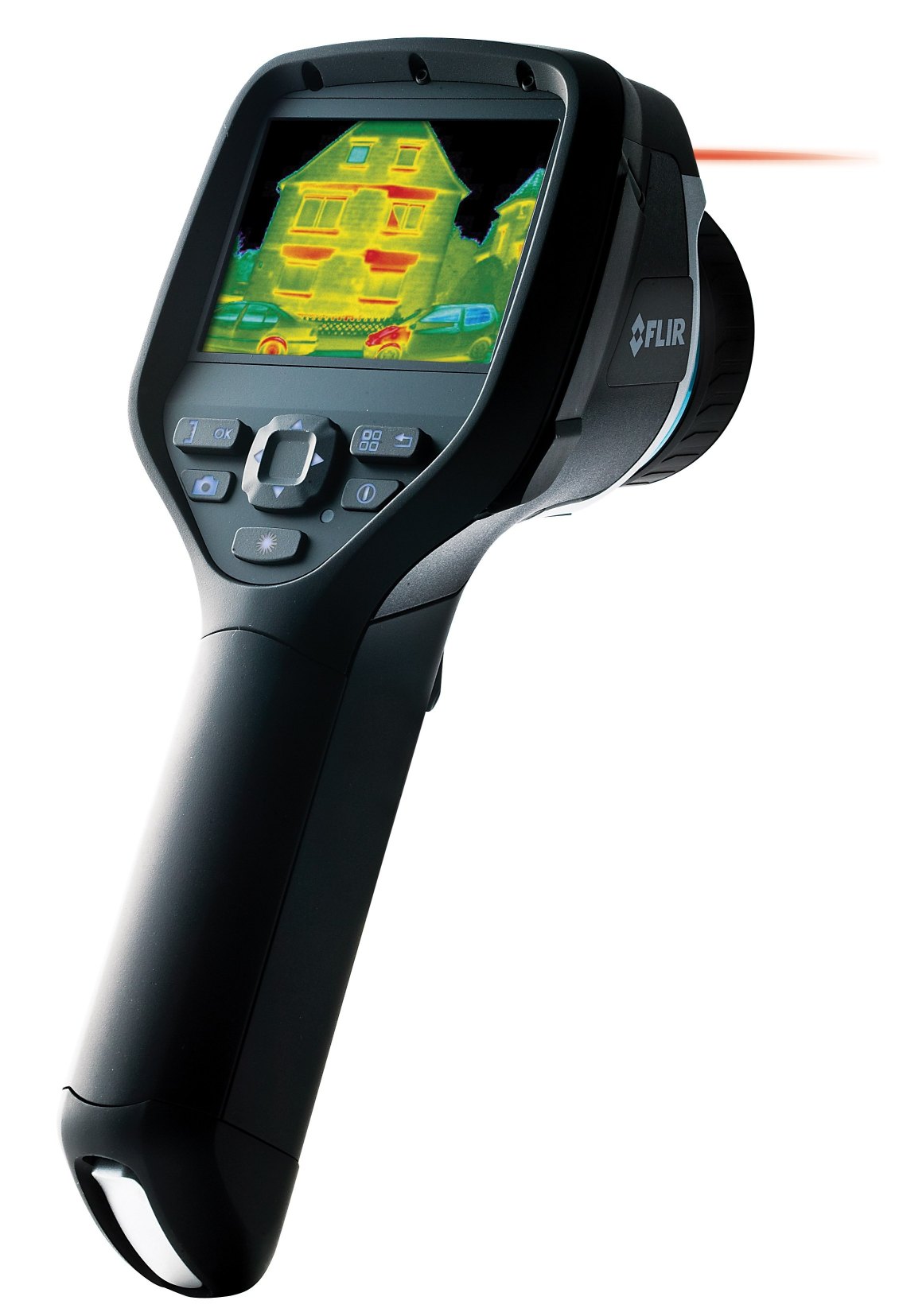

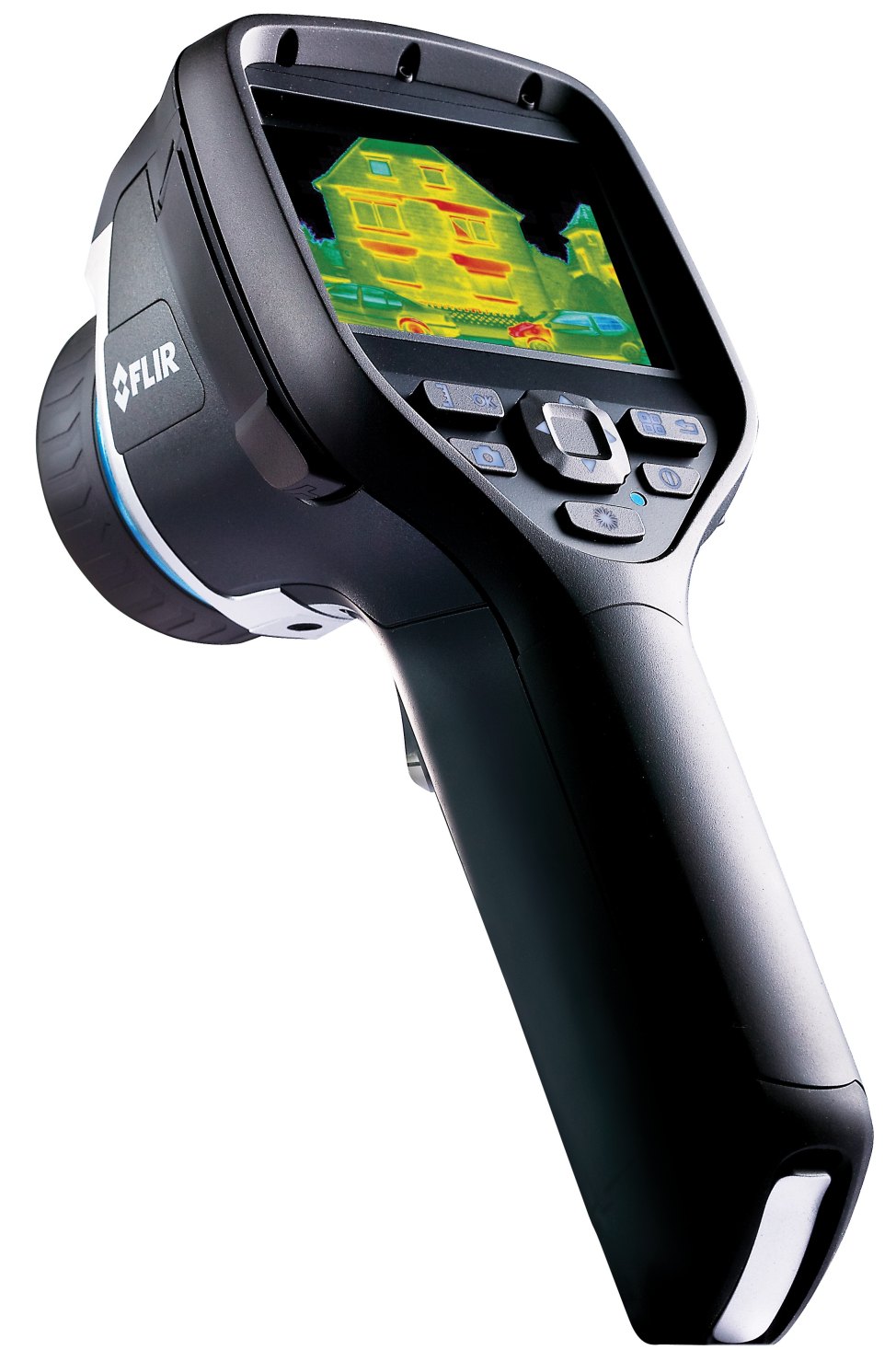

The FLIR Ebx-models have an image quality of up to 320 x 240 pixels and include the features you need to make well informed building decisions like built-in insulation and dew point alarms. The cameras are specifically designed for building inspections such as, HVAC heating and cooling issues, air flow, moisture detection, insulation problems,and much more.

Large and bright LCD
Sharp thermal images and easy-to-read temperature values are presented on the touch screen LCD display.

Laserpointer and LED light
Activate the built in laser pointer and associate the hot spot you see on the LCD with the real target in the field. A LED light assures clear visual images.

Thermal Fusion
Merges visual and infrared images to offer better analysis.

Picture-in-Picture (PiP)
With the PiP-function it is easy to locate areas of interest.

Instant reports
Create instant reports directly in camera. Easy to copy reports to USB.

MeterLink™
FLIR MeterLink technology simplifies the work in electrical or building inspections by making it possible to transfer, via Bluetooth®, the data acquired by an Extech clampmeter or multi function moisture meter and psychrometer into the infrared camera. The MeterLink technology saves time and eliminates the risk of erroneous records or notes.

Dew point/Insulation Alarm
The Relative Humidity Alarm alerts you to the areas where there is a risk of condensation. An Insulation Alarm shows the insulation performance of the building structure.

Text and voice annotations
Text comments can be made from a pre-defined list or by using the touch screen. A headset can be connected to make voice annotations.

Visual camera
3 Megapixel visible light camera makes observing and inspecting faster and easier.

FLIR Ebx-Series camera model comparison

FLIR E30bx	FLIR E40bx	FLIR E50bx	FLIR E60bx
Thermal image quality: 160x120 pixels	Thermal image quality: 160x120 pixels	Thermal image quality: 240x180 pixels	Thermal image quality: 320x240 pixels
Thermal sensitivity: <0.1°C	Thermal sensitivity: <0.045°C	Thermal sensitivity: <0.045°C	Thermal sensitivity: <0.045°C
Spotmeter: 1	Spotmeter: 3	Spotmeter: 3	Spotmeter: 3
1 box with min./max./average	3 boxes with min./max./average	3 boxes with min./max./average	3 boxes with min./max./average
	Delta temperature measurement	Delta temperature measurement	Delta temperature measurement
	Built-in 3.1 Mpixels digital camera	Built-in 3.1 Mpixels digital camera	Built-in 3.1 Mpixels digital camera
	Voice / text annotations	Voice / text annotations	Voice / text annotations
	MeterLink™	MeterLink™	MeterLink™
	Bluetooth® / WiFi	Bluetooth® / WiFi	Bluetooth® / WiFi
	1-2x continuous digital zoom	1-4x continuous digital zoom	1-4x continuous digital zoom
	IR area on visual image	Scalable IR area on visual image	Scalable IR area on visual image
		Thermal Fusion	Thermal Fusion
		Non-radiometric video streaming	Non-radiometric video streaming
			Instant report

Accesorii standard

FLIR E30bx,FLIR E40bx, FLIR E50bx or FLIR E60bx
Hard transport case
Thermal imaging camera with lens
Battery
Hand strap
Calibration certificate
FLIR Tools Software CD-ROM
Memory card
Lens cap
Power supply incl. multiplugs
Printed Getting Started Guide
Printed Important Information Guide
USB cable
User documentation CD-ROM

Alte produse FLIR

CAMERA TERMOVIZIUNE INSPECTIE CLADIRI FLIR SERIA B

• Up to 320 x 240 pixel resolution
• High quality visual camera
• Panorama support (FLIR B250/B425)
• MPEG-4 video
• Radiometric IR video streaming
• Thermal Fusion (B365/ B425)
• Touch screen
• WiFi

CAMERA TERMALA INFRAROSU CU VEDERE PE TIMP DE NOAPTE FLIR SERIA SCOUT TS

• Thermal imaging cameras for wildlife observations
• rugged handheld thermal imaging cameras
• especially developed for wildlife observations and hunters
• unique InstAlert feature colors the hottest parts in the thermal image red
• images and video can be used to insert in your own video or photo collection

CAMERA TERMOVIZIUNE INALTA PERFORMANTA FLIR SC8000

• Thermal images of up to 1280 x 1024 pixels
• High sensitivity
• Ultra high frame rate with windowing
• Visual camera with LEDs
• Wifi
• Wide range of interchangeable lenses
• Removable Touchscreen LCD

CAMERA DE TERMOVIZIUNE 640 X 480 PIXELI FLIR P620 P640 P660

• 640x480 pixel resolution
• High quality visual camera
• Contrast Optimizer (P660)
• Panorama support
• Built-in GPS (P660)
• MPEG-4 video (P640/660)
• Radiometric JPEG
• Wifi

CAMERA TERMALA PENTRU MARINA SI NAVIGATIE FLIR HM

• Portable thermal imaging cameras for security and law enforcement applications
• handheld shock-resistant
• extremely affordable
• IP67 rated
• operating time of over 5 hours

CAMERA TERMALA INFRAROSU PENTRU NAVIGATIE CU INSTALARE PE VAPOR FLIR SERIA M

• Multi-Sensor systems combining a thermal imaging and a low light camera
• clear thermal imagery in total darkness and light fog or smoke
• perfect tool for night time navigation, shipboard security, man overboard situations, anti-piracy
• Ethernet connectivity for easy installation
• continuous 360° pan and +/-90° tilt field of regard for horizon-to-horizon visibility
• rugged, waterproof gimbal enclosure

CAMERA DE TERMOVIZIUNE INSPECTII CLADIRI SERIA FLIR EBX E30BX E40BX E50BX E60BX

• Large and bright LCD
• Laserpointer and LED light
• Thermal Fusion
• Picture-in-Picture (PiP)
• Instant reports
• Dew point/Insulation Alarm
• Text and voice annotations
• Visual camera

CAMERA TERMOVIZIUNE PENTRU APLICAREA LEGII, POLITIE, SECURITATE FLIR BHS-X BHS-XR

• Portable thermal imaging cameras for security and law enforcement applications
• shock-resistant
• bi-oculars
• see suspects in total darkness, through smoke, and light foliage
• 320 � 240 native resolution in the viewfinder and a 2� digital e-zoom step to 160 � 120 resolution

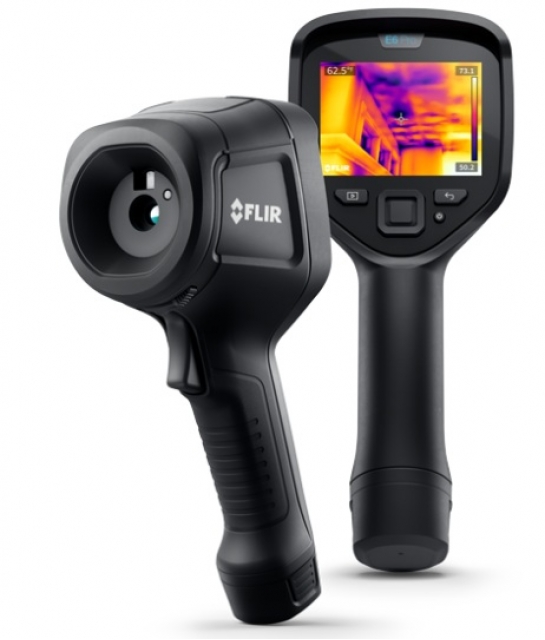

CAMERA TERMICA CU INFRAROSU FLIR E6

• FLIR E6 160 x 120 pixels
• Display: 3" color LCD
• On-board 640 x 480 Digital Camera
• Easy-to-use, weighs only 1.2lbs
• 2% accuracy
• File format: Radiometric jpg

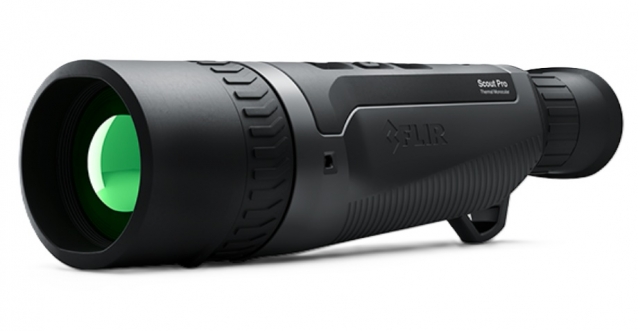

CAMERA TERMALA INFRAROSU CU VEDERE PE TIMP DE NOAPTE FLIR SCOUT PS-24/ SCOUT PS-32
