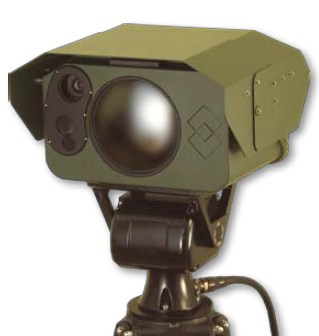

The ThermoVision 2000/3000 multi-sensor integrate the long range, long wave imaging systems found in the ThermoVision 2000/3000 with a powerful daylight sensor, GPS, advanced mapping software, and optionally a laser rangefinder. An array of advanced functions and options are available to meet the most demanding needs. Just like for the common versions the user can choose between 320 x 240 pixels or 640 x 480 pixels detectors. Also the sensors can either be fixed mounted or optionally be installed on a Pan/Tilt system to increase situational awareness. Both thermal imaging cameras are also available as a multi-sensor. They can be equipped with a daylight camera, a GPS unit, digital magnetic compass and optionally, a laser range finder

Both the ThermoVision 2000 and ThermoVision 3000 are equipped with a cooled Quantum Well Infrared Photodetector (QWIP). A thermal imaging camera with a cooled detector gives you the advantage that you can see and detect potential threats much further away than with an uncooled detector. But there is more. Objects which are at a close distance can be seen with much more detail. You can see what people are carrying. There is no need anymore to send someone out in the field to check things out since small details can clearly be seen on the thermal image.
320 x 240 pixels or 640 x 480 pixels The ThermoVision 2000 is equipped with a QWIP detector offering crisp thermal images of 320 x 240 pixels. Users that want to see the smallest of detail and are demanding the best possible image quality can choose the ThermoVision 3000. This thermal imaging camera is also equipped with a QWIP detector but delivers images of 640 x 480 pixels. This is a four times better image quality than a 320 x 240 detector. It allows the user to see more detail and detect more and smaller objects from a farther distance.
Both the ThermoVision 2000 and ThermoVision 3000 are equipped with triple field of view optics. A wide angle lens offering a wide field of view, a medium field of view lens and a narrow field of view lens. Both systems have the capability to switch from one lens to another within a fraction of a second. The wide angle lens will give you excellent situational awareness. When a potential threat is detected you can ,easily switch to the medium field of view lens to have a closer look at the situation or even to the extremely narrow field of view lens so that you can see the smallest of details. This way operators can see farther recognize more detail and react more quickly to security threats.
The ThermoVision 3000 contains Advanced Digital Detail Enhancement (DDE). This assures clear, properly contrasted thermal images. It provides high quality thermal imaging in any night or daytime environmental conditions.
Both the ThermoVision 2000 / 3000 contain an exclusive auto focus feature which delivers crisp, clear images at the press of a button or whenever fields of view are changed. The system allows you to experience better situational awareness in the wide field of view, while maintaining detailed recognition capabilities in the narrow field of view.
Both cameras incorporate easily with common power and video interfaces found in existing and new security systems. They can be easily integrated into any existing infrastructure providing early detection and visibility 24/7 all the year round. The images from the 320 x 240 pixels or 640 x 480 pixels detector can be displayed on virtually any existing display that accepts composite video.
Both systems are configured to be either fixed mounted or field transportable for fast deployment. They can be mounted on a standard tripod. A single operator can set up the system in minutes, making it ideal for mobile operations and quick deployments.
The ThermoVison 2000 / 3000 are extremely rugged systems. Their vital core is protected against humidity and water. They both operate between -32°C and +55°C.
Optionally, the ThermoVision 2000 and ThermoVision 3000 can be mounted on a rugged Pan/Tilt system. Intuitive joystick operation allows the operator to see 360° horizontal and -+/-35° vertically, offering superb situational awareness.
If installed on a Pan/Tilt mechanism, the ThermoVision 2000 and ThermoVision 3000 can be connected to a radar system. If the radar detects an object, the camera will automatically turn in the right direction and give you a visual image so that you can instantly see what the blip on the radar screen really means. Thanks to he precision, fast , Pan/Tilt system, the ThermoVision 2000 and ThermoVision 3000 slew up to 65° / sec This means that within 1 second the camera head will turn 65°. It allows for easy tracking and following of as moving objects.
Various options exist to connect the ThermoVision 2000 and ThermoVision 300 and integrate the in your existing systems. The ThermoVision 2000 and ThermoVision 3000 can be configured for stand alone use as par of network or in hybrid configuration wit local and network based control:
Analog configuration: Simply connect the ThermoVision 2000 and ThermoVision 3000 over RS-232 or S-422 to the remote control panel. A video cable can be connected to any existing display that accepts composite video.
TCP/IP configuration: The ThermoVision 2000 / 3000 can be integrated in any existing TCP IP network and controlled over a PC . No need to add an extra cable. Using this configuration, you can monitor all activity in a protected area over the internet. Even when you are thousands of kilometers away.
The sensors feature a powerful, sensitive daylight camera with excellent zoom and color quality for additional target identification when conditions permit. Displaying both the thermal image and the daylight image at the same time is also possible.
The sensors are equipped with and an advanced GPS. This way the systems will know where they are located. This can be extremely important when the multi-sensors are installed on moving equipment or when they are used as portable systems.
A built-in digital magnetic compass, allows determining in which direction the ThermoVision 2000 / 3000 sensors are pointing.
Optionally the multi-sensor versions of the ThermoVision 2000 / 3000 can be equipped with an eye safe laser range finder. Combined with the GPS systems and the electromagnetic compass, it will allow you to exactly determine where a suspected object is located and how for it is away.
Optionally, the sensors can be mounted on a rugged Pan/Tilt mechanism. They can be connected to a RADAR in a "slew to cue" configuration.
When installed on a Pan/Tilt, the sensors can be programmed to scan an entire area automatically. Different spots that need to be monitored periodically can be preset. The system will scan the predefined areas automatically. This not only ensures that the entire area is being monitored but also reduces operator workload.
Although the sensors are available with a standard daylight imaging camera, GPS, compass and eventually a laser range finder, the user has the possibility to define his preferred equipment to be included in the system.

IMAGING PERFORMANCE

Thermal:

Detector type

ThermoVison 2000: Quantum Well Infrared Photodetector (QWIP): 320 x 240 pixels
ThermoVison 3000: Quantum Well Infrared Photodetector (QWIP): 640 x 480 pixels

Spectral range

8.0 to 9.2µm

Number of fields of view

Field of view lens 1

ThermoVision 2000: 25° (H) x 19° (V) with 28 mm lens
ThermoVision 3000: 25° (H) x 19° (V) with 37 mm lens

Field of view lens 2

ThermoVision 2000: 6° (H) x 4.5° (V) with 116 mm lens
ThermoVision 3000: 7.8° (H) x 5.8° (V) with 116 mm lens

Field of view lens 3

ThermoVision 2000: 0.99° (H) x 0.74° (V) with 704 mm lens
ThermoVision 3000: 1.3° (H) x 0.96° (V) with 704 mm lens

Spatial resolution (IFOV)

ThermoVision 2000: 1.36 mrad for 28 mm lens0.33 mrad for 116 mm lens - 0.054 for 704 mm lens
ThermoVision 3000: 0.68 mrad for 37 mm lens0.22 mrad for 116 mm lens - 0.036 mrad for 704 mm lens

Thermal sensitivity

30 mK max

Image frequency

ThermoVision 2000: 50 Hz PAL or 60 Hz NTSC
ThermoVision 3000: 25 Hz PAL or 30 Hz NTSC

Focus

Automatic or Manual

Electronic zoom

2x, 4x

Image processing

Digital Detail Enhancement (DDE): ThermoVision 3000 only

Visual (Multi-Sensor only):

Built-in digital video

Sony FCB-EX-980S Color block camera (NTSC)
Sony FCB-EX-980SP Color block camera (PAL)

Effective pixels

Approx. 680,000 pixels NTSC - approx. 800,000 pixels PAL

Low light option

Yes

Image stabilization

Yes

Optical zoom

26x, 42° to 1.6° continuous

Electronic zoom

12x continuous

PAN - TILT (Pan / Tilt versions only)

Az Range; Az Velocity

x 360°; 0.3° - 65°/sec continuous

El Range; El Velocity

+/-35°; 0.3° - 30°/sec

Accuracy

1 mrad

Resolution

0.1 mrad

LASER RANGE FINDER (optional on Multi-Sensor)

Type / range

Erbium glass, eye safe / 80 m to 20 km

SYSTEM FEATURES

Geo Positioning

Internal GPS: multi sensor only

Programmable search

Program multiple preset locations: Pan/Tilt version only

Remote Control

By serial link over TCP/IP

Automatic Heater

Yes

Built-in Test (BIT)

Yes

Pelco D compliance

Yes

IMAGE PRESENTATION

Video output

NTSC or PAL composite video, 14-bit digital image data

Connector types

BNC

VOIP

MPEG-2 or MPEG-4 video

POWER

Requirements

18-35 V DC

Consumption

35 W typical - 140 W with heaters
Multi-sensor: 55 W typical - 140 W with heaters

ENVIRONMENTAL SPECIFICATIONS

Operating temperature range

-32°C to +55°C

Storage temperature range

-40°C to +70°C

Automatic Window defrost

Yes

Humidity

Mil-Std-810F, 507.4

Rain

Mil-Std-810F, 506.4

Sand/dust

Mil-Std-810F, 510.4

Ice/freezing rain

Mil-Std-810F, 521.2

Shock

Mil-Std-810F, 516.5

Vibration

Mil-Std-810F, 514.4

Solar radiation

Mil-Std-810F, 505.4

PHYSICAL CHARACTERISTICS

Camera Weight

Accesorii standard

STANDARD PACKAGE

ThermoVision 2000 / 3000:
Thermal imaging camera, power supply, camera cable (7.5 m), hand control, junction box, operator manual, shipping case
ThermoVision 2000 / 3000 Multi-sensor:
Thermal imaging camera, daylight camera, Pan/Tilt, JPC (Junction and Protocol Converter) system, power supply with cables, system cable, joy stick, junction box, operator manual, shipping cases (3).Optional: Laser Range Finder, Digital Magnetic Compass
