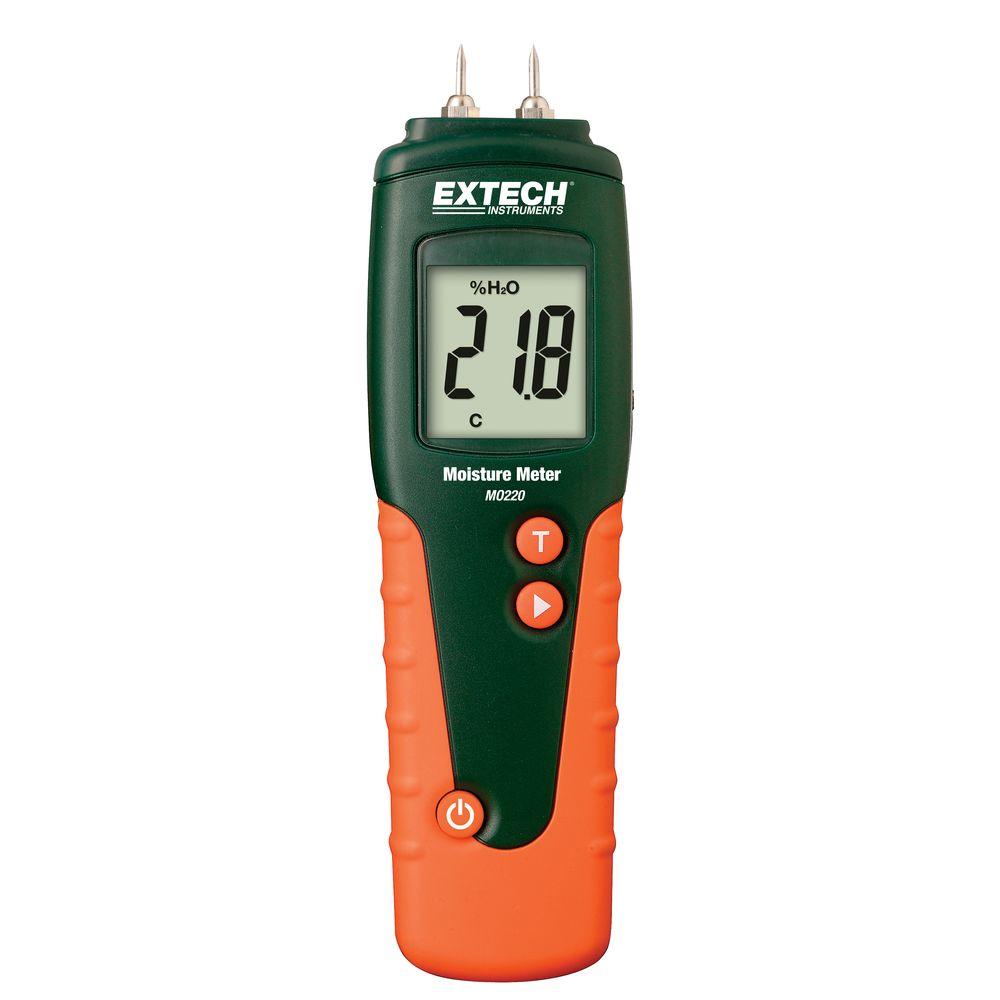

Extech MO220 Umidimetru umiditate lemn

Cod: Extech MO220




Brosura produs PDF, 0.21 Mb

Descriere

Integral pins and remote hand-press probe

The MO220 is specifically designed for monitoring moisture in wood. Memory contains 8 wood groups with calibrations for approx. 170 species of wood. Measurements can be taken using the integral pin electrodes or the included heavy duty remote probe. Automatically temperature compensated (ATC) readings when used with the temperature probe. Built-in calibration check, replaceable measurement electrode pins, user settable Auto Power off (1 to 9 minutes) with disable, and Low battery indication. Complete with protective cap, temperature probe, heavy duty remote moisture probe, replacement pins, two AAA batteries, and soft case.



Features:

  • Monitor moisture in wood and other building materials
  • Measure directly with the built-in moisture pins or use remote hand-press probe on hard surfaces
  • Memory contains 8 wood groups with calibrations for approximately 170 species of wood
  • Designed in a rugged double molded housing construction and is pocket sized for one-handed operation


Alte produse EXTECH

EXTECH 380820 SURSA UNIVERSALA AC SI ANALIZOR PUTERE

• 99 memory locations for preset voltage and frequency output settings
• User-programmable Over Current Protection
• Programmable through the built-in RS-232 interface
• Data acquisition mode captures readings to your PC with a user-programmable sampling rate of 2 to 65,535 seconds
• Complete with AC power cord, RS-232 to USB cable and software



EXTECH DL150 INREGISTRATOR DATALOGGER DE TENSIUNE AC TRUE RMS

• Measure True RMS AC Voltage (600V) or Current (200A)
• Readings can be downloaded to your PC via the USB interface and analyzed using the included software or exported to a spreadsheet
• LCD indicates time/date, current readings and Min/Max
• Normal, Peak and Capture (user-specified trigger level) recording modes



EXTECH 480403 TESTER ROTATIE MOTOR SI SENS FAZE

• Indicates rotation direction of the motor
• Determine rotation of a motor without contact
• LEDs indicate phase orientation (clockwise or counter-clockwise) and whether each of the three phases is live
• Double molded durable housing
• Easy to use alligator clips with wide jaws



EXTECH 382270 SURSA DE TENSIUNE CUADRUPLA 4 CANALE

• Two fully adjustable supplies combined with two auxiliary outputs
• Two 0 to 30V/0 to 5A outputs with selectable Constant Voltage and Constant Current modes
• Two auxiliary outputs with fixed current of 3 to 6.5V/3A and 8 to 15V/1A



EXTECH 380360 MEGOHMETRU DIGITAL

• Three test voltages of 250V, 500V and 1000V
• Insulation Resistance to 2000MOhm
• Safety Power Lock enables "hands free" operation for 3 minute test
• Automatic discharge when safety "Press to Test" button is released
• Continuity measurements to 200Ohm and Voltage to 600VAC



EXTECH SDL400 LUXMETRU CU INREGISTRARE DATALOGGING

• Wide range to 10,000Fc or 100kLux
• Cosine and color-corrected measurements
• Utilizes precision silicon photo diode and spectral response filter
• Offset adjustment used for zero function to make relative measurements
• Adjustable data sampling rate



EXTECH 48VFL11 CONTROLER TEMPERATURA CU IESIRE RELEU

• One relay output
• Dual 4-digit LED displays of process and setpoint values
• User friendly menus and tactile keypad for easy programming
• One-touch autotuning for quick setup & precise control
• Fuzzy Logic PID offers intuitive control simulating human control logic



EXTECH RHT35 DATALOGGER USB UMIDITATE TEMPERATURA PRESIUNE BAROMETRICA

• Compact size housing with built-in NTC thermistor, capacitive humidity sensor, and barometric pressure MEMS sensor designed with standard USB connector for easy data downloading to a PC
• 5-digit LCD display with battery life indicator
• User programmable settings: 6 languages, sample rate, start delay time, alarm delay time, high/low alarm range, and security feature
• Status Indication via Red and Green LEDs
• Start button begins continuous datalogging, which continues until memory is full at 48,000 readings (16K for each parameter), or when Stop button is pressed
• Bookmark 8 locations in a data recording log with a press of the Mark button



EXTECH 407910 TESTER PRESIUNE DIFERENTIALA MANOMETRU

• ±29psi with 0.02psi resolution
• 8 selectable units of measure
• Zero function for offset measurements
• Data Hold, Auto power off, and Min/Max functions



TESTER UMIDITATE EXTECH MO257

• Non-invasive moisture content measurements in wood/building materials
• Measures relative moisture of various building materials including wood, particle board, carpeting, and ceiling tiles using non-invasive Pinless Technology
• Multifunction backlit triple LCD display
• Pinless measurement depth from 0.78" (20mm) to 1.6" (40mm) below the surface
• High frequency sensing technology
