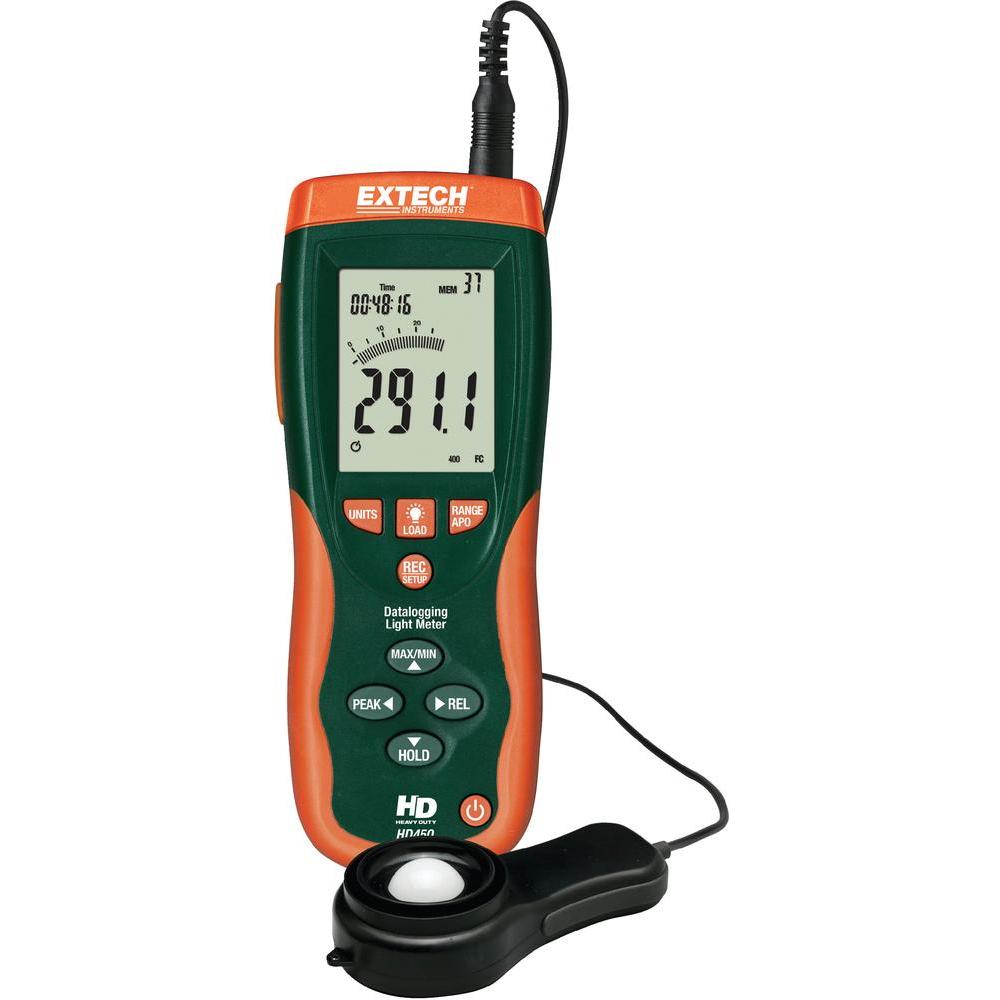

Extech HD450 Luxmetru cu Datalogging

Cod: Extech HD450




Brosura produs PDF, 0.21 Mb

Descriere

Light meter with double molded housing and large backlit display with 40-segment bar graph

The HD450 Light Meter measures from 0 to 40,000Fc and 0 to 400kLux with a 0.01Fc/0.1Lux resolution. Features: 5% accuracy, Peak mode (10µs), Relative mode, Min/Max, Data Hold, backlit LCD display with 40-segment bar graph, and a rugged double molded housing. In addition, the datalogger function can automatically store up to 16,000 readings or manually store/recall up to 99 readings. Comes complete with light sensor with 3ft (1m) cable and protective cover, software with USB cable, hard carrying case and 9V battery.



Features:

·         Automatically stores up to 16,000 readings or manually store/recall up to 99 readings

·         Large backlit LCD display with 40-segment bar graph

·         Wide range to 40,000Fc or 400,000 Lux

·         Cosine and color corrected measurements

·         Utilizes precision silicon photo diode and spectral response filter

·         Peak mode (10mS) captures highest reading

·         Relative mode indicates change in light levels

·         Min/Max and Data Hold

·         Backlight for readings in low light levels

·         Heavy Duty rugged double molded housing

·         Built-in USB port
