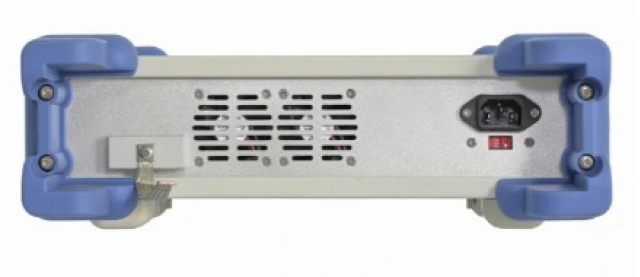

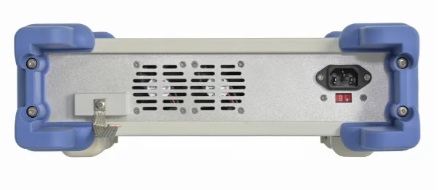

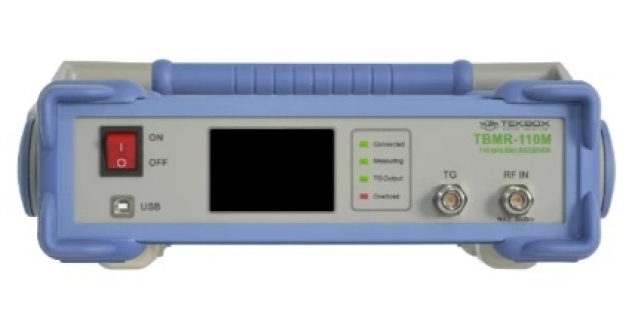

TEKBOX TBMR-110M EMI-ANALYZER 1 Hz-110 MHz

Code: TBMR-110M TBMR110M



Datasheet PDF, 0.26 Mb


Description

International EMC Standards require various spectrum measurement methods and equipment to ensure that the EUT´s electromagnetic emissions do not exceed the specified limits. The TBMR-110M EMI Analyzer is designed to carry out conducted emission measurements. Its affordability and versatility make it a perfect tool for engineers doing pre-compliance measurements during the development process. Its ease of use also enables importers of electronic items to periodically assess if their suppliers supply consistent quality in terms of EMC compliance, without having to outsource it to test laboratories. High accuracy, versatility and high-speed measurements are only a few of the many features.

SPECIFICATIONS
EMI Analyzer 1 Hz "" 110 MHz (Measurement Receiver)

"" 162 dBm/Hz noise floor down to 1 kHz
7-band hardware pre-selector filter bank
30 dBm maximum input power
CISPR-16, ANSI and MIL-STD compliant detectors
Peak, Quasi-Peak, Average, CISPR-Average, RMS and CISPR-RMS detectors working in parallel.
Sweep, STFFT and direct parallel resolution bandwidth setting (-3 dB and -6dB)
Numerous predefined Standards, ready to load and use
Pre-measurement with selective Peak measurement
Direct fast compliant STFFT measurement
Many pre-defined transducers, antenna factors and various other compensation files
Many data manipulation, display and documentation features
Direct control from EMCView or standalone operation
Quick load of predefined setups

Spectrum Analyzer

1 Hz "" 110 MHz measurement range
Tracking Generator
0.1 Hz to 3.5 MHz arbitrary RBW and VBW setting
Zero Span operation with time domain triggering
Linear, log amplitude and frequency display
Sweep, STFFT and direct parallel resolution bandwidth setting
Parallel RMS, Pos./Neg. peak and average detector
Trace Memory option, normalization
Equation based trace display
Peak hold
Noise marker, max and band power display
Quick load of predefined setups

Tracking Analyzer 1 Hz "" 110 MHz

Linear and logarithmic sweep
-50 dBm to 0 dBm adjustable TG power
120 dB dynamic range
Use of power correction file and level correction file
Quick load of predefined setups.

Noise Analyzer 1 Hz "" 110 MHz

Measurement of absolute RMS noise power or voltage spectral density
Noise figure measurement
Noise can be referenced to the input or output of devices under test

Mains harmonics analyzer

Mains harmonics measurement according to EN 61000-3-2
requires external current coupler (e.g. TBMHA1) and clean AC supply

Oscilloscope 250 MS/s, DC "" 110 MHz

1 ns/DIV to 1 s/DIV horizontal resolution
Interpolated sampling up to 4 GS/s
Real-time Sampling up to 250 MS/s, 14 Bit
Up to 16 MS sampling size
Various Trigger options
Vertical CIC Filter option for noise reduction
Many automatic measurement features

Demodulator

Direct demodulation into the PC sound system
FM, AM and SSB demodulator
Adjustable bandwidth, center frequency and demodulator parameters
Automatic demodulation parameter measurements

IQ Stream Generator

GNU-Radio data source
Directly stream floating point I and Q data into file or network
Adjustable center frequency and bandwidth

Remote Control

Direct remote control of the EMI Analyzer over network
Text based protocol
EMCview compatible



Standard accessories

ACCESSORIES
The Tekbox TBMR-110M comes with:

1x type-A to type-B USD cable
1x country specific IEC power cord
1x TBFL1 combined attenuator
EMCview software


Recommended options

TBMHA1Mains harmonics current coupler
TBLNA-110M-50DC-coupled low noise amplifier
TBLNA-110M-HZDC-coupled impedance converter


More products TEKBOX

TEKBOX TBMR-110M EMI-ANALYZER 1 HZ-110 MHZ

• EMI Analyzer 1 Hz "" 110 MHz (Measurement Receiver)
• Spectrum Analyzer
• Tracking Analyzer 1 Hz "" 110 MHz
• Noise Analyzer 1 Hz "" 110 MHz
• Oscilloscope 250 MS/s, DC "" 110 MHz


TEKBOX TBPS01 EMC NEAR-FIELD PROBES + TBWA2 WIDEBAND AMPLIFIER

• Slim design for good access in between tightly spaced components
• Shielded loops to avoid picking up common mode noise; insensitive to the human hand
• Frequency range: up to 6GHz, see coupling plots of the respective probes
• SMB connectors to avoid twisting the RF cable when scanning DUTs


TEKBOX TBOH01 5UH LINE IMPEDANCE STABILISATION NETWORK LISN ½ CISPR 25

• Frequency range: 100kHz ½ 110MHz (1GHz, see figure 4 in the manual)
• DC Resistance: 40 mO
• Maximum current: 10A
• Nominal operating voltage range: 0 ½ 60V DC *


TEKBOX TBLC08 50UH LISN LINE IMPEDANCE STABILISATION NETWORK LISN ½ CISPR 16

• Air core inductors
• Line voltage: max. 240V / 50 ½ 60 Hz, CAT ?
• Max. current: 8A @ 23°C
• DUT socket: country specific


TEKBOX TBDA1/14DB, TBDA1/28DB RF AMPLIFIER

• RF driver amplifier
• General purpose wideband RF amplifier


TEKBOX TBHDR1 RF AMPLIFIER

• General purpose gain block
• Pre-amplifier in applications with low noise and high IP3 requirements
• Pre-amplifier for spectrum analyzers, especially in EMC pre-compliance test applications
• Loop antenna amplifier


TEKBOX TBFL1 TRANSIENT LIMITER

• Frequency range: 9 kHz ½ 600 MHz
• Attenuation: 10 dB ½ 0.5/+1.2 dB in-band (9 kHz to 600 MHz)
• Attenuation HP-filter: > 30 dB @ 2kHz
• Maximum continuous RF input power: 5W (+37 dBm) in-band

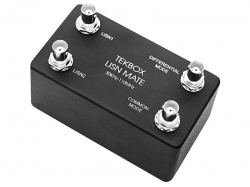

TEKBOX TBLM1 LISN MATE
