Multi-wavelength selectable: 650/850/1300/1310/1490/1550/1625 nm
650 nm visible laser source for break and macrobend detection
Nearly all kinds of wavelengths in optical network are supported
Easy-to-use visible laser source for finding breaks
Modulation in CW and modulated frequencies
Modulation frequencies in 270,1K, 2KHz (1Hz@650nm)
1625nm laser source with optical power meter to measure upper limit loss in DWDM
Dual-way powering system including a 1600mAh battery and an optional power adapter
Low battery annunciator
Auto off function conserving battery life
CE, FCC, FDA certificates

Standard accessories

MLS instrument(embedded rechargeable battery,P/N:AC-BAT-20),
Connector(P/N: AC-CONN-FC-L),
Rubber boot(P/N:AC-RB-20A),
US standard AC Adapter(P/N:AC-ADPT-20-US),
User Manual(P/N:AC-MAN-MLS),
CE Certificate,Warranty Card,Calibration Certificate,
Simple soft bag(P/N:AC-PB-20),
Packing Box(P/N:AC-BOX-20).

More products SHINEWAY

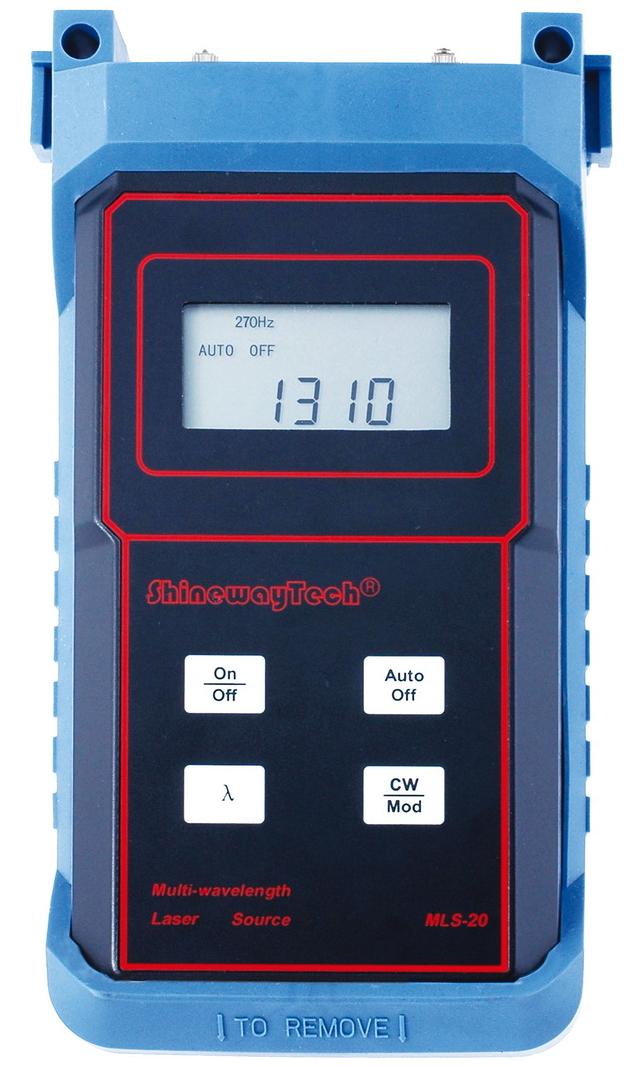

MULTI-WAVELENGTH LASER SOURCE SHINEWAY MLS-20

• Multi-wavelength selectable: 650/850/1300/1310/1490/1550/1625 nm
• 650 nm visible laser source for break and macrobend detection
• Modulation in CW and modulated frequencies
• Modulation frequencies in 270,1K, 2KHz (1Hz@650nm)
• 1625nm laser source with optical power meter to measure upper limit loss in DWDM

OPTICAL CHANNEL CHECKER CWDM SHINEWAY OCC-50

• Clear TFT LCD display (320*240)
• 8-channel measurement (1471-1611 nm)
• Result display in histogram and list
• Data Transfer to PC via USB
• 10 hours continuous operation

OTDR OPTICAL FIBER ANLAYZER SHINEWAY PALMOTDR

• SM: 1310/1490/1550/1625nm (with filter), up to 45dB
• MM: 850/1300nm, 18/22dB
• Ideal for LAN/WAN/FTTx certification & trouble-shooting
• High precision measurement
• 1000 test records storage (Type C)
• USB/RS-232 data interface
• 8 hrs continuous operation/20 hrs standby
• Dust-shock proof (2m drop test)

RF DIGITAL POWER/WATT METER SHINEWAY DPM-50

• Measures 2G/3G wireless network
• GSM900/1800, CDMA800/1900, TD-SCDMA, WCDMA, CDMA2000, WLAN 2.4G & WiMAX or user-defined band
• High-accuracy forward/reflected power, VSWR, Return Loss & load power measurement
• Monitor function & test data saving
• Standard N(F) connector supports various transmission cable & antenna
• USB & DB9 interface

SHINEWAY OPM-15/25 OPTICAL POWER METER

• Interchangeable connectors: FC/SC/ST
• Dual-way power supply: 9V alkaline battery/AC adapter (optional)
• Pocketsize, lightweight and damp-dust-shock proof
• Power saving: Auto-off setting

SHINEWAY MTP-200-OSA OPTICAL SPECTRUM ANALYZER / CHANNEL ANALYZER

• Channel power measurement
• Channel threshold detection
• In-band OSNR measurement

SDH/PDH/STM/E1 DATA TRANSMISSION ANALYZER SHINEWAY DTA-SDH/155

• Analysis and evaluation of SDH and PDH networks andequipment up to 155Mbps.
• According to ITU.T G.821, G.826, G.828,G.829, M.2100, M.2101.
• Tandem Connection Monitoring (TCM) and APid tests.
• Support pointer adjustment test.
• Automatic Protection Switching (APS).
• Round trip delay measurement (STM-1 and E1).

GIGABIT/BER ETHERNET TESTER SHINEWAY GET-100

• Electrical and optical ports with rate at 10/100/1000Mbps
• Ergonomic, creative design, and easy to carry
• IEEE 802.3, RFC1242, RFC2544 compliant
• L1/L2/L3 BER Test
• Full RFC2544 benchmark test
• Support VLAN test function
• Jitter Test

PON OPTICAL FIBER POWER METER SHINEWAY PPM-30

• Specially designed for FTTx/PON (B/E/G) applications
• Simultaneous Triple-play PON signals measurement: 1310/1490/1550nm (Voice/Data/Video)
• Pass/Warning/Fail assessment
• Pass-through test: Applicable anywhere on PON
• Optional Visible Fault Locator for macro bend detection and fiber identification
• Optional SM/MM Power Meter and Stabilized Laser Source

OPTICAL FIBER POWER METER/ LASER SOURCE LOSS TEST SET SHINEWAY OPM-15/ SLS-21

• OPM-15 Optical Power Meter
• SLS-21 Stabilized Laser Sources
• Applicable on singlemode/multimode fibers
• Quick response, no warm-up
• Interchangeable connectors: FC/SC/ST
