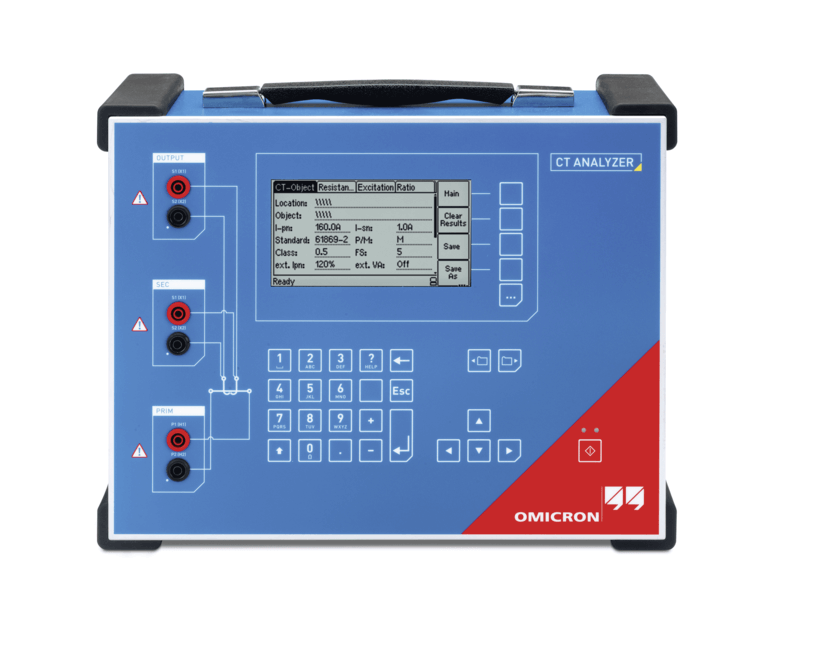

Omicron CT Analyzer Current transformer testing, calibration and assessment

Code: Omicron CT Analyzer



Datasheet PDF, 3.77 Mb


Description

The CT Analyzer automatically determines all relevant current transformer values and compares the results with the selected standard. The device evaluates the current transformer as per the IEC, IEEE or national/self-defined standards within seconds with the push of a button.



It facilitates fast and economical on-site testing and calibration of metering and protection current transformers. Manufacturers of current transformers, high-voltage transformers and switchgear also use the CT Analyzer for tests during development and production.

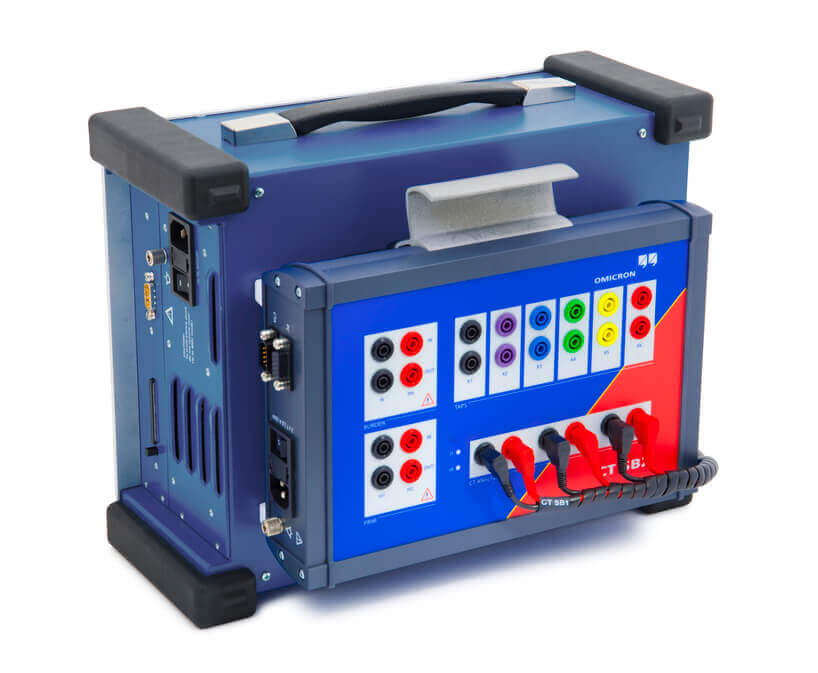

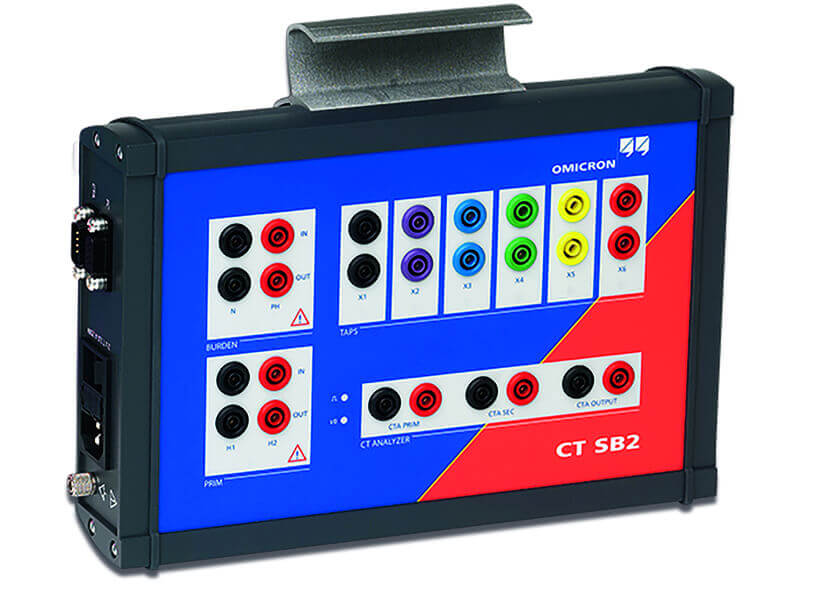

The CT SB2 switch box is available as an optional accessory to the CT Analyzer for automated testing of current transformers with multiple taps, without the need for complex and time-consuming rewiring.



Features:

  • Highest measurement accuracy: 0.02 % / 1 min when calibrating on site
  • Very small and lightweight (< 8 kg / 17.4 lbs), easy to transport for on-site testing
  • Automatic evaluation according to IEC, IEEE and to customized or local/national standards
  • Short commissioning times (duration of the automatic test < 1min)
  • Excellent workplace safety - Tests run at max. 120 V
  • Integration into testing routines using Remote Interface Control
