Protection Relay Test Systems | OMICRON

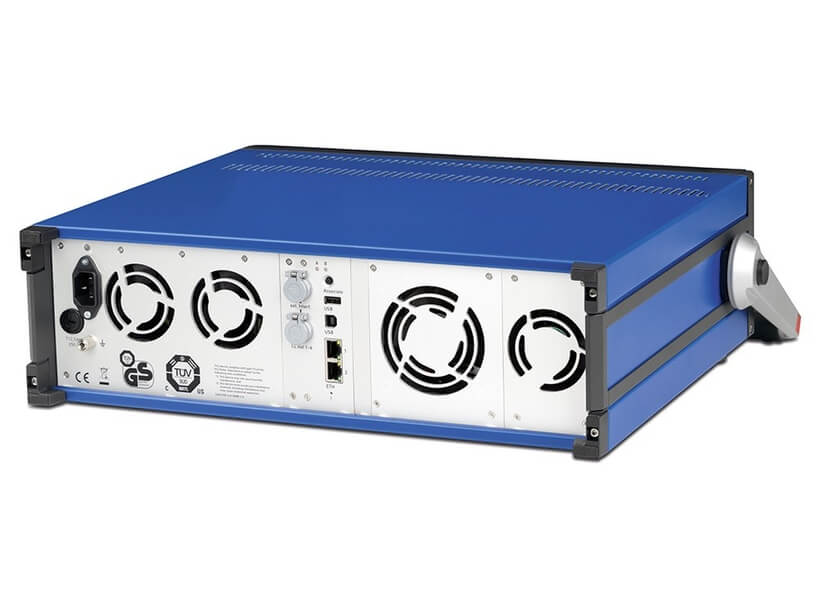

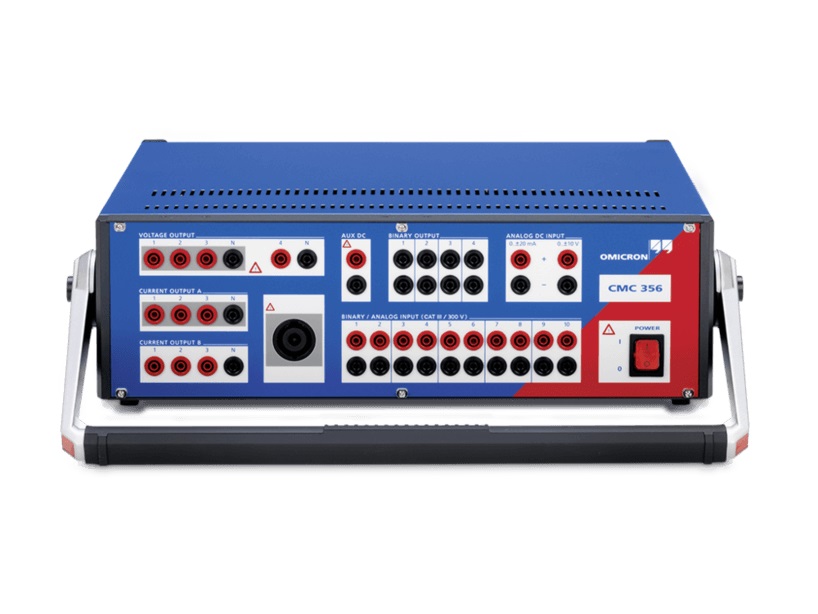

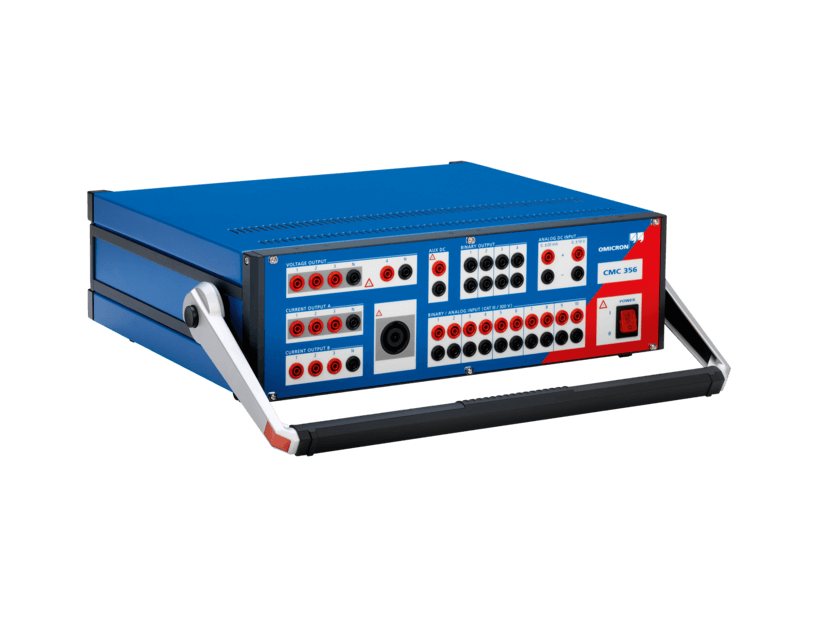

Omicron CMC 356 Universal relay test set and commissioning tool

Code: Omicron CMC 356

Datasheet

PDF, 0.63 Mb

Description

The CMC 356 is the universal solution for testing all generations and types of protection relays. Its powerful six current sources (three-phase mode: up to 64 A / 860 VA per channel) with a great dynamic range, make the unit capable of testing even high-burden electromechanical relays with very high power demands.

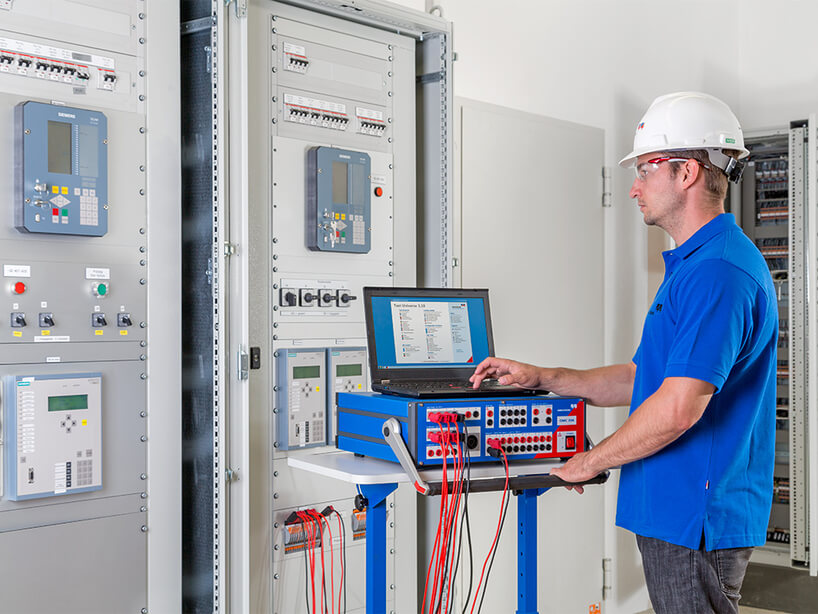

The CMC 356 is the first choice for applications requiring the highest versatility, amplitude and power. Commissioning engineers will particularly appreciate its ability to perform wiring and plausibility checks of current transformers, by using primary injection of high currents from the test set.

Features:

Powerful current sources for testing even high-burden electromechanical relays
High current amplitudes for 5 A relay testing
High accuracy and versatility for testing static and numerical relays of all types
Integrated network for testing IEC 61850 IEDs
10-channel analog measurement and transient recording functionality (option)
