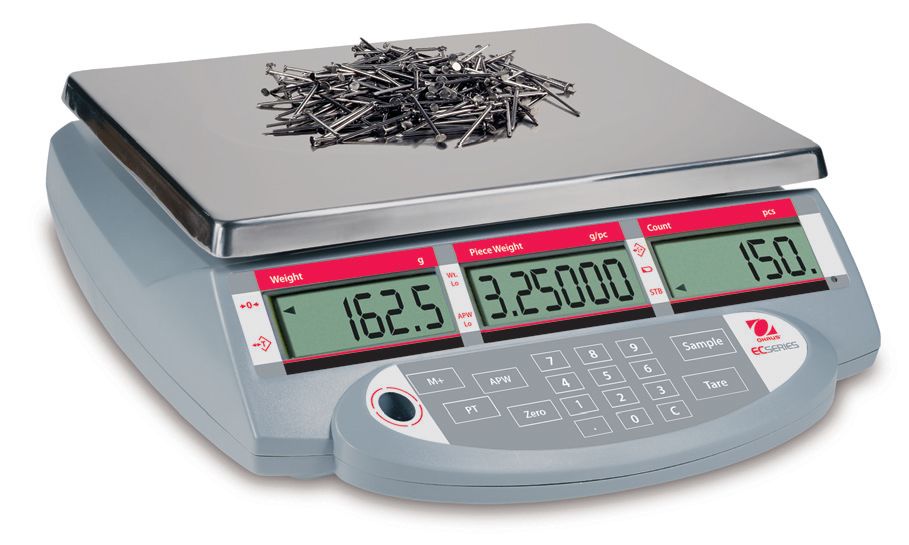

Portable Compact Counting Scale for Commerce Ohaus EC

Code: Ohaus EC




Datasheet PDF, 0.57 Mb

Description

Three-window, backlit LCD with fast display of weight, average piece weight and parts count

• Full counting keypad with numeric keys

• Pre-set Tare and dedicated TARE and SAMPLE keys for fast operation

• Gram or pound weighing units

• 10 Average Piece Weight memory locations for commonly-counted parts

• Accumulator function for weight and parts count

• Auto-optimization feature recalculates APW constantly for enhanced parts counting accuracy

• 80-hour Internal rechargeable battery with power-saving Auto-shut off feature

• Adjustable filtering level and Auto-Zero Tracking for weighing in industrial condition



Recommended options

MODEL CODE

ITEM NR.

CAPACITY

READABILITY

PLATFORM

EC3

80250410

3kg (6lb)

0.1g (0.0002lb)

294x226mm

EC6

80250411

6kg (15lb)

0.2g (0.0005lb)

294x226mm

EC15

80250412

15kg (30lb)

0.5g (0.001lb)

294x226mm

EC30

80250413

30kg (60lb)

1g (0.002lb)

294x226mm
