Operation: Mains power
Construction: Solid diecast metal base, stainless steel pan
Communication: RS232 for sending balance ID and weight
Design Features: Fixed integral weigh below hook, all-glass draught shield with 3 sliding doors on 0.1mg and 1mg models, front levelling bubble, menu and calibration locks
Display: LCD

Application Modes:

Weighing
Parts Counting
Percentage Weighing

The best balance for basic weighing!

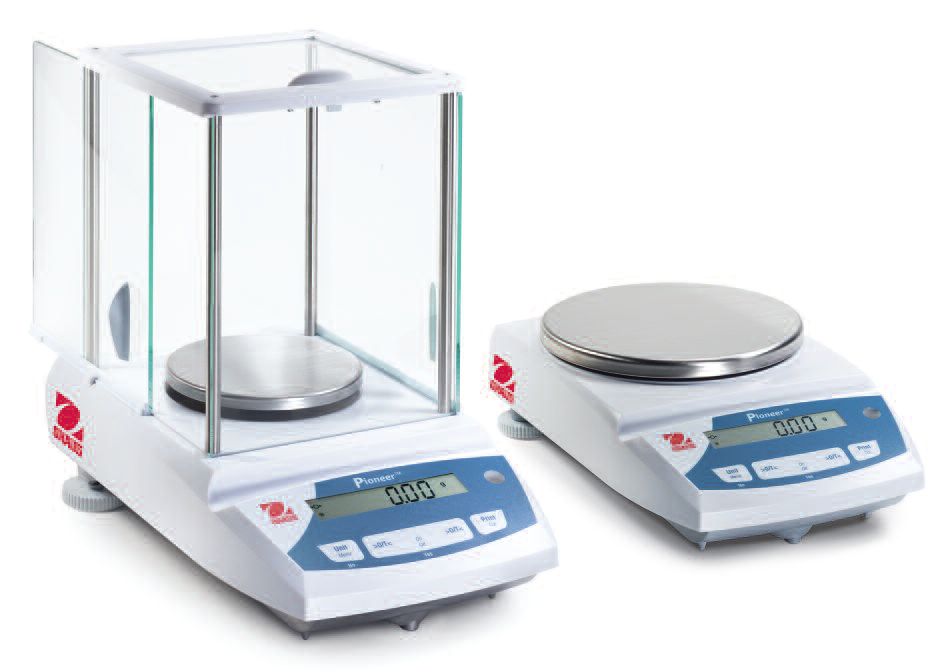

The OHAUS Pioneer™ Series of analytical and precision balances are designed for basic routine weighing in a variety of laboratory, industrial and education applications. With the right combination of performance and features, the OHAUS Pioneer™ offers uncomplicated performance for all your basic weighing needs.

Units of Measurement:

Milligram
Gram
Ounce
Pound
Carat
Pennyweight
Ounce Troy
Grain
Newton
Hong Kong Tael
Singapore Tael
Taiwan Tael
Momme
Tical
Baht
Mesghal
Tola
Custom

Recommended options

Model Code

Item Nr.

Capacity

Readability

Platform

Verification Interval e

IP and NEMA Rating

Test Weight

PA4101C

80251428

4100g

0.1g

180mm

4000g, OIML E2 or ASTM CL 1

PA4101CM

80251429

4100g

0.1g

180mm

0.1 g

4000g, OIML E2 or ASTM CL 1

PA64

80251550

65g

0.1mg

90mm

50g, OIML E2 or ASTM CL 1

PA114

80251551

110g

0.1mg

90mm

100g, OIML E2 or ASTM CL 1

PA214

80251552

210g

0.1mg

90mm

200g, OIML E2 or ASTM CL 1

PA64C

80251556

65g

0.1mg

90mm

50g, OIML E2 or ASTM CL 1

PA114C

80251557

110g

0.1mg

90mm

100g, OIML E2 or ASTM CL 1

PA214C

80251558

210g

0.1mg

90mm

200g, OIML E2 or ASTM CL 1

PA64CM

80251559

65g

0.1mg

90mm

1 mg

50g, OIML E2 or ASTM CL 1

PA114CM

80251560

110g

0.1mg

90mm

1 mg

100g, OIML E2 or ASTM CL 1

PA214CM

80251561

210g

0.1mg

90mm

1 mg

200g, OIML E2 or ASTM CL 1

PA213

80251563

210g

1mg

120mm

200g, OIML E2 or ASTM CL 1

PA413

80251564

410g

1mg

120mm

400g, OIML E2 or ASTM CL 1

PA213C

80251566

210g

1mg

120mm

200g, OIML E2 or ASTM CL 1

PA413C

80251567

410g

1mg

120mm

400g, OIML E2 or ASTM CL 1

PA213CM

80251569

210g

1mg

120mm

10 mg

200g, OIML E2 or ASTM CL 1

PA413CM

80251570

410g

1mg

120mm

10 mg

400g, OIML E2 or ASTM CL 1

PA512

80251571

510g

0.01g

180mm

500g, OIML E2 or ASTM CL 1

PA2102

80251573

2100g

0.01g

180mm

2000g, OIML E2 or ASTM CL 1

PA4102

80251574

4100g

0.01g

180mm

4000g, OIML E2 or ASTM CL 1

PA4101

80251575

4100g

0.1g

180mm

4000g, OIML E2 or ASTM CL 1

PA512C

80251576

510g

0.01g

180mm

500g, OIML E2 or ASTM CL 1

PA2102C

80251578

2100g

0.01g

180mm

2000g, OIML E2 or ASTM CL 1

PA4102C

80251579

4100g

0.01g

180mm

4000g, OIML E2 or ASTM CL 1

PA512CM

80251580

510g

0.01g

180mm

0.1 g

500g, OIML E2 or ASTM CL 1

PA2102CM
