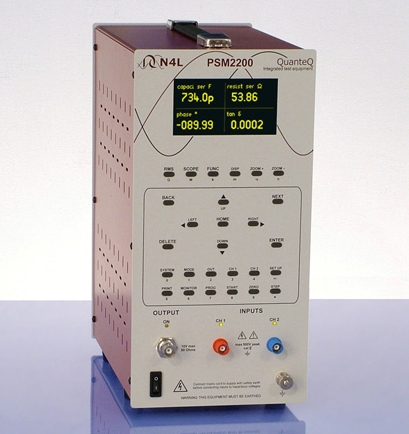

Frequency Response Analyzer 100uH..2.4MHz N4L PSM2201

• Frequency range 10mHz to 1MHz
• Dual frequency SLM mode
• Input up to 100 Vpk
• Oscilloscope mode



• Frequency range 5Hz to 5MHz
• Impedance analyzer
• Oscilloscope mode
• Mains / 12 volt dc / internal battery operation
• Selectable inputs up to 300 Vpk



• Frequency range 10µHz to 35MHz
• Floating differential inputs - 10 Vpk
• Frequency response analyzer
• Vector Volt Meter / Phase Angle Volt Meter
• Impedance analyzer
• Harmonic analyzer



• Frequency range 10µHz to 1MHz
• Floating differential inputs - 100 Vpk
• Frequency response analyzer
• Vector Volt Meter / Phase Angle Volt Meter
• Loop response analysis
• Impedance analyzer
• Harmonic analyzer



• Frequency range 100µHz to 2.4MHz
• Floating differential inputs - 500 Vpk
• Frequency response analyzer
• Vector Volt Meter / Phase Angle Volt Meter
• Impedance analyzer
• Harmonic analyzer



• 0.04% basic accuracy
• Frequency range dc and 10mHz to 2MHz
• Up to 50Arms - 1000Apk direct current input
• 1, 2 or 3 phase versions, Master - slave configuration for 6 phase operation
• RS232, IEEE488, USB, LAN, Torque, Speed and Extension ports



• 16 or 20Vpk @ 5 or 3Apk from DC to 1MHz
• Fixed x10 gain
• High slew rate
• High frequency and current into low impedance
• Stable into any load
• Isolated BNC or 4mm touchproof output sockets



• 14Vpk @ 1Apk from DC to 1MHz
• Switch selectable gain
• High slew rate
• AC, AC+DC or AC with reduced DC
• Stable into any load
• Selectable bandwidth



• 0.05% Basic accuracy
• Frequency range DC and 10mHz to 500kHz
• High precision internal shunts
• Superior accuracy to any external shunt
• 10 millidegree phase accuracy - Necessary for low power factor applications
• 20 Arms (300 Apk) & 1000 Vrms (2500 Vpk) direct input
• 1, 2 or 3 phase versions



• 0.05% Basic accuracy
• Frequency range DC and 10mHz to 1MHz
• 20 Arms (300 Apk) & 1000 Vrms (2500 Vpk) direct input
• 1, 2 or 3 phase versions
• RS232, USB, LAN, Extension and Auxiliary ports
