• Proven ability to make accurate stable measurements in noisy environments such as 765kV substations
• Rapid charge of capacitive loads such as HV power cables
• Additional safety in high energy locations with remote operation
• Always ready to test with fast charge Li-ion battery or a.c. source operation
• Designed to survive harsh environments

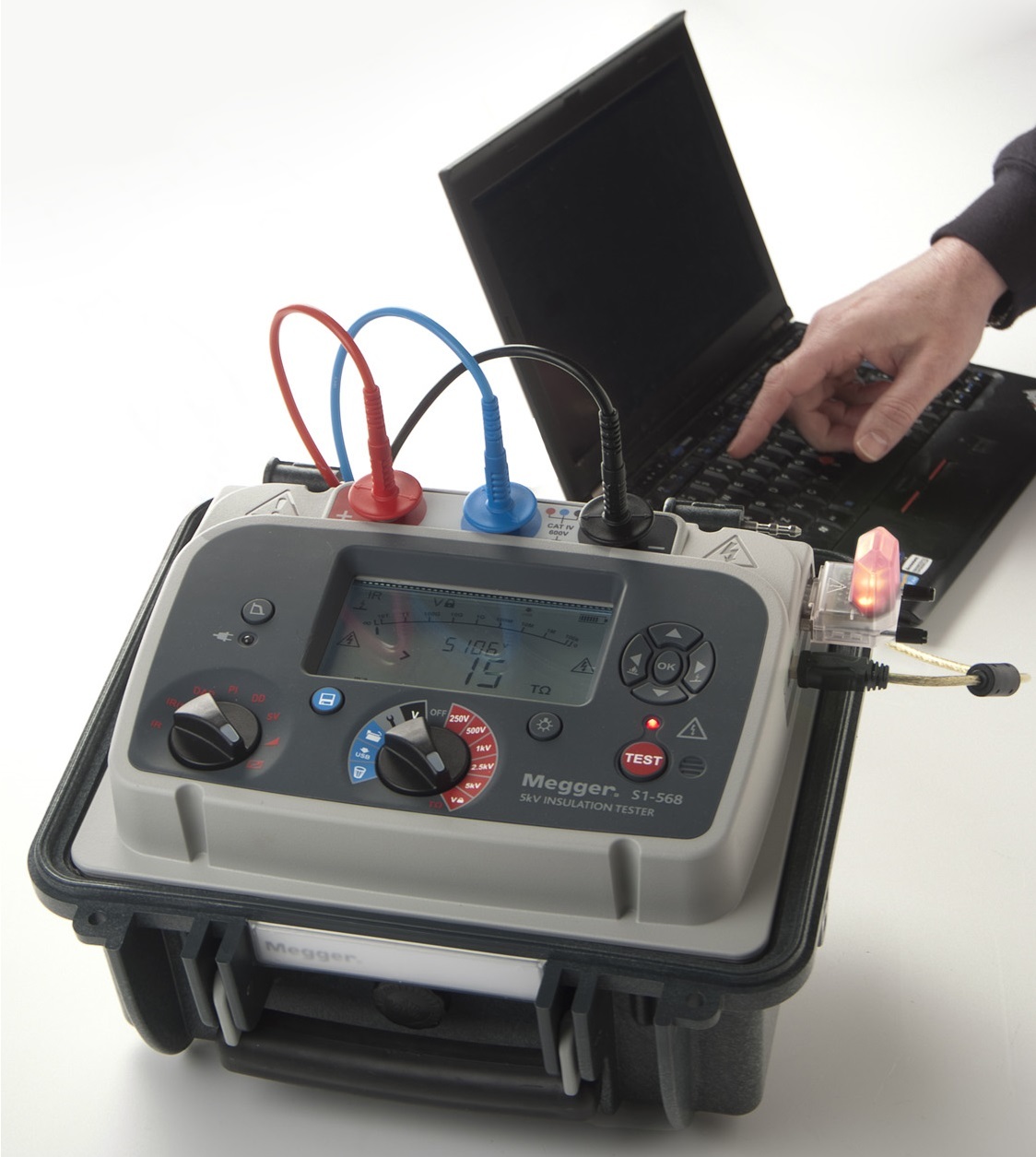

S1-568 5 kV insulation resistance testers has been designed, specified and tested to meet the stringent requirements of power utilities in the 21st century. In addition to being tough, high performance insulation testers the S1-568 Megger offers the ability to perform accurate insulation resistance measurements in extreme, high noise environments, rapid charging of cable capacitance, and even remote operation for both convenience and safety.

For service companies the S1-568 represents an excellent choice with its flexibility and future proofing capability. Quite simply the Megger S1-Series is designed to work wherever you work.

Standard accessories

S1-568-UK 1003-017

S1-568-EU 1003-018

S1-568-US 1003-019

S1-568-AU 1003-020

S1-1068-UK 1003-008

S1-1068-EU 1003-009

S1-1068-US 1003-010

S1-1068-AU 1003-011

Included accessories

User guide CD-ROM

Safety warning sheet

Power lead

Screened USB cable with filters

PowerDB Lite software CD

Product information CD

3 m leadset x 3, medium insulated clips (S1-568, S1-1068) 6220-820

3 m leadset x 3, large insulated clips (S1-1068 only) 6220-811

Recommended options

Optional accessories

HV test leads

3 m leadset x 3, medium insulated clips 6220-820

3 m leadset x 3, large insulated clips 6220-811

3 m leadset x 3, bare clips 8101-181

8 m leadset x 3, bare clips 8101-182

15 m leadset x 3, bare clips 8101-183

Screened HV test lead sets

3 m, 5 kV screened un-insulated small clips 6220-835

15 m, 5 kV screened un-insulated small clips 6311-080

3 m, 10 kV screened un-insulated small clips 6220-834

10 m, 10 kV screened un-insulated small clips 6220-861

15 m, 10 kV screened un-insulated small clips 6220-833

Other

CB101, 5 kV calibration box 6311-077

Calibration certificate - CB101 1000-113

UKAS calibration certificate CB101 1000-047

Fused test probe and clip leadset 1002-913

Control circuit test leadset 6220-822
