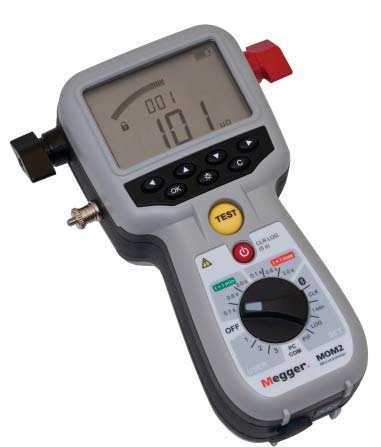

Megger MOM2 220A Microhmmeter BD-59090 BD-59092 BD-59093

Code: Megger MOM2 BD-59090 BD-59092 BD-59093




Datasheet PDF, 0.3 Mb


Description

? Up to 220 A
? Battery powered
? Light weighs only 1 kg
? Safe test - DualGround™
? Auto range: 1 µO to 1000 mO
? Bluetooth® PC communication
? Complies with IEEE and IEC standards

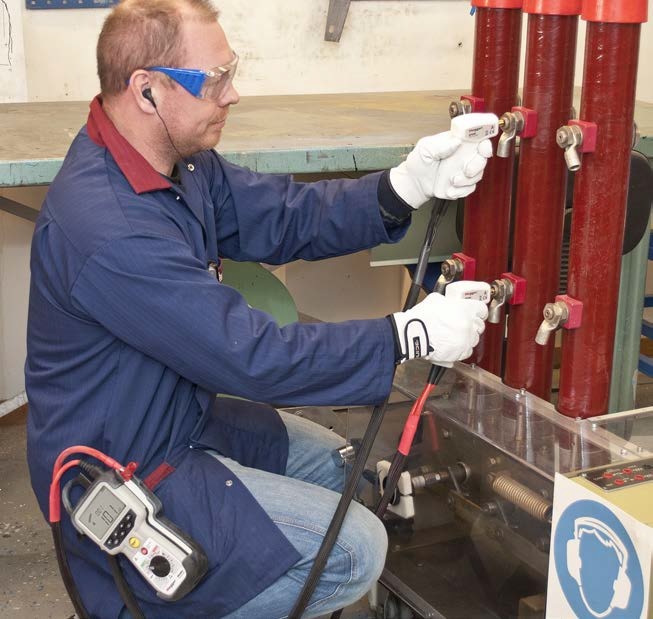

The MOM2 is designed to measure the resistance of circuit breaker contacts, bus-bar joints and other high-current links. This product is designed with safety, ease of use and versatility in mind.

MOM2 uses an ultra capacitor to generate the high output current. The ultra capacitor is able to store a huge amount of energy compared to conventional capacitors and can deliver very high current during the discharge thanks to its very low internal resistance. The microhmmeter can be used anywhere to measure a low resistance value with high accuracy.

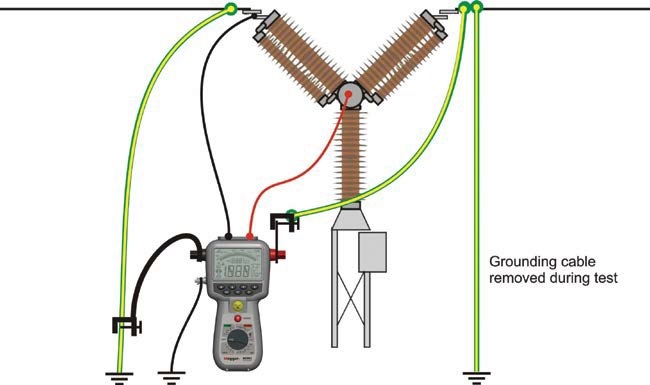

With MOM2 it is possible to make measurements according to the DualGround™ method. This means that the test object will be grounded on both sides throughout the test giving a safer, faster and easier workflow.



Standard accessories

MOM2 BD-59090

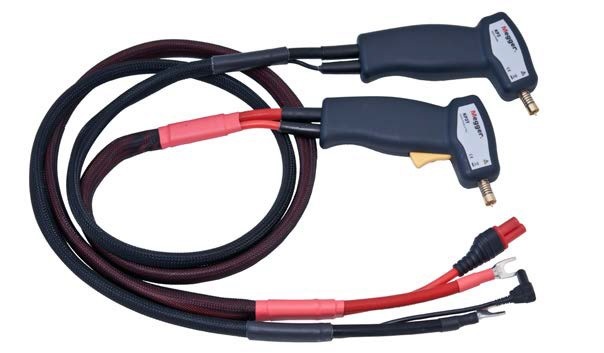

Incl. 2 x 1.3 m (4 ft) test cables with Kelvin probes

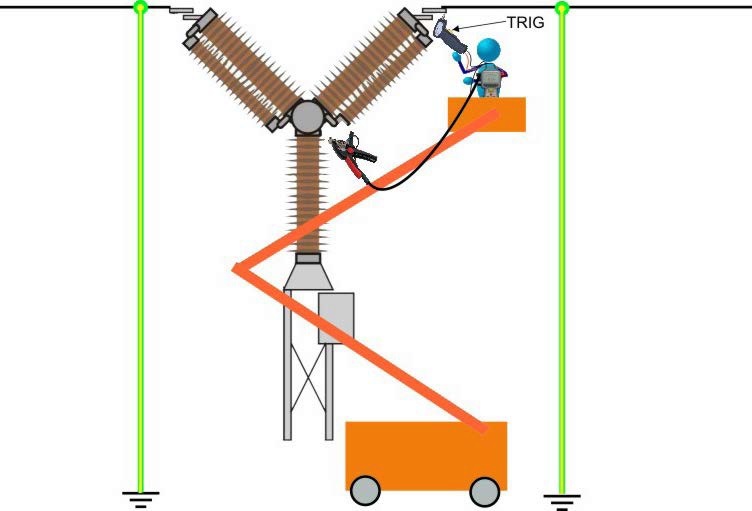

(one with trig button)

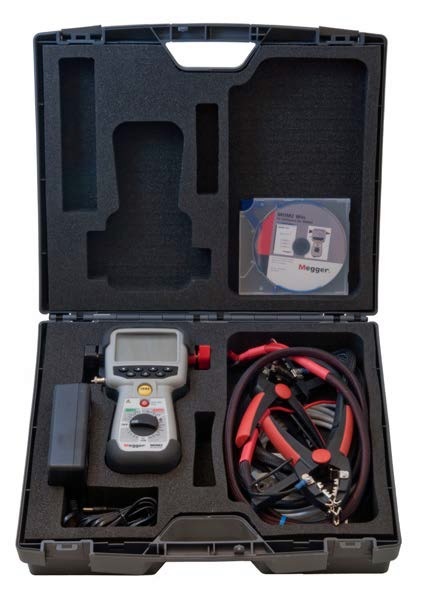

Transport case, Charger, Rubber holster, Carrying

strap, Belt clip, MOM2 Win



MOM2 BD-59092

Incl. 1.3 m (4 ft) test cable red with Kelvin clamp

3 m (10 ft) test cable black with Kelvin clamp

Transport case, Charger, Rubber holster, Carrying

strap, Belt clip, MOM2 Win



MOM2 BD-59093

Incl. 1.3 m (4 ft) test cable red with Kelvin clamp

5 m (16 ft) test cable black with Kelvin clamp

Transport case, Charger, Rubber holster, Carrying

strap, Belt clip, MOM2 Win





Recommended options

Optional accessories

Test cables with Kelvin probes (current & sense)

2 x 1.3 (4 ft) m (one with trig button) GA-90000



Test cables with Kelvin clamps (current & sense)

1.3 m (4 ft) red, 3 m (10 ft) black GA-90001



Current cable with Kelvin clamp

3 m (10 ft) black GA-00372



Current cable with Kelvin clamp

1.3 m (4 ft) red GA-00373



Current cable with Kelvin clamp

5 m (16 ft) black GA-00374



Cable kit 5 m (for use with the std. ground connectors)

Current cable 0.5 m (1.6 ft), Connection plate and

sense cables 5 m (16 ft), Ground cable GA-00380



Cable kit 10 m

Current cable 0.5 m (1.6 ft), Connection plate and

sense cables 10 m (33 ft), Ground cable GA-00382



Cable kit 15 m

Current cable 0.5 m (1.6 ft), Connection plate and

sense cables 15 m (49 ft), Ground cable GA-00384



Bluetooth kit

Bluetooth headset and dongle for PC XC-06000

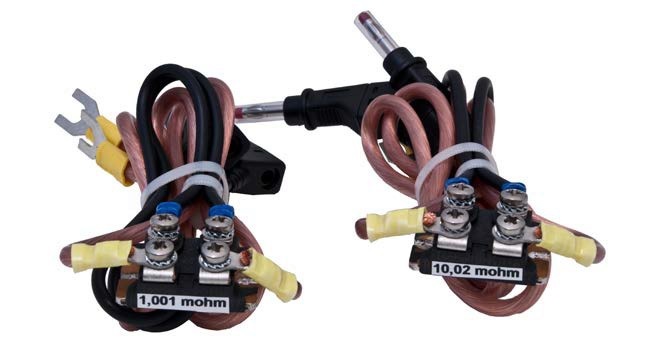

Calibration kit BD-90002

Soft carrying case

For MOM2, Charger and Cables GD-00620
