LIST-MAGNETIC MP-80 v2 Residual Magnetic Field Meter Magnetometer Gaussmeter for magnetism in metal

Code: MP80 MP-80



Datasheet PDF, 0.35 Mb


Description

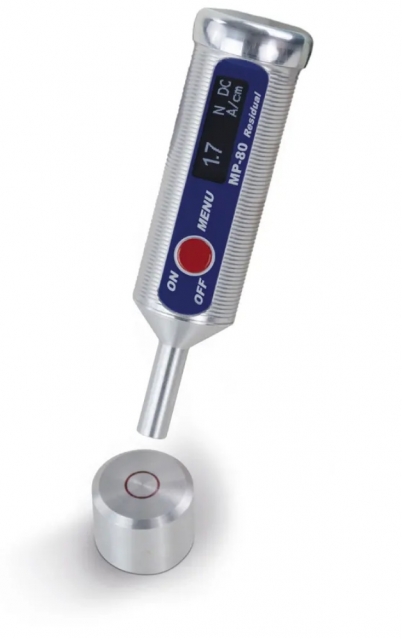

Residual Magnetic Field Meter MP-80 V2
Magnetometer / Gaussmeter for measurement of residual magnetism in metal

Version 2
The MP-80 Version 2 residual magnetic field meter offers a memory for stored measurements and a wireless interface for managing those measurements in the device or the Lima Connect app. These features make magnetic field measurements more efficient, especially when testing residual magnetism and magnetic fields in various applications.

Thanks to wireless connectivity, you can conveniently save and evaluate magnetic measurements for subsequent analyses or test procedures. The Lima Connect app provides a user-friendly interface for managing and evaluating magnetic field measurement systems and easily integrates into your workflows for magnetic field analysis and magnetic flux measurement.

The List-Magnetik MP-80 V2 is a handy, battery-operated measuring device that can quickly and reliably determine residual magnetism, also known as remanence, on ferromagnetic iron and steel parts. It can also be used to check demagnetized parts. It is an ideal solution for measuring and analyzing magnetic field strengths in various industrial applications.

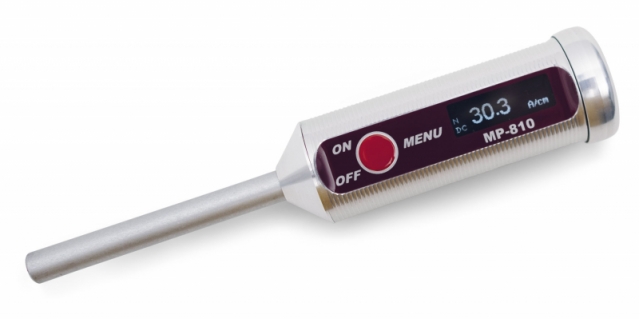

The "little brother" of the MP-810 is particularly strong in the area of weak magnetic fields. Its compact design and metal housing make the device robust and resistant to harsh environments, such as those with oily vapors or moisture.

The hall sensor in the axial field probe is positioned 2.0 mm from the measuring surface. This setup allows for precise and reproducible magnetic field measurements.

The 5 A/cm calibration standard ensures that your device is working correctly. With this calibration standard, you can verify the accuracy of your magnetic measurements at any time and ensure your magnetic field meter consistently provides accurate results. It is ideal for use in magnetic flux measurement and magnetic field testing procedures.

MP-80 and the calibration standard are supplied together in an optimally protected, compact device case.

Manage and send measurement data with a free application
To further process your measurement data, you can pair your measuring device with mobile Android and iOS devices. Or you communicate with a Windows PC. This is made possible by wireless technology. With the Lima Connect app you can manage projects and assign the measuring points on a photo. The measurement results can be statistically evaluated and displayed graphically. The app for Android, iOS and Windows is free.

Technical Data Residual Magnetic Field Meter / Gaussmeter / Magnetometer LM-MP80 / Model MP-80 V2

Measuring units:A/cm – kA/m - Gauss (Oe) – Tesla
Measuring probe:integrated axial field probe, ø 8mm with defined measuring distance of 2.0 mm
Measuring range DC:Residual Magnetism / Remanence in the range 0-100 A/cm
Accuracy:in the homogeneous field ± 0,3 A/cm below 10 A/cm,
± 3% of measured value from 10 A/cm
Resolution:0.1 A/cm or 0.01 mT
Peak Hold:Recording rate approx. 10 readings / second
Operating conditions:0-50 °C
Storage conditions:0-50 °C, 10-90%
Protection class:IP64
Display:OLED Graphic Display illuminated
Analog display:bar graph
Display size:25 x 10 mm
Menu navigation:English, German, French, Italian, Spanish, Hungarian, Polish, Dutch
Data logger:4000 measured values flexibly divisible
Statistics:count / maximum / minimum / average / standard deviation
Interface:wireless interface for communication with Android, iOS and Windows
App for Android, iOS, Windows:free of charge via Google Play Store, Apple App Store, List-Magnetik website
Power Supply:1x 1.5 V AA Mignon
Operating Time:approx. 40 hours
Dimensions:Ø 28 x 103 mm
Packaging dimensions:12 x 12 x 4 cm
Weight:70 g with battery



Standard accessories

Models and Scope of delivery Residual Magnetic Field Meter / Gaussmeter / Magnetometer MP-80
Residual Magnetic Field Meter LM-MP80 / Model MP-80 V2 with integrated axial field probe, calibration standard 5 A/cm, spare battery and case, including calibration certificateResidual Magnetic Field



Recommended options

Recommended Optionals Residual Magnetic Field Meter MP-80
Zero Gauss Chamber NGK-10
In order to be able to carry out the probe calibration for magnetic field measuring devices independently of the earth's magnetic field, a shielded Zero Gauss Chamber helps


More products LIST MAGNETIK

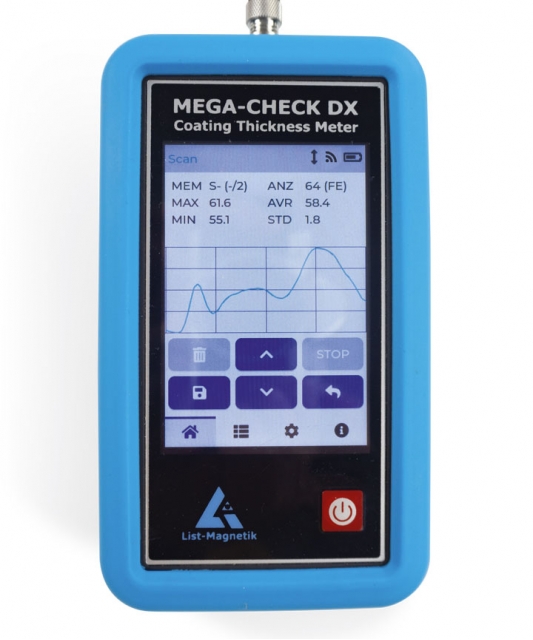

COATING THICKNESS METER LIST-MAGNETIK MEGA-CHECK DX

• Application: Depending on the selection of the probe, measurement of paint, lacquer, plastic and galvanic layers on steel, measurement of insulating layers on non-ferrous metals with automatic recognition of the base material.
• Standards: ISO 2178, ISO 2360, BS 5411, ASTM
• Measuring probe: measuring range depending on probe on steel and iron up to 30 mm (30,000 µm), on NF metals up to 2 mm (2000 µm), minimum area, minimum radius of curvature and calibration value are also depending on probe

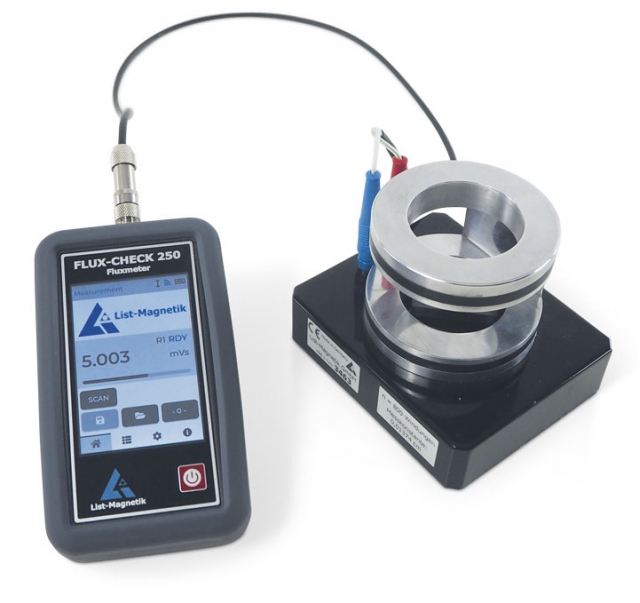

LIST-MAGNETIK FLUX-CHECK 250 MAGNETIC FLUXMETER

• Measuring units: magnetic flux mVs (milli-Volt-second, corresponds to the SI unit mWb / milli-Weber)
• Measuring ranges: 0-10 mVs and 0-250 mVs, automatic or manual range switching
• Real flux: mVs / n
• Magnetic moment: mVs * cm
• Flux density: A/cm or mT
• Accuracy: 2%
• Repeatability: 1%

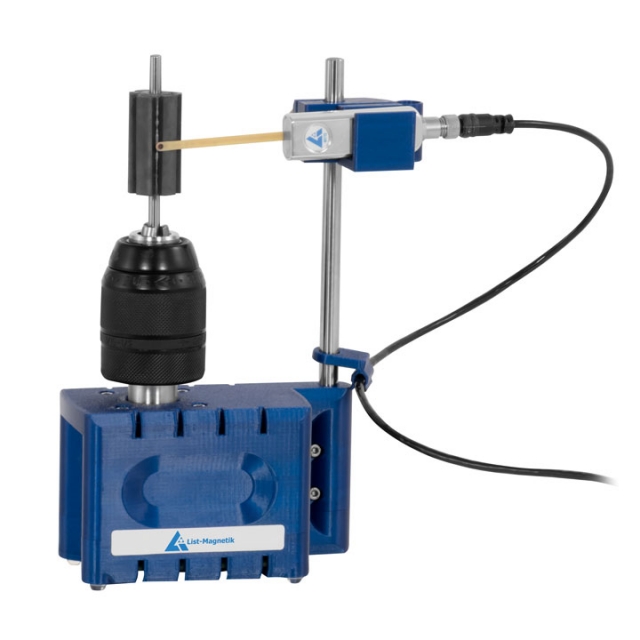

LIST-MAGNETIK ROTOR-CHECK 400 FOR TESTING MAGNETIC FIELD STRENGTH CURVE OF ROTORS

• Measuring units: A/cm – kA/m – Gauss – mTesla switchable (1 A/cm = 0.1 kA/m = 1.256 Gauss = 1.256 Oersted = 0.1256 mT)
• Probe: Transversal Flexible Reed Probe LM-MP-PM4-TR
• Measuring range DC: 0-40,000 A/cm (± 4000mT)
• Accuracy: ± 1 A/cm up to 50 A/cm, ± 2% of measured value from 50 A/cm
• Angle accuracy: ± 0.15°
• Measuring direction: Radial or axial
• Resolution: 0.1 A/cm (0.01 mT)


LIST-MAGNETIC MP-80 V2 RESIDUAL MAGNETIC FIELD METER MAGNETOMETER GAUSSMETER FOR MAGNETISM IN METAL

• Measuring units: A/cm – kA/m - Gauss (Oe) – Tesla
• Measuring probe: integrated axial field probe, ø 8mm with defined measuring distance of 2.0 mm
• Measuring range DC: Residual Magnetism / Remanence in the range 0-100 A/cm
• Accuracy: in the homogeneous field ± 0,3 A/cm below 10 A/cm,
• ± 3% of measured value from 10 A/cm
• Resolution: 0.1 A/cm or 0.01 mT

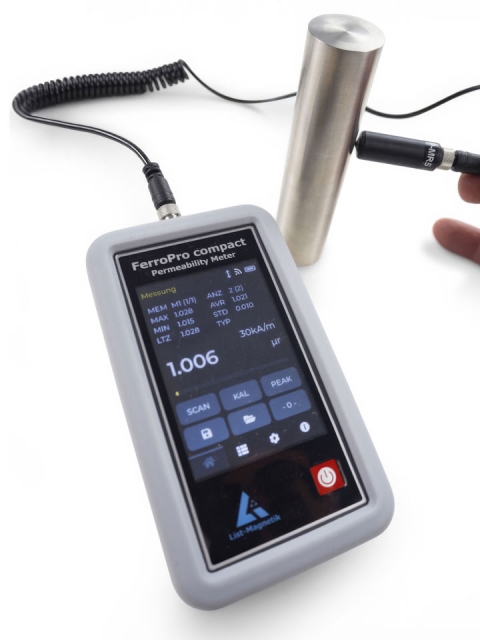

LIST-MAGNETIK FERROPRO COMPACT

• Measuring range: µr = 1.000 to 5.000
• Probe: FPC-5, interchangeable, with separately interchangeable cable
• Accuracy at 20°C: (µr - 1) x 5%, against traceable calibration standards, can be readjusted
• Resolution: 0.001

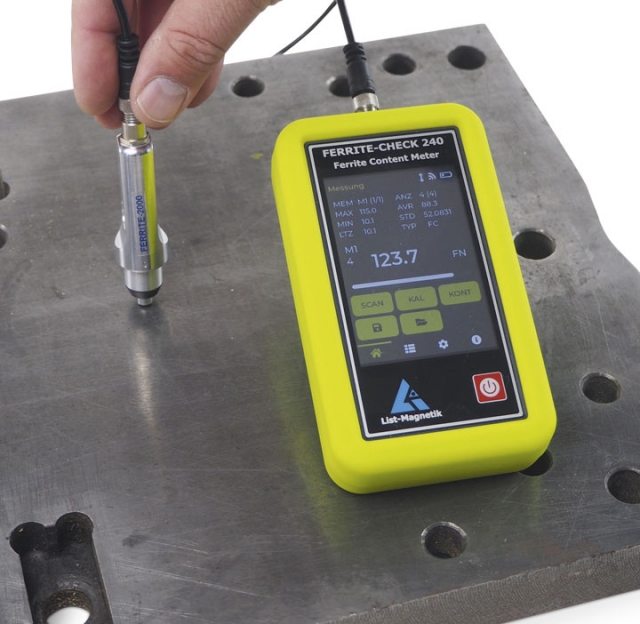

LIST-MAGNETIK FERRITECHECK-240 FERRITE CONTENT METER IN AUSTENITE AND DUPLEX STEELS

• Applications: Measurement of ferrite content in austenitic and duplex steels
• Probe: FERRITE-2000, special probe for ferrite testing. Externally connected
• Measurement units: Fe% and FN
• Measuring range: 0.2 - 100 Fe% 0.2 - 140 FN
• Measurement method: Single measurement or scanning
• Smallest measuring area: ø 2 mm
• Accuracy: 5 %
• Resolution: under 10: 0.01, over 10: 0.1

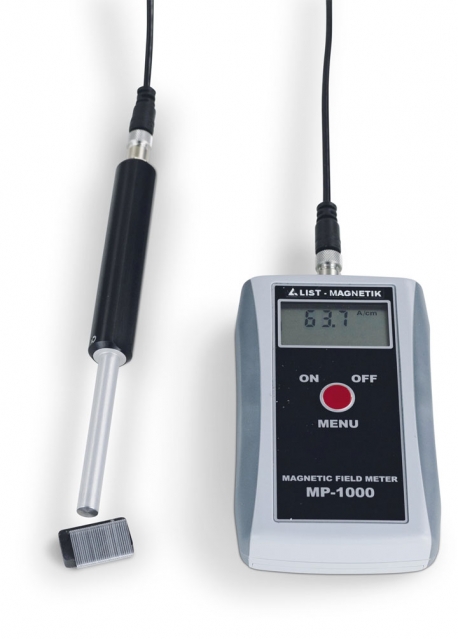

LIST-MAGNETIK MP-1000 MAGNETIC FIELD METER

• Measurement Units: A/cm - Gauss(Oe) switchable (1 A/cm = 1.256 Gauss = 1.256 Oersted)
• Applicable measuring probes: axial probes P-A2 and P-W2, transversal probes P-T2 and P-Z2
• Measuring range DC: 0-20,000 A/cm
• Measuring range AC: 20-20,000 A/cm

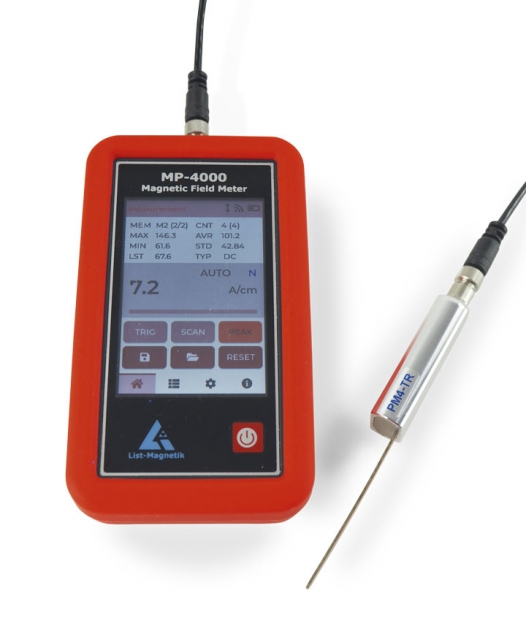

LIST-MAGNETIK MP-4000 GAUSSMETER TESLAMETER FOR MAGNETIC FIELD TESTING METER

• Measurements in A/cm, kA/m, Gauss, Tesla
• Protection class: IP64
• Display: LCD touch panel color 320x480 pixel
• Data logger: 10,000 measurements, flexibly divisible
• App for Android, iOS, Windows: free of charge

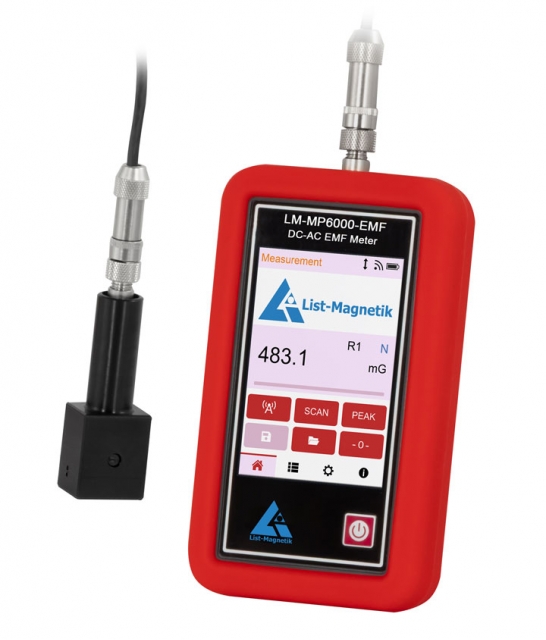

LIST-MAGNETIK LM-MP6000-EMF EMF FLUXGATE MAGNETIC FIELD METER FOR TESTING VERY WEAK MAGNETIC FIELDS ACC. IATA953

• Measuring units: mG, G, µT, mT, A/m
• Probe: Transversal fluxgate measuring probe PMF61
• Measuring range DC: 0-4 G / 0-400 µT (0.4 mT) / 0-300 A/m
• Measuring range AC: 0-3 G / 0-300 µT (0.3 mT) / 0-240 A/m effective
• Accuracy: ± 2% of measured value / ± 0.8 µT
• Resolution: 0.1 mG / 0.01 µT / 0.01 A/m
• Frequency range AC: max. 2 kHz

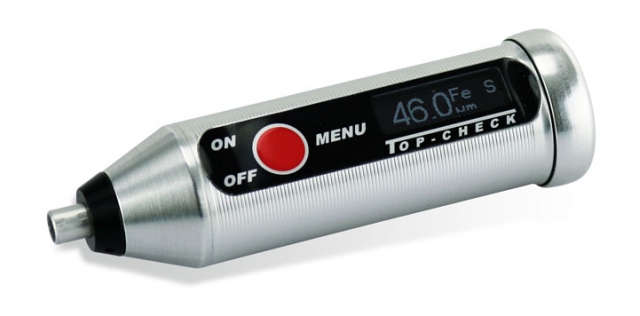

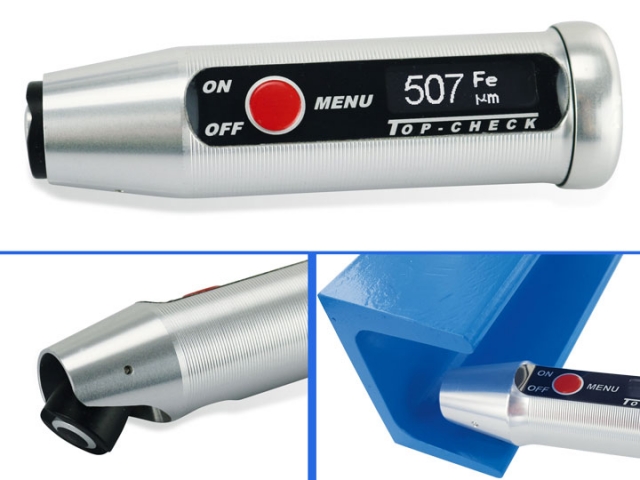

COATING THICKNESS METER TOP-CHECK
