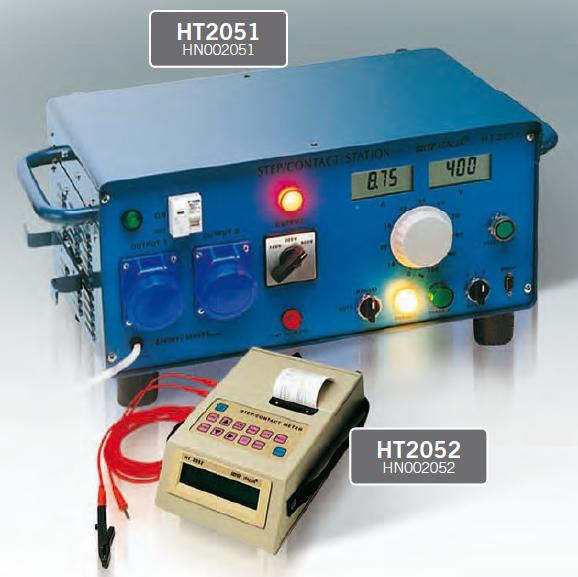

Step Contact Voltage Tester HT Italia HT2051/ HT2052
OBSOLET PRODUCT ( * OUT OF USE )

Code: HT Italia HT2051/ HT2052



Datasheet PDF, 0.36 Mb

Description

HT2051: power unit

  • High protection grade with differential relay, inner temperature control system, power circuit continuity control system
  • Limit contact voltage control for operator’s safety
  • Digital display of voltage and current
  • Manual and automatic (with HT2052) operating mode in the genera-tion of sequences (0, 1, 2) of test current (max. 35A)
  • High output power
  • Synchronization with control unit HT2052



HT2052: voltage unit

  • Input impedance selection: 1M , 1k from keyboard
  • Setting of fault earth current/test current relationship
  • Setting of step/contact voltage threshold values
  • Manual and automatic (with unit HT2051) operating modes
  • Compensation of disturbance voltages on meas. (Erbacher method)
  • Voltage measurement Earth resistance measurement
  • Clock function
  • In-built serial printer for totally/partially printing results
  • Storage of more than 350 measures
  • Connection to PC by means of in-built RS-232 port
  • Software in Windows environment for analyses from PC of stored results


Standard accessories

  • 1 winding system with 4mm2 cable, L=100m
  • 3 metal probes, L=1m
  • 1 cable 4mm2, L=10m with alligator clips
  • 1 cable 4mm2, L= 3m with alligator clips
  • 1 hammer, 1.5kg
  • Couple of test leads for HT2052
  • 2 weight, 25kg
  • TOPVIEW Windows software + RS-232 serial cable
  • Carrying bag for accessories
  • ISO9000 calibration certificates
  • User manuals
