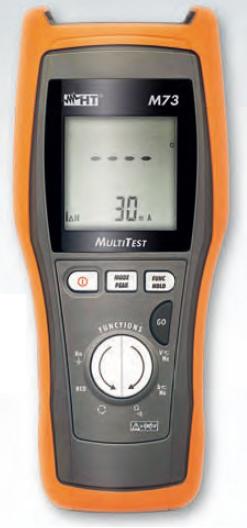

Multifunction Portable Multimeter for Earth Resistance Measurement HT Italia M73

Code: HT Italia M73




Datasheet PDF, 0.31 Mb

Description

GLOBAL EARTH RESISTANCE AND RCD’S TEST SECTION

  • Trip out time measure on AC Standard RCD's
  • Trip out current: 30, 30x5, 100, 300mA
  • Global Earth Resistance with 0.1Ohm resolution
  • Global Earth Resistance without RCD's tripping



MULTIMETER SECTION

  • DC Voltage
  • AC TRMS Voltage
  • Automatic detection of AC/DC signals
  • AC TRMS Current with optional clamp
  • AC TRMS Leakage current with optional clamp
  • Resistance
  • Continuity test with buzzer
  • Frequency with test leads
  • Frequency with optional external clamp
  • Phase sequence indication at 1 or 2 wires method
  • Phase coincidence indication at 1 or 2 wires method
  • MIN/MAX/AVG functions
  • PEAK function with response time 1ms
  • HOLD function
  • Auto Power OFF


Standard accessories

  • C2075: 2 wire cable with SHUKO plug
  • KIT0075: kit of 2 Test leads + 2 alligator clips
  • BORSA75: Carrying bag
  • Calibration Certificate ISO9000
  • Instruction manual
  • Warranty card


Recommended options

  • HT4003: 400A AC clamp
  • HT96U: leakage current clamp 1-100-1000A/1V -54mm max diameter
  • NOCANBA: adaptor for connection HT96U clamp
