FULLTEST3 Multifunction Tester for safety of machinery IEC/EN60204-1 and low voltage switchgears and controlgears IEC/EN61439-1-2

Code: FULLTEST3 FULLTEST-3 HV000003 EN60204 EN61439-1-2




Datasheet PDF, 1.19 Mb
Datasheet PDF, 0.34 Mb


Description

FULLTEST3
Multifunction Tester for safety of machinery IEC/EN60204-1:2016 and low voltage switchgears and controlgears IEC/EN61439-1-2:2011

IEC/EN60204-1 Measuments:
Power Frequency Dielectric withstand voltage with test voltage of 1000VAC
Testing protection against indirect contact:
Continuity of protective conductors with test current 200mA
Automatic disconnection of the supply (RCD, MCB, Fuse)
RCD tripping (RCD AC, A, B) up to 1A on TT Systems
Magneto-thermal protections (MCB curve verificaiton on B, C, D, K) and fuses (gG, aM) on TN Systems
Insulation resistance measurement with test voltage of 500VDC
Discharging of residual voltage V<60V in 5sec/1sec

IEC/EN61439-1-2 Measurements:
Clearances and Creepage distances:
Dielectric withstand voltage with test voltage of up to 3400/5100VAC
Continuity of earth system and protective conductors 10A
Power Frequency Dielectric withstand voltage with test voltage of 1800VAC
Alternative power-frequency voltage test up to 5100VAC
Test on enclosures of insulating material:
Dielectric Withstand voltage with test voltage up to 2835V
Discharging of residual voltage V<60V in 5sec/1sec

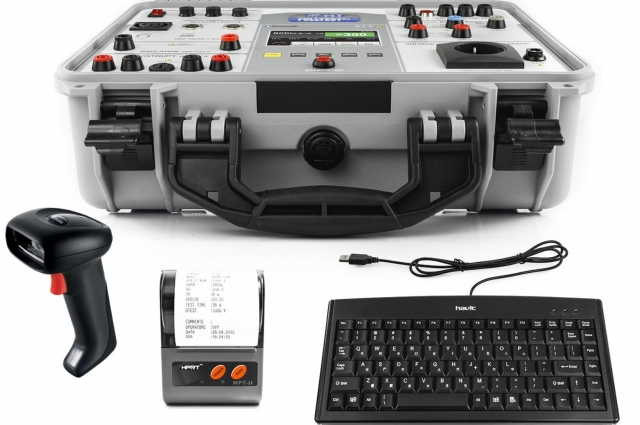

HT Instruments offers a cutting-edge device to carry out all measurements required by the new laws as regards tests to be performed on electric switchboards and machines IEC/EN60204-1 and IEC/EN61439--2. Further to measurements of protective conductors continuity, insulation and dielectric strength, FULLTEST3 is capable of carrying out tests on RCDs type A, AC and B, General, Selective and Delayed, measurements of Line/Loop impedance also with high resolution 0.1m(with optional accessory IMP57), measurement of non-trip earth resistance and leakage current with clamp transducer. It can also carry out test on breaking capacity, protection tripping, I2t tests relevant to magneto-thermal circuit breakers in curve B, C, D, K and fuses type gG and aM. The device is also provided with a "touch-screen colour display and 3 USB ports for connection to PC, USB pen drive, USB printers and possible bar code readers.

Functions
Continuity of protective circuit with 200mA
Continuity of protective circuit with I>10A, V<12V
Continuity of protective circuit with I>25A, V<12V
Insulation with test voltages 100, 250, 500, 1000VDC
Dielectric strength with voltage programmable from 250V to 5100VAC
Discharge time/residual voltage on plugs and internal circuits
Absorbed/leaked current and power at plug of machines
Tripping time/current of type A, AC, B General and Selective RCDs up to 1000mA
Contact voltage
Line/Loop impedance and Ipsc calculation
Line/Loop impedance with high resolution (with optional accessory IMP57)
Non-trip earth resistance
Leakage current (with optional accessory HT96U)
Phase sequence
Timer and limit thresholds selectable through programmable ramps
USB interfaceCollegamento ad accessori opzionali
Provided PC interface with software for Windows
Guidelines
 CEI 64-8
 CEI 64-8/7
 CE MARK
 EMC 2014/30/EU
 EMC: IEC/EN61326
 EN50106
 IEC/EN60204-1
 IEC/EN60335-1
 IEC/EN60598-1
 IEC/EN61010-1
 IEC/EN61187
 IEC/EN61439-1
 IEC/EN61439-2
 IEC/EN61557-1
 IEC/EN61557-13
 IEC/EN61557-14
 IEC/EN61557-2
 IEC/EN61557-3
 IEC/EN61557-4
 IEC/EN61557-6
 IEC/EN61557-7
 LVD 2014/35/EU
 UNE20460


Standard accessories

Codmetel: HV000003
STANDARD ACCESSORIES
2317-IECIV-200-R
2317-IECIV-200-R

Quick Guide and Downloadable Manual
Quick Guide and Downloadable Manual
Calibration report
Calibration report
2310-IECIV-200-B
2310-IECIV-200-B

2310-IECIV-200-V
2310-IECIV-200-V

404-IECN
404-IECN

C2033X
C2033X

5004-IECN
5004-IECN

FT3BRSN
FT3BRSN

FT3HVPRB1
FT3HVPRB1

C2007 + downloadable Software
C2007 + downloadable Software

2310-IECIV-200-N
2310-IECIV-200-N




Recommended options

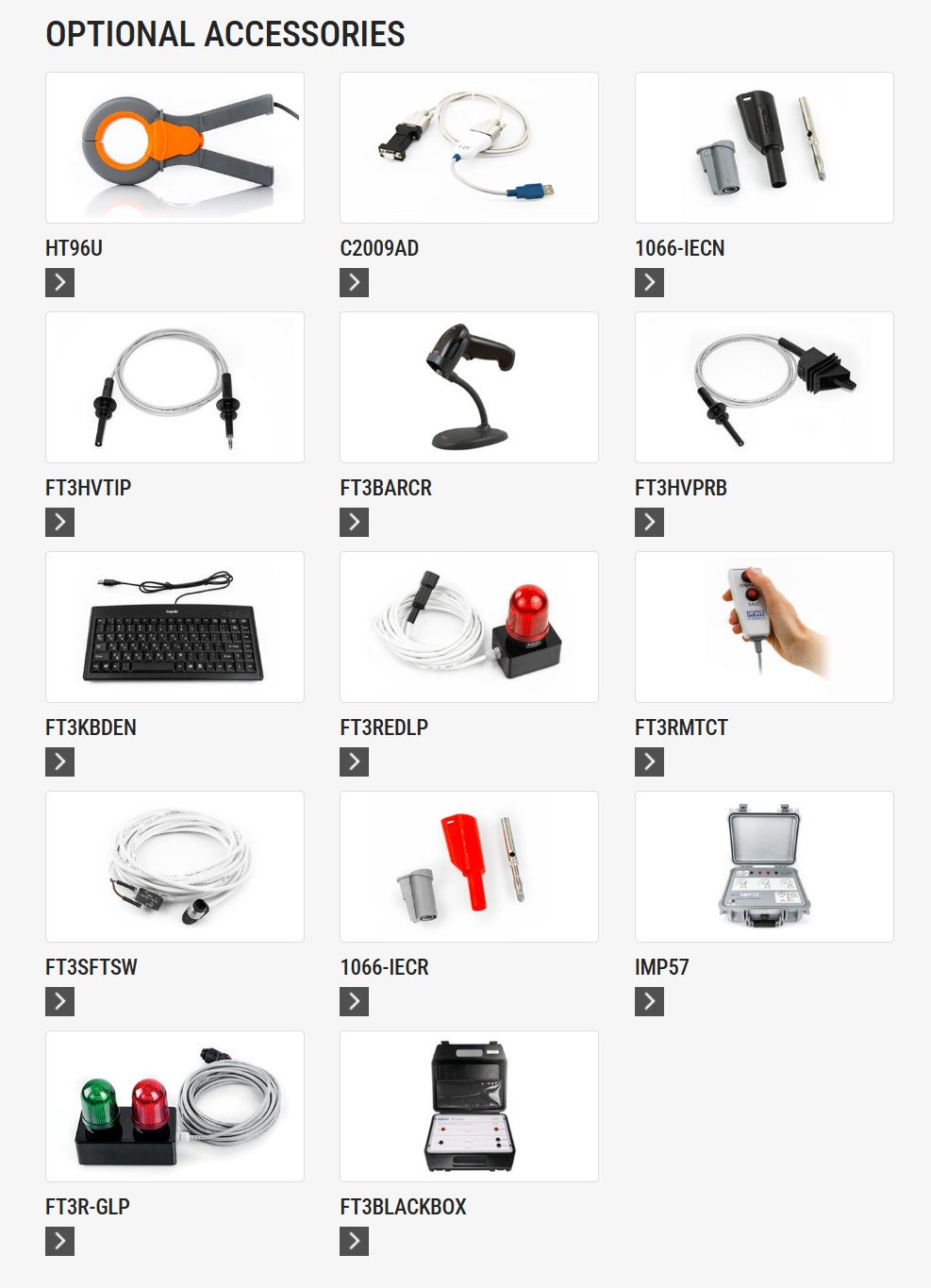

OPTIONAL ACCESSORIES
HT96U
HT96U

C2009AD
C2009AD

1066-IECN
1066-IECN

FT3HVTIP
FT3HVTIP

FT3BARCR
FT3BARCR

FT3HVPRB
FT3HVPRB

FT3KBDEN
FT3KBDEN

FT3REDLP
FT3REDLP

FT3RMTCT
FT3RMTCT

FT3SFTSW
FT3SFTSW

1066-IECR
1066-IECR

IMP57
IMP57

FT3R-GLP
FT3R-GLP

FT3BLACKBOX
FT3BLACKBOX



More products HT ITALIA

STEP AND CONTACT VOLTAGE METER WITH TEST CURRENT UP TO 50A HT ITALIA HT2055

• Step/Contact voltage with separated units
• Synchronization between units
• Test current up to 50A
• Earth resistance measurement
• Ground resistivity measurement
• Internal memory for saving results
• USB and RS-232 ports for communication between units and PC



POWER ANALYZER CURRENT CLAMP METER HT ITALIA HT9022

• DC, AC + DC TRMS current up to 1000A
• DC, AC + DC TRMS voltage up to 1000V
• Resistance and continuity test
• Active, Reactive, Apparent power on Single/Three phase systems
• Active, Reactive energy on Single/Three phase systems
• Power Factor on Single/Three phase systems
• Harmonic voltage/current up to 25th with THD% calculation
• PC connection via Bluetooth



THT80 COMPACT INFRARED THERMOGRAPHY CAMERA 120X90PXL

• IR Resolution 120 x 90 pxl
• Temperature range -20° ÷ 550°C
• Image frequency 50Hz
• Thermal sensitivity / NETD <0.05°C @ 30°C / 50mK
• Field of view (FOV) 50° x 37°



PVCHECKS-ONE COMMISSIONING TESTER FOR PV SYSTEM UP TO 1000V / 30A

• Continuity of protective circuit with 200mA
• Polarity
• Open circuit voltage Voc of PV modules and strings 1000V
• Short circuit current Isc on PV modules and strings 30A
• PV string/field insulation with test voltage 250, 500, 1000VDC
• Measurement of polarization index P.I.
• Dielectric absorption ratio D.A.R
• GFL function to locate the fault position in the string
• Measurement category CAT III 1000V
• OPT function for insulation testing on PV strings in the presence of MLPE



EARTH RESISTANCE AND LOOP IMPEDANCE RCD TESTER HT ITALIA SPEED 418

• Tripping time on RCD type A, AC General and Selective with currents 10, 30,100, 300, 500mA
• Tripping time on RCD type AC General with currents 30, 30x5, 100, 300mA
• Tripping current on RCD type A, AC General and Selective Global earth resistance without RCD tripping
• Line/Loop impedance, also with high-resolution (0.1m )( with optional accessory IMP57)
• Optical/USB interface for connection to PC



SINGLE/ THREE-PHASE NETWORK AC VOLTAGE DATA LOGGER HT ITALIA XL423/ XL424

• TRMS AC Voltage measure up to 600V
• Recording with sampling programmable period
• Manual activation of recording
• RS-232 interface
• Programming with DATALINK software

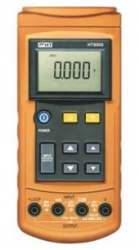

DIGITAL PROCESS CALIBRATOR PORTABLE MULTIMETER HT ITALIA HT8000
