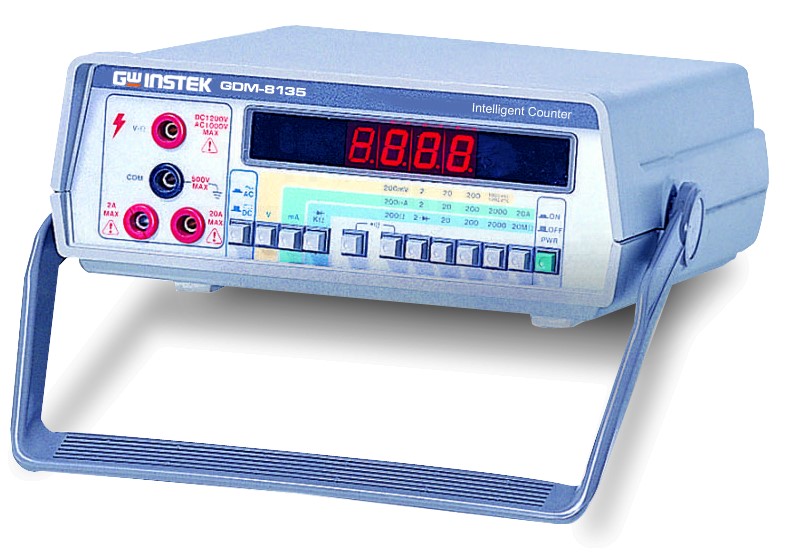

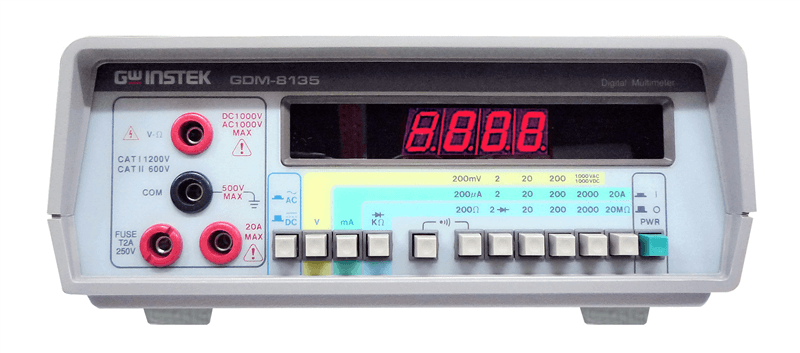

GOODWILL INSTEK GDM-8135

Code: GOODWILL INSTEK GDM-8135




Datasheet PDF, 0.57 Mb


Description

3 1/2 (1999 Counts) LED Single Display.



In terms of cost/performance ratio, the GDM-8135 yields one of the best choices among the DMMs in today's market. It is equipped with 3 1/2 digits, 0.5" LED display in a distinctive red color. Measurement items include DC Voltage/Current, AC Voltage/Current, Resistance, Diode Test, and Continuity with Beeper.



Small voltage offsets are canceled by the auto-zero circuit, and protection mechanism is available for the entire measurement range. All these features provide users with robust measurement experience.



Features:

  • Vast Measuring Functions : AC/DC Voltage, AC/DC Current, Resistance, Diode Test and Continuity Beeper
  • Large 0.5" Red LED Display
  • High Voltage 1000V and 20A Current Range
  • All Range with Protection Circuit
  • 0.1% DCV Accuracy
  • Auto Zero Circuit
