Brand: FLUKE BIOMEDICAL

Multifunction Tester of Gas Flow, Volume, Vacuum, Pressure, Oxigen Concentration Fluke Biomedical VT MOBILE

Code: Fluke Biomedical VT MOBILE




Datasheet PDF, 0.3 Mb


Description

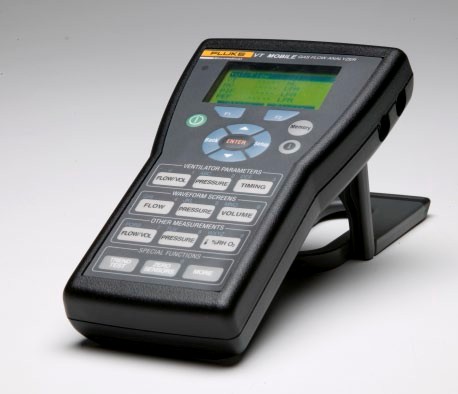

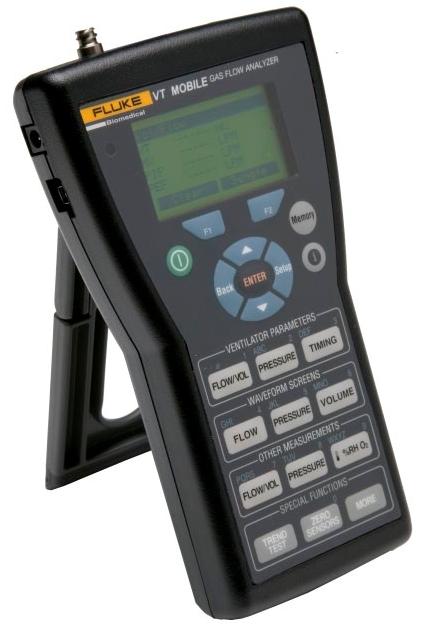

VT MOBILE is a compact and portable general-purpose gas-flow analyzer designed to meet the needs of the traveling technician or engineer. This versatile tool evaluates performance of a wide variety of medical gas-flow/pressure devices and measures 16 ventilator parameters.



The easy-to-use front panel has onboard graphing ability, allowing technicians to view waveforms right on the tool's screen. Test results can be stored in the unit and uploaded to a computer later for viewing or printing using VT for Windows. The VT for Windows PC software provides, among other features, simultaneous display of all 16 ventilator parameters to speed performance testing and other evaluations. EC.6.20 now requires completion of 100% of life-support device preventive maintenance every year. VT MOBILE can help you meet those requirements.





  • Bidirectional flow (high- and low-flow ranges), volume, vacuum, pressure, and oxygen-concentration measurements
  • 16 ventilator parameter measurements
  • Trending and statistical analysis of all measured values
  • Onboard graphical display
  • Portable and compact
  • RS232 for computer control
  • Memory for storing results
  • VT for Windows PC software
  • Optional sensor assembly for temperature and humidity measurements


Standard accessories

  • Accessory kit (VTMOB-7002)
  • CD, includes: quick-reference card, operator’s manual, getting-started manual, other matter (VTPLUS-WIN)
  • Getting-started manual, hard copy and pdf file on CD (MANUAL)
  • Quick-reference card, hard copy and pdf file on CD (QUICK REF CARD)
  • High-flow sensor (VTMOB/HIGH SENSOR)
  • Low-flow sensor (VTMOB/LOW SENSOR)
  • High-pressure adapter, male to female (VTMOB/ADPT FEMALE)
  • Low-pressure adapter (VTMOB-4402)
  • Oxygen-sensor cable, 6 ft (FITTING)
  • T adapter for oxygen sensor (VTMOB-4401)
  • Oxygen sensor (97132)
  • 9 V dc battery, alkaline (BATTERY)
  • Serial communications cable, RS-232, 6 inch (CABLE ASSEMBLY)
  • VT for Windows PC Software (CD ROM)
  • Soft Carrying Case (VTMOB/SOFTCASE)


Recommended options

Adapters

  • VTMOB High-pressure adapter, male to male
  • VTMOB-PWR ADAPTER Power adapter, universal for USA and International



 Cables

  • VTMOB-4405 Temperature and RH sensor, cable and T adapter, 6 inch
