Revolutionizing the field of electrical safety testing, the ESA715 Electrical Safety Analyzer offers an innovative approach to automated testing. Compact yet powerful, this groundbreaking device is an indispensable tool for healthcare technology management professionals. With its ability to perform from basic troubleshooting to comprehensive analysis, the ESA715 ensures uncompromised functionality in the field and in facilities. Adaptable to a range of global electrical safety standards, this all-in-one device seamlessly integrates a safety analyzer and patient simulator, redefining efficiency in medical equipment testing.

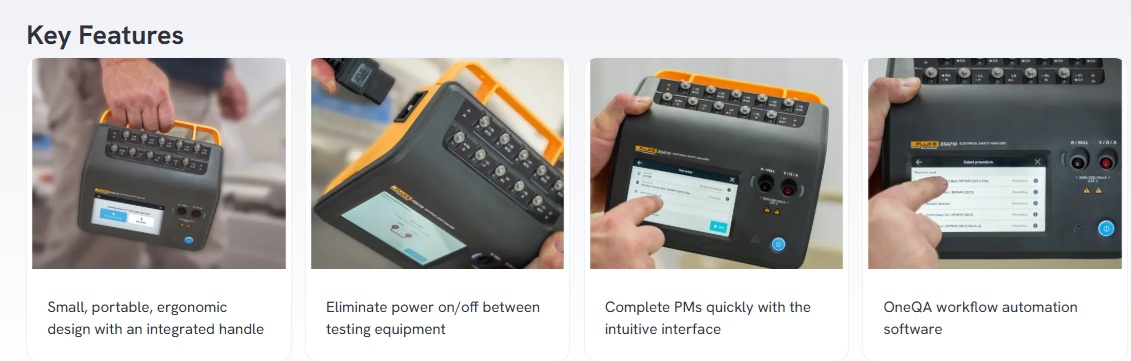

Key features

• 5” Touchscreen with intuitive user interface

• Small, portable, ergonomic design with an integrated handle

• OneQA-enabled workflow automation eliminates need for laptop

• Wireless capability allows you to run test procedures in the field and automatically sync results

• Ten applied parts posts with innovative LED lighting guidance (ECG & Banana)

• Insulation resistance from 50V, 100V, 250V and 500V

• On-board automation with automated test sequences for compliance to key electrical safety standards NFPA 99 / AAMI ES1, AS/NZS 3551, IEC 62353 and parts of EN 50678 / EN 50699, and IEC 60601-1

• ECG waveform tests and dual-lead measurements combine the functionality of a simulator and safety analyzer in a single test tool

• Ability to upload pictures, instructions, and text to procedures

• Easy data entry through barcode scanner, external keyboard or on-screen keyboard

• 20 A at 120 V equipment current capability

• Replaceable mains fuses keep your unit in the field and out of the repair shop

• Rigorously tested for rugged field applications with CE and CSA in addition to Fluke-quality ruggedness for longterm reliability

• Enjoy precision, compliance, and total peace of mind through our comprehensive service and coverage program, eliminating unexpected costs with our Protect+ Program

• Global support network delivering prompt service and peace of mind to Fluke Biomedical customers worldwide

Integrated OneQA workflow automation software allows you to:

• Improve productivity, efficiency and accuracy by automating the execution and analysis of tests

• Standardize testing procedures across all technicians – have everybody work like your senior technicians

• Ditch the laptop – execute OneQA right from the ESA715, keeping you mobile

• Reduce confusion around related to connections and testing with onboard guidance instructions

• Reduce onboarding time standardized test procedures and an intuitive user-friendly interface

• Build, organize and share reports and data on a centralized platform

• Achieve compliance with regulatory agencies with improved traceability

• Collaborate real-time with your team on procedures, data analysis and reporting

• Lower the cost of and improvement to Quality Assurance programs

Standard accessories

Ordering information

Models/descriptions

5577854 ESA715 Electrical Safety Analyzer-US, 120 V

5577724 ESA715 Electrical Safety Analyzer-01-France, 230 V

5577736 ESA715 Electrical Safety Analyzer-02-Europe, 230 V

5577749 ESA715 Electrical Safety Analyzer-03-Isreal, 230 V

5577846 ESA715 Electrical Safety Analyzer-04-Denmark, 230 V

5577751 ESA715 Electrical Safety Analyzer-05-Australia, 230 V

5577760 ESA715 Electrical Safety Analyzer-06-UK, 230 V

5577772 ESA715 Electrical Safety Analyzer-07-Swiss, 230 V

5577785 ESA715 Electrical Safety Analyzer-08-Thailand, 230 V

5577797 ESA715 Electrical Safety Analyzer-09-Japan, 100 V

5577805 ESA715 Electrical Safety Analyzer-10-North America, 220 V

5577810 ESA715 Electrical Safety Analyzer-11-Brazil, 230 V

5577822 ESA715 Electrical Safety Analyzer-12-India, 230 V

5577831 ESA715 Electrical Safety Analyzer-13-South Africa, 230 V

6046090 ESA715 Electrical Safety Analyzer-14-NEMA615

Standard accessories

5517611 Getting started guide

5517610 OneQA quick guide

5579600 USB C to USB A cable

2427138 Probe test banana jack 4MM tip black w/cap

175-290-001 EVZFTP74SW00 (USA/AUS/ISR/THAI/JAPAN)

2099044 Probe test banana jack 4MM tip red w/cap

175-290-003 EVZFTP74RT00 (USA/AUS/ISR/THAI/JAPAN)

4151242 USA/NEMA outlet to NBR14136 socket (BRAZIL)

3326842 Null post adapter

2248650 Carrying case

LINE CORD Country-specific power cord
