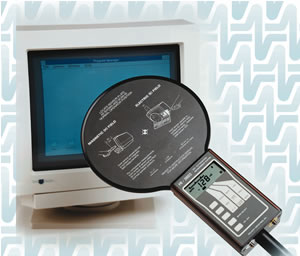

Electromagnetic Field Emission Measuring Tester of Video Displays ETS-Lindgren HI-3603

Code: ETS-Lindgren HI-3603




Datasheet PDF, 0.19 Mb

Description

  • VDT / VLF Survey Instrument
  • Wide Dynamic Range
  • On-Board Data Logging
  • Combination E & H Readings



Electrical Specifications

Data Logging

127 data points using front panel controls

Frequency Response, Electric Fields

2 kHz - 300 kHz, ± 2 dB

Frequency Response, Magnetic Fields

8 kHz - 300 kHz, ± 2 dB

Magnetic Field Units

User Selectable (amperes/meter, gauss, tesla)

Power Supply

2 - 9 volt batteries

Sensitivity, Electric Field

1 - 2000 Volts/meter in three ranges

Sensitivity, Magnetic Field

1 - 2000 Milliamperes/meter in three ranges



Standard accessories

  • Tripod Mounting Socket
  • User Manual
  • Dielectric Handle
  • Custom Carrying Case


Recommended options

  • 491008 Dielectric Floor stand
  • 4413 Serial Interface
  • 491009 Dielectric Tripod
  • HI-3616 Remote Control Readout
  • Dielectric Spacer (30 cm) for VDT measurements
  • Plastic Fiber Optic Cable
