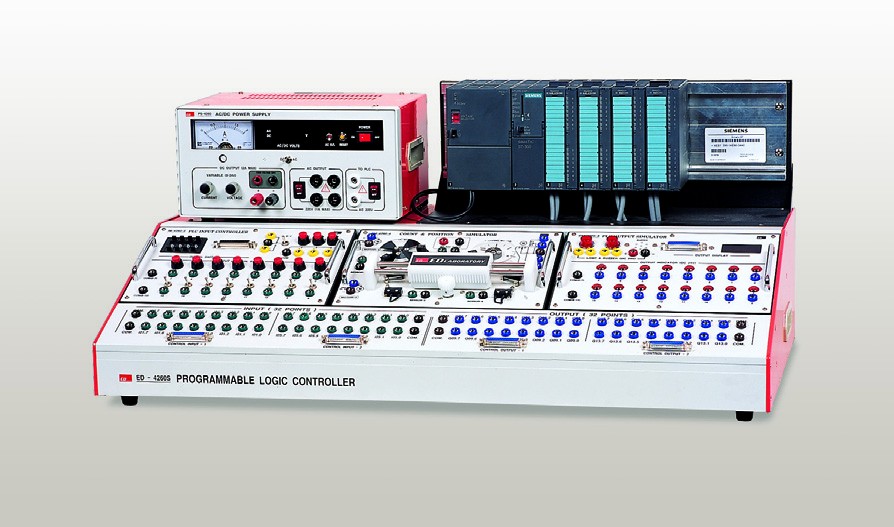

Siemens Simatic STEP7-300 Modular PLC Trainer ED-4260S

Code: ED-4260S



Datasheet PDF, 0.58 Mb

Description

EXPERIMENTS



SPECIFICATIONS

MAIN FRAME

  • DC Output
    •  Voltage : 0~24V Continuously Variable
    • Current : 0~2A Continuously Variable
    • Ripple : 0.02%+2mV
    • Regulation : 0.02%+1mV
    • Voltmeter : DVM 3digits
    • Ammeter : AAM
    • DC Output Protection : Constant current protection (Fixed DC 24V)
  • AC Output
    • Voltage : 220V(Fixed type)
    • Current : 1A(Maximum)
    • Terminal : Safety connector type
    • Protection Circuit : Electronic stabilization of overcurrent (Reset function)
    • Voltmeter : DVM 3digits
  • Input/Output terminal
    • Input : 32 points(8-point COM)
    • Output : 32 points(8-point COM)
  • Module : Basic : 3ea , Option : 17ea
  • Number of Base Slots : 8ea(excluding the power unit and the CPU unit )
  • Input Voltage : AC 220V 50/60Hz
  • Dimension : 760(W) x 430(D) x 340(H)mm



PLC UNIT : SIEMENS SIMATIC STEP7-300

  • CPU : CPU315
    • Memory : 64k
    • Commands : 21k
    • Processing Speed : Binary digits operation 0.3ms, Words operation 1µs, Actual digits operation 50µs
    • Communication Resource : 4/8
    • Internal Memory : 2k
    • Timer/Counter : 128/64
    • I/O Capacity : 1024/1024
    • Digital Signal : 1024
    • Analogue Capacity : 256/128, Step7 standardized by IEC 61131-3
  • Base Module : DIN RAIL
    • Size : 530mm
  • Power Supply Module : PS 307(5A)
    • Input Voltage : 120/230V AC
    • Output Voltage : DC 24V/5A
  • Input Module : SM321(2ea)
    • Input 16 Points(Source) : DC 24V 7mA
    • Response Time : 1.2 ~ 4.8ms
    • 8 Points 1 Common : 20-point terminal
  • Input Module : SM322(2ea)
    • 16 Points : 24V/AC 230V AC, 24V/120V DC 8A
    • Response Time : 0.5Hz
    •  8 Points 1 Common : 20 terminals
  • PC Adapter : Converter for Loader(RS-485 to RS-232C)
  • Other Accessories : Micro memory card
  • Graphic Software Step7 Lite : PLC programming and editing for Step7-300/C7(LAD, FBD, STL) I/O, Analogue, IFM
    • Online Access : MPI
    • OS : WINDOWS 9x, WINDOWS XP, WINDOWS NT



ACCESSORIES

  • Connection Cord(ø4) : 1set
  • PC Cable : 1set
  • AC Power cord : 1ea
  • Program CD : 1set
  • User Manual : 1copy



OPTIONS

  • Electric Sequence Control Simulation Software (EDS-ESS)



Features:

  • SIMATIC STEP7-300 PLC programming and execution
  • Modularization of the devices dssential for PLC I/O commands
  • Experiments for basic command and various application program
  • Binary data experiments with 4digits digital switch and display unit
  • Customizable for various types of STEP7-300 series CPU
