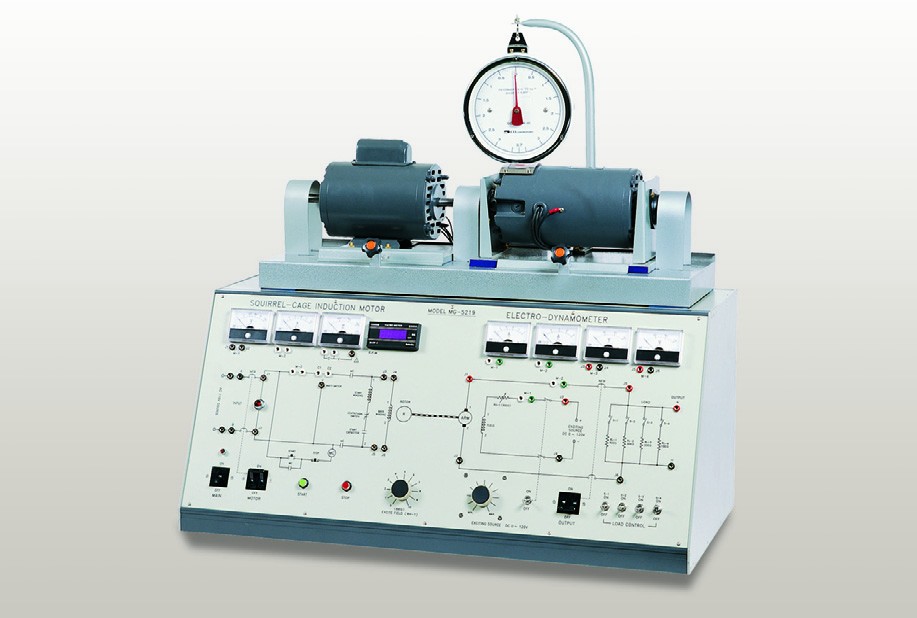

Motor / Dynamometer Trainer Unit MG-5219

Code: MG-5219




Datasheet PDF, 0.51 Mb

Description

MOTOR SECTION

  • Winding Type
  • Squirrel cage rotor
  • Split-phase stator
  • Speed : 1725 RPM
  • Input Voltage : AC 110V, 60Hz
  • Input Current : 6.6A
  • Number of Poles : 4 poles
  • Horsepower : 1/3 HP
  • Start Capacitor : 180~220µF
  • Indication Meter : 1-current, 1-voltage, 1-RPM(digital), 1-watt
  • Overload Trip : 7A(Approx.)
  • Shunt Rheostat : 0~300?, 50W
  • General Output : 120V DC, 2.4A
  • Exciting Power : DC 0~120V, 1A
  • Indication Meter : 2-current, 2-voltage
  • Overload Trip : 4A Approx.
  • Load Resistance : 48?~480?, 500W



GENERAL CHARACTERISTICS

  • Main Input Voltage : AC 220V, single phase
  • Rating : 30 minutes
  • System Size : 960(W) x 860(H) x 475(D)mm
  • Weight : 80kg



GENERATOR SECTION

  • Winding Type : Shunt(Separator)
  • Speed : 1800 RPM
  • Horse Power : HP
  • Number of Poles : 2 poles



ACCESSORIES

  • Patch Cords(ø4 Plug) : 1set
  • AC Power Cord : 1ea
  • Experimental  Manual : 1ea
