Description

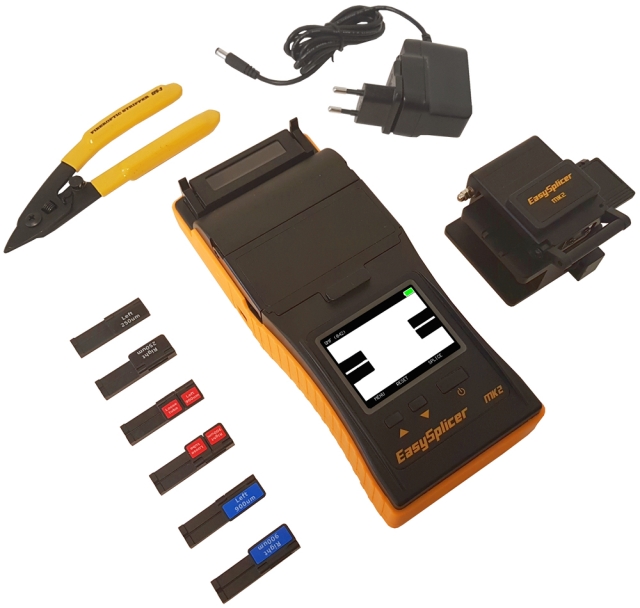

Fusion splicing made easy and affordable with the EasySplicer mk2.
For both Singlemode and Multimode fibers.
Splicing time of less then 7 seconds.
Loss estimation.
Pull test of performed splices.
Built in oven.
Easy to use and to carry along.
Perfect for the FTTH installer.
EasySplicer mk2 is a Swedish made Fusion Splicer, designed for
working daily with fiber optic installations.
It´s small and handy to bring along to any kind of work. The
construction is made very rugged and even if splicing should take
place under good conditions (indoors) it is still designed to be
used out in the field.
EasySplicer mk2 differs a bit from other Fusion Splicers as it is
made with focus on the installer/user. Many of the Splicers on the
market are, even if very competent, difficult to use and require a
lot of education before they can be operated.
EasySplicer mk2 is very easy to learn how to use. It doesn´t take
more than an hour for anyone to learn and start working with it.
EasySplicer mk2 operates with three buttons only and mostly the
user only have to use the main button to perform the splicing.
Still, the precision of the unit is extremely high. It makes typical
splicing with a loss of 0,03 dB (Single mode). After splicing it pull tests
the splice and makes a loss estimation of the splice were it also tells if
something is wrong. Such information is also provided before splicing
(like; Bad fiber , Dirty fiber and Too much offset ).
The battery-pack inside the unit is small but very powerful. The
unit can perform some 60 splices before it needs to be recharged.
Extra battery-packs can also be sold separately (and easily be
exchanged in the unit by the installer).
EasySplicer mk2 is constantly calibrating itself for environment
changes (like; moisture, air pressure and temperature). This can also
be done manually, for ex. when starting the work of the day. Calibration
is very easily performed (within seconds) and makes sure that the
splicing is made perfect.
EasySplicer mk2 is using the V-grove method for splicing (same as
Ribbon-splicers are using) which has made it possible to keep the
size small of the unit. It is easy to service and maintain (even by the user).
In all it makes this unit extremely cost effective.
EasySplicer Fixed is one of the most inexpensive splicers on
the market, yet with a performance of 3-4 times more expensive
units.
EasySplicer mk2 is upgraded with a ceramic/teflon-heater which
also is ready for SOC-connectors (Splice on Connectors).
The EasySplicer mk2 is truly a grand innovation for making Fiber
optic networks. It will revolutionary the ease to build such networks
and it will cut the costs for the customers which will generate
more work for the installers
Technical specification
Splicing method: V-groove (cladding alignment)
Fiber Types: SMF,MMF 50/125 and 62.5/125 um fiber, 250 um primary and 900 um secondary coated fiber.
Fiber Handling: Fiber holders, 3 pairs (250, 900 and Loose tube)
Splice Programs: 3 pre-defined. SMF, MMF & OM1
Typical splice Loss: 0.03dB SMF, 0.01dB MMF
Typical Cycle time: 7s + 35s (splice cycle+ oven cycle)
Sleeve Dimensions: Max 64mm length, 2-7mm diameter supported by oven.
Communication: USB, mini usb plug.
Memory: External SD-Card, Max 32GB (FAT-32).
Monitor: LCD, color, 2,8″, 320×240 pixels
Magnification: Camera 140x
Operating Environment: 0-45°C, max 95% RH non-condensing.
Weight: 800g
Power Sources: External power supply, 6V, 1.5A, 100-240VAC 50-60Hz, Li-Ion battery
Splicing Capacity: 60 splicing cycles
Additional features: Loss estimation, Fault detection of fiber, SD-card for logging etc.
Presentation video EasySplicer MK2VIDEO VIDEO
Datasheet
PDF, 1.63 Mb
