Active Biconical EMC Test Broadband Antenna 20MHz..1GHz Aaronia BicoLOG 20100EX

Code: Aaronia BicoLOG 20100EX



Datasheet PDF, 0.53 Mb

Description

  • Compatible with any Spectrum Analyzer brand
  • Design: Biconical (radial isotropic)
  • Frequency range: 20MHz to 1GHz
  • Max. output power: 100mW AM
  • Nominal impedance: 50 Ohm
  • Gain: 2dBi to 41dBi
  • Antenna factor: See data sheet graph
  • RF connection: SMA socket (18GHz) or N socket using an adapter
  • Calibration points: 196 (5MHz-steps!)
  • Dimensions (L/W/D): 540x225x225mm
  • Weight: 1300gr
  • Warranty: 10 years



Highlights:

  • Excellent gain performance for EMC measurements down to 20MHz
  • Typical standard calibration data (on CD)
  • Coverage of various mobile radio frequency ranges
  • Suitable for field-strength and EMC measurements due to high precision
  • Compact design
  • Can be used in the lab and for open-field application





Examples for possible analysis and measurements within frequency range (20MHz - 1GHz):

  • Pre-Compliance-Test even for very low signals
  • Radio & TV
  • Tetra/BOS
  • ISM434
  • LTE800
  • ISM868
  • GSM900
  • etc.


Standard accessories

  • EMC Antenna BicoLOG 20100E X with preamplifier
  • Typical calibration data with 196 calibration points (5MHz steps!) on CD
  • Heavy plastic carrying case
  • SMA tool


More products AARONIA

RF SPECTRUM ANALYZER 10MHZ..8GHZ AARONIA SPECTRAN HF6080

• Frequency range: 10MHz to 8GHz
• DANL: -145dBm(1Hz)
• DANL with Preamp: -160dBm(1Hz)
• Max. power at RF input: +10dBm
• Lowest sample time: 10mS
• Resolution (RBW): 1kHz to 50MHz
• Units: dBm, dBµV, V/m, A/m, W/m²(dBµV/m, W/cm² etc. via PC software)
• Detectors: RMS, Min/Max
• Demodulator: AM, FM, PM


SPECTRUM ANALYZER FOR ELECTRIC FIELD RADIATION TESTING 100MHZ..6GHZ AARONIA SPECTRAN HF4060

• Frequency range: 100MHz to 6GHz
• Amplitude: -90dBm to 0dBm (typ.)
• Lowest sample time: 100mS
• Resolution (RBW): 100kHz to 50MHz
• Units: dBm, dBµV, V/m, A/m, W/m²(dBµV/m, W/cm² etc. via PC software)
• Detectors: RMS, Pulse
• Input: 50 Ohm SMA RF-input (f)
• Interface: Mini USB 2.0/1.1


MODULAR SPECTRUM ANALYZER RACK 19INCH 1HZ..30MHZ AARONIA SPECTRAN NF RSA5000

• Frequency range: 1Hz to 1MHz (30MHz)
• Analog Input: 2µV to 200mV (typ.)
• With opt. DDC:200nV to 200mV (typ.)
• Resolution (RBW): 0,3Hz to 1MHz(1-3-10 step)
• Units: Volt
• Detectors: RMS, Min/Max
• Demodulator: AM, FM


AARONIA SPECTRAN XFR V5 PRO REAL-TIME SPECTRUM ANALYZER FOR OUTDOOR 9KHZ..20GHZ

• Real-Time Outdoor Spectrum Analyzer Spectran XFR V5 PRO (9kHz (1Hz) - 20GHz, GPS)
• Fastest Counter-surveillance Receiver in the World
• Up to 175MHz Real-Time bandwidth
• POI below 1µS
• Unlimited recording time (needs 1GB / min.)
• Up to 4TB ultra-fast SSD recording storage


AARONIA MAGNOTRACKER ELF-6 MAGNETIC FIELD TRACKING ANTENNA ELF, SLF & ULF 1HZ..9KHZ

• ELF, SLF and ULF Magnetic Field Tracking Antenna
• Frequency Range: 1Hz - 9kHz
• Design: Ferrite core, Active
• Internal Amplifier: 25dB (optional 35dB), battery powered (3-4 hours) or continuosly powered via included power supply
• Impedance: 50 Ohm
• RF connector: SMA (female), optional N connector

ACTIVE DIRECTIONAL BROADBAND RF ANTENNA 380MHZ..8GHZ AARONIA HYPERLOG 3080X

• Compatible with any Spectrum Analyzer brand
• Design: ACTIVE Logarithmic-Periodic (LogPer)
• Frequency range: 380MHz to 8GHz
• Nominal impedance: 50 Ohm
• VSWR: <1:2 (typ.)
• Gain: 45dBi (typ.)

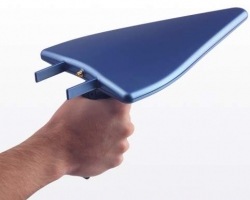

ACTIVE DIRECTIONAL BROADBAND ANTENNA 700MHZ..6GHZ AARONIA HYPERLOG 7060X
