The Wöhler VIS 700 inspection camera offers precisely what professionals have been waiting for: Razor sharp images in HD quality, a focus function for focusing precisely on the object requiring attention, and practical control of the pan&tilt camera head by means of a joystick. Ideal conditions for the inspection of waste water pipes, fl ue gas and ventilation lines as well as NDT applications.
Android iOS
Self-leveling + HD quality
Shake-free, crystal-clear images
360° rotation*
Reaches every corner of the pipe's inner wall
180° pan function*
For precise damage location, even in junctions
Focus function
Focuses precisely on the areas that matter with a tap of a finger

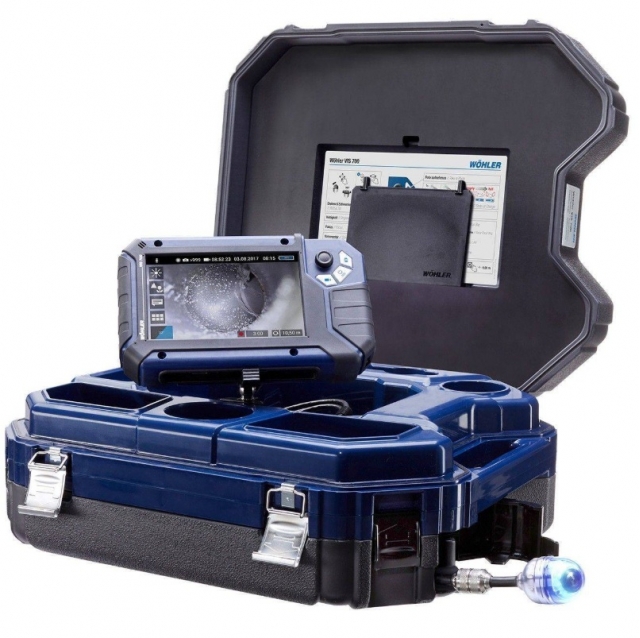

Wöhler VIS 700 HD-Video Inspection System
HD image quality thanks to high-resolution digital image sensor
Motor focus adjustable via the joystick ŗ Waterproof pan and tilt HD colour camera head with Ø 40 mm
Water pressure-proof HD miniature colour camera head with Ø 26 mm
Intuitive operation via 7" HD touchscreen and joystick Å— Locator transmitter in both camera heads enables radio localisation
Position and angle display for orientation in the pipe
Comment function: Damage descriptions can be added to images and voice comments on videos
Live image transmission via WiFi
HAND-POINT-UP
HD touchscreen
Voice recording
Video recording
Photo recording REDO-ALT
Home function washer
Easy cleaning
Locator transmitter Signal-Streamwifi
WiFi
Lithium-ion battery battery-full
USB stick USB-DRIVE
Quick cleaning for long-lasting hygiene: The robust case and the reel with the glass fibre rod can simply be rinsed off.
You can add your own or predefined commentary to each image. Voice comments on video recordings are also possible.
The new fully digital Wöhler camera generation The camera system is at the forefront of technology, providing you with high-definition images that are incredibly sharp and detailed. All of its functions are user-friendly,
allowing you to work with precision and efficiency, impressing your clients with your professionalism.
With the focus function, you have the ability to adjust the focus area selectively. If there is a suspicious area in the image, simply move the focus to that position with precision. A simple tap on the joystick will display that spot clearly. This allows you, as a professional, to plan your work based on visible facts. The angle display helps you navigate safely within the pipe by indicating the angle at which the camera head is aligned with the base of the pipe. If needed, you can use the home function to realign the camera head.
The high-definition images are displayed on a brilliant, high-resolution monitor. Additionally, your colleague can view the images and videos on their tablet or smartphone through WiFi transmission from the Wöhler VIS 700.
Focus on analysing the damage rather than operating the camera. The joystick allows for easy control of the rotating and swivelling optics. Accessing ettings and extras is intuitive with a tap on the touchscreen monitor.
Let’s face it, during inspections, you can’t be squeamish. However, with the robust and leak-proof double-shell case, you don’t have to worry about protecting the technology.
At the end of the day, simply open the service flap and rinse the case shell and camera rod for a hygienic tool with minimal effort.
Applications
Damage analysis, non-destructive inspection and documentation of: 87° bends
Waste water pipes from Ø 40 mm
House connections up to Ø 200 mm
Exhaust systems from Ø 56 mm
Air pipes and ducts
Intermediate ceilings, cavities, shafts
Industrial machines / plants
Functionality
HD touchscreen – the swivelling, rotating and removable
monitor delivers razor sharp images from every angle
Adjustable sharpness range (focus function) ŗ 360° rotatable and 180° swivelling optics – even the
smallest defects are not concealed
Integrated transmitter in the camera head for localisation
with the Wöhler L 200 Locator
Electronic position and angle indication of the camera
head in the display
Home function for aligning the camera head in a straight
position – display parallel to the ground
Bright and arc-going HD pan/tilt camera head with
Ø 40 mm and 60 mm length
Bright and arc-going HD miniature camera head with
Ø 26 mm and 34 mm length
Electronic metre counter with display on the monitor Å— Mains-independent operation due to lithium-ion battery
with up to 4 hours service life
Complete mobile equipment in a robust double-shell case
Damage descriptions and voice comments as image /
video supplements
Quick and effective cleaning of the entire case thanks to
the removable camera reel
Tools Applications
Damage analysis, non-destructive inspection and
documentation of: 87° bends Waste water pipes from Ø 40 mm House connections up to Ø 200 mm
Exhaust systems from Ø 56 mm
Air pipes and ducts
Intermediate ceilings, cavities, shafts
Industrial machines / plants
• modular design allows combining the monitor with different camera heads, pushrods or soft cables • Recording of still images, videos and voice support you to report your inspections properly • Meter counting, home function, level indication and sonde for radio location • the most advanced Wöhler VIS 400 video inspection system • CCS-image technology (Cristal Clear Screen)

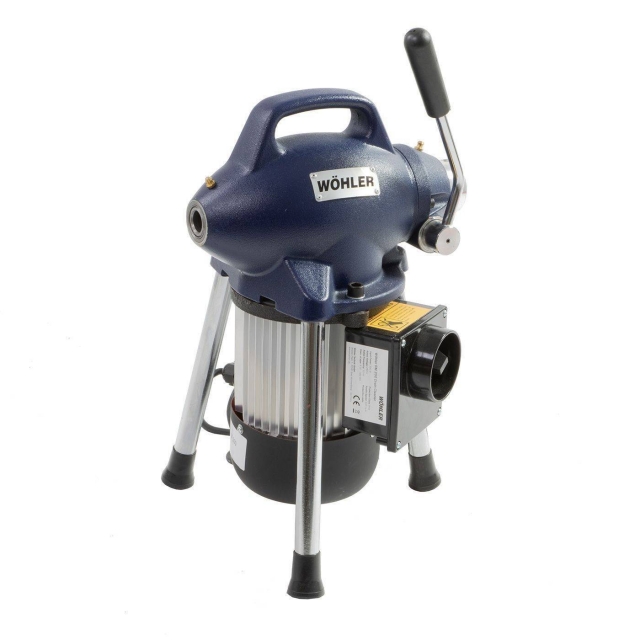

• CLEANING OF WASTE WATER PIPES
• from Ø 40 mm to Ø 100 mm
• CABLE LENGTH can be set by the user with a handy key
• PROTECTIVE HOSE for neat cleaning and protection of home furnishings
• Adapter for safe use of the cable

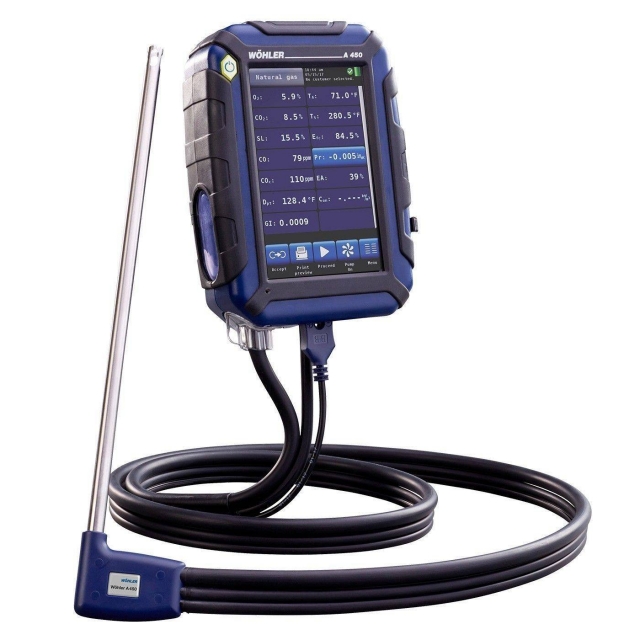

• 5" touch display Shield-check
• 48 months warranty 

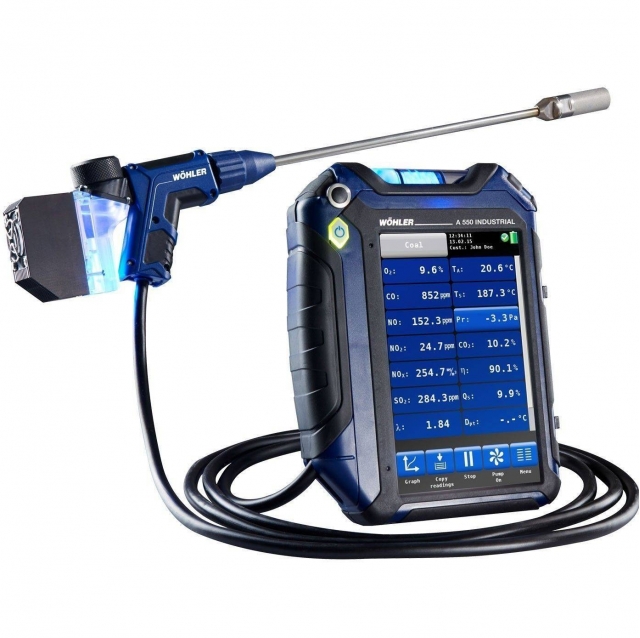

• CO-Sensor up to 100,000 ppm 1
• Printout on site
• Burner setting aid USB-DRIVE
• USB wifi
• WiFi
• PC software laptop-code
• Flue Gas Analysis App

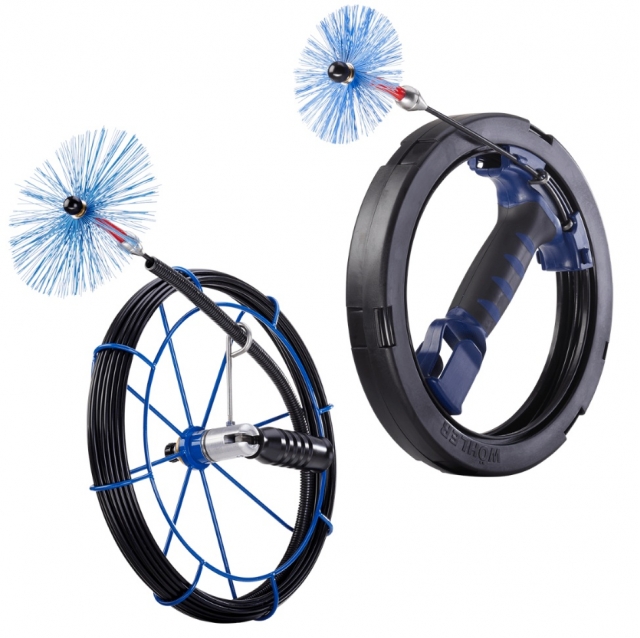

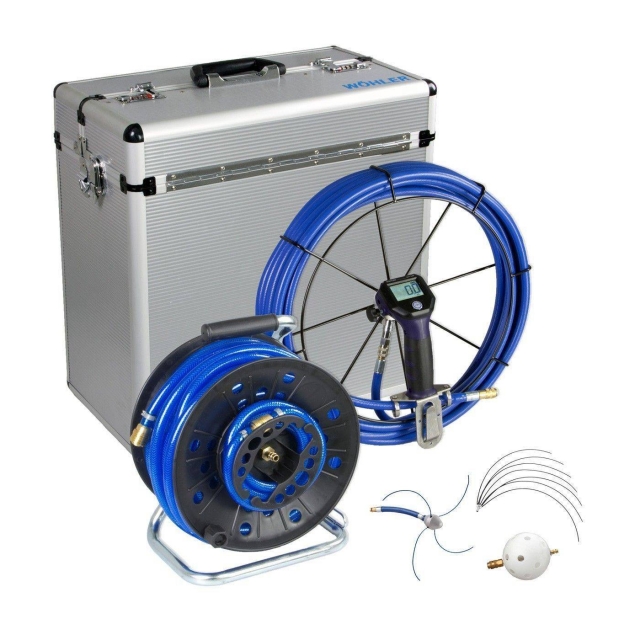

• Appropriate for small, round ventilation pipes up to 125 mm Ø.
• Backwards rotating helicopter nozzle causes a forward moving
• Easy operation
• Cleaning of pipes up to 7 m possible
• Professional Set
• Appropriate for round and angular ventilation pipes
• Easy operation of the Pneumatic Viper due to the belt holder
• Appropriate for small and big pipes
• makes it possible to locate the Wöhler VIS Camera heads Ø 26 mm / Ø 40 mm wirelessly • Locates radio signals transmitted by the camera head - rapidly pinpoints damages • Easy to handle - user guided via display • Bright, easy-to-read color display • Telescopic pole - easily track down damage anywhere • Chalk holder

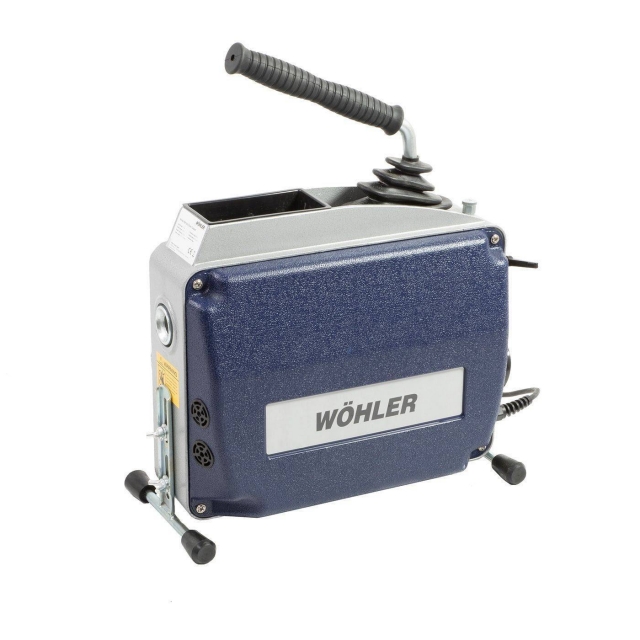

• CLEANING OF WASTE WATER PIPES from Ø 40 mm to Ø 150 mm
• CABLE LENGTH can be set by the user with a handy key
• PROTECTIVE HOSE for neat cleaning and protection of home furnishings
• Adapter for safe use of the cable
• CCS-image technology (Cristal Clear Screen) • Optics pan 360° and tilt 180° - ensure even the smallest damage does not remain hidden from your view • Save pictures and videos on a 4 GB SD card (Wöhler VIS 350) • 20m or 30m Push rod Ø 6 mm

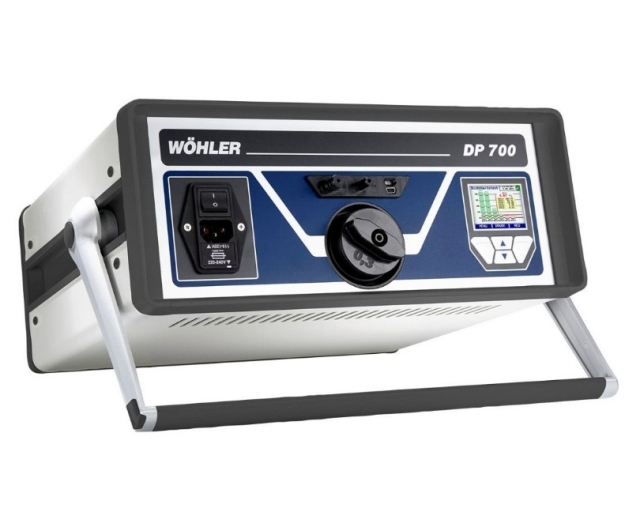

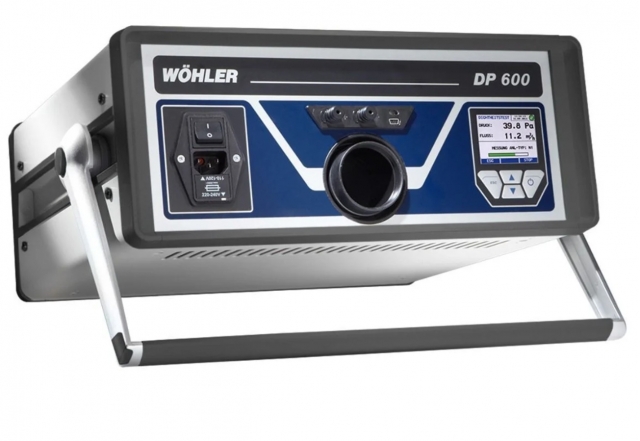

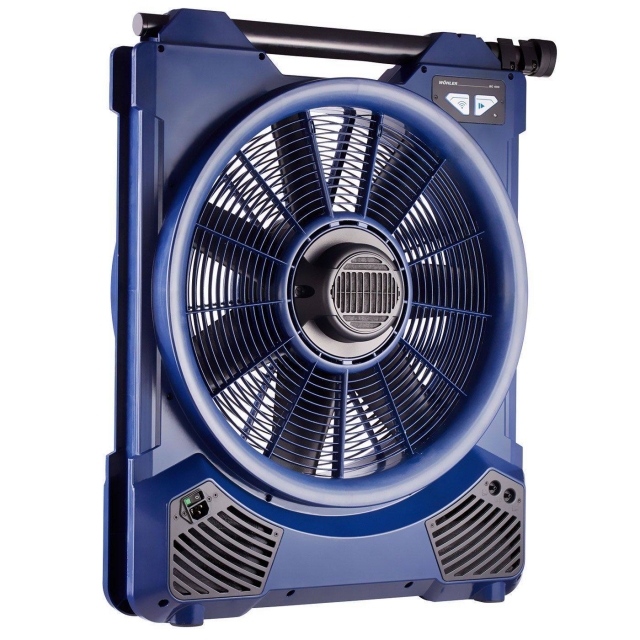

• Tightness testing with leakage rates up to 200.00 m³/h
• Tightness testing of all chimney classes and flue gas systems
• Tightness testing of flue gas systems of combined heat and power plants
• Confirmation of a sufficient combustion air supply according to TRGI sheet G 625 (simple and detailed procedure)
• Stove tightness testing
• Android iOS

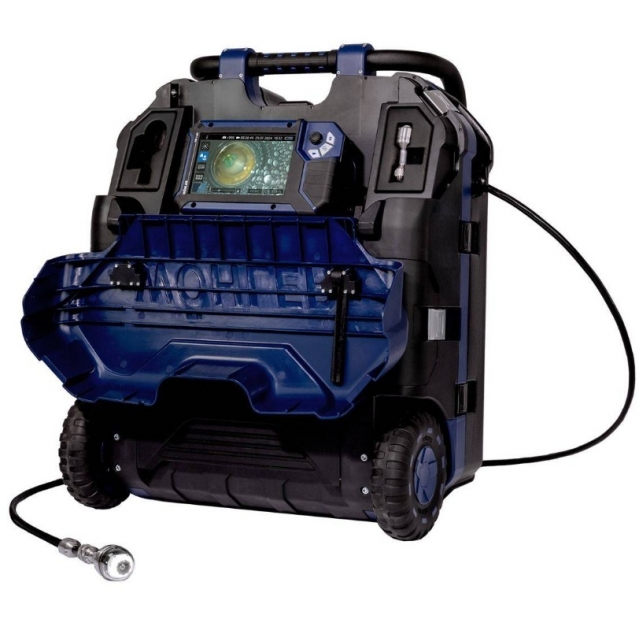

• 60 or 40 m camera push rod
