Digital Function Generator 20 MHz TTi TG2000

• 10 MHz ..12.4 GHz bandwidth
• Measurement range from -50 dBm to +20 dBm
• Replacement solution for conventional power meter and sensor combination
• Simple USB connection to laptop or PC
• Use multiple sensors on one laptop or PC



• Provides an EN61000-3-2 compliant source
• 1000W power capability at 230V
• Up to 4·4A rms load current and up to 10A peak currents



• Compliance quality measurements to EN61000-3-2 and EN61000-3-3
• Measures peak or rms voltage or current, real or apparent power, power factor, phase
• Tabular/histogram of 40 harmonics



• 0.03Hz to 3MHz frequency range
• External seven digit 120MHz counter
• Simultaneous display of frequency & amplitude
• High waveform quality at all frequencies & levels
• 2mV to 20V pk-pk from 50 Ohms or 600 Ohms



• Dual independent or tracking 600 watt outputs
• PowerFlex+ design gives ultra-wide range of voltage/current combinations
• Up to 80V and up to 50A within each power envelope



• 10MHz D.D.S. function with arbitrary
• 0.1mHz to 10MHz range
• 7 digit resolution



• 0.003Hz to 3MHz frequency range
• High waveform quality at all frequencies & levels
• 2mV to 20V pk-pk from 50 Ohms or 600 Ohms



• 0.001Hz to 10MHz frequency range
• 6 digits or 1mHz resolution
• 1ppm stability and 10ppm one year accuracy
• Low distortion, high spectral purity sine waves



• Frequency, period, pulse width, frequency ratio, duty cycle, and event counter modes
• DC to 6000MHz range, 0.001mHz resolution
• High impedance measurement up to 125 MHz
• AC or DC coupling, 1M/50Ohm selection, polarity invert
• Switchable attenuator, threshold control

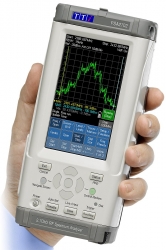

• 10MHz to 3600MHz or 6000MHz frequency range
• Resolution bandwidths from 300Hz to 10MHz (1:3:10)
• -120dBm typical noise floor at -40dBm ref. level/10kHz RBW
• Measurement in dBm or dBuV, mV or uW
• Zero span mode with AM and FM audio demodulation
• Trace modes of normal, peak hold and trace average
• USB interfaces for Flash drives and PC connection
