testo 440 - Indoor comfort ComboKit with Bluetooth

Code: testo 440 0563 4408




Datasheet PDF, 6 Mb


Description

testo 440 air velocity and IAQ measuring instrument:


  • No task is too challenging, no application too specific - the testo 440 combines a compact handheld measuring instrument with intuitive measurement menus and a wide selection of air velocity and IAQ probes (probes sold separately)
  • Clearly structured measurement menus for long-term measurement - simply enter the measurement time and measuring cycle and record data trends
  • Easy storage and evaluation of measurement data - internal memory for up to 7,500 measurement protocols, which can be read via USB port and further processed as a CSV file on the computer (e.g. with Excel)
  • Practical rear magnets for secure attachment of the measuring instrument to metal surfaces
  • Automatic detection of probes, e.g. CO2 probe, turbulence probe
  • Large, backlit color display

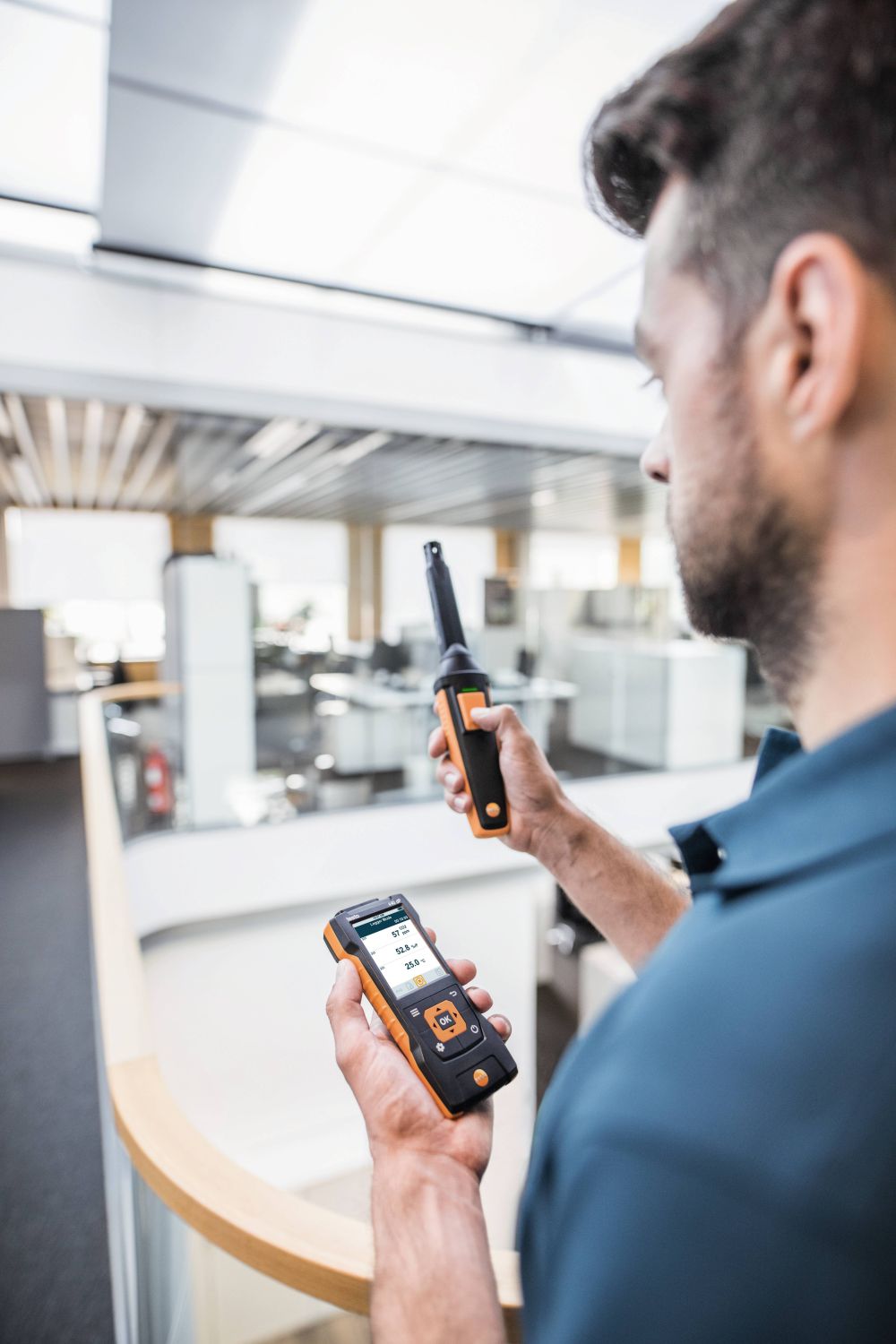

CO2 probe with Bluetooth and humidity/temperature sensor:


  • Measure CO2 concentration, humidity, and air temperature, and calculate dew point, wet bulb temperature, and absolute humidity
  • Accurate measurement results, thanks to air density compensation via integrated absolute pressure measurement
  • Measuring range: 0 to 10,000 ppm, 14 to 122 °F, and 5 to 95% RH
  • The Bluetooth handle makes it more convenient to carry out your measurements and guarantees less cable clutter in your case - it transmits readings to the testo 440, from up to 65 feet away
  • Practical button on the handle - for storing individual readings
  • Versatile - the universal handle can be connected to all probe heads, so you can take care of more applications, and use less equipment
  • Intelligent calibration concept - the testo 440 remains in continuous use, since only the individual probes need calibration

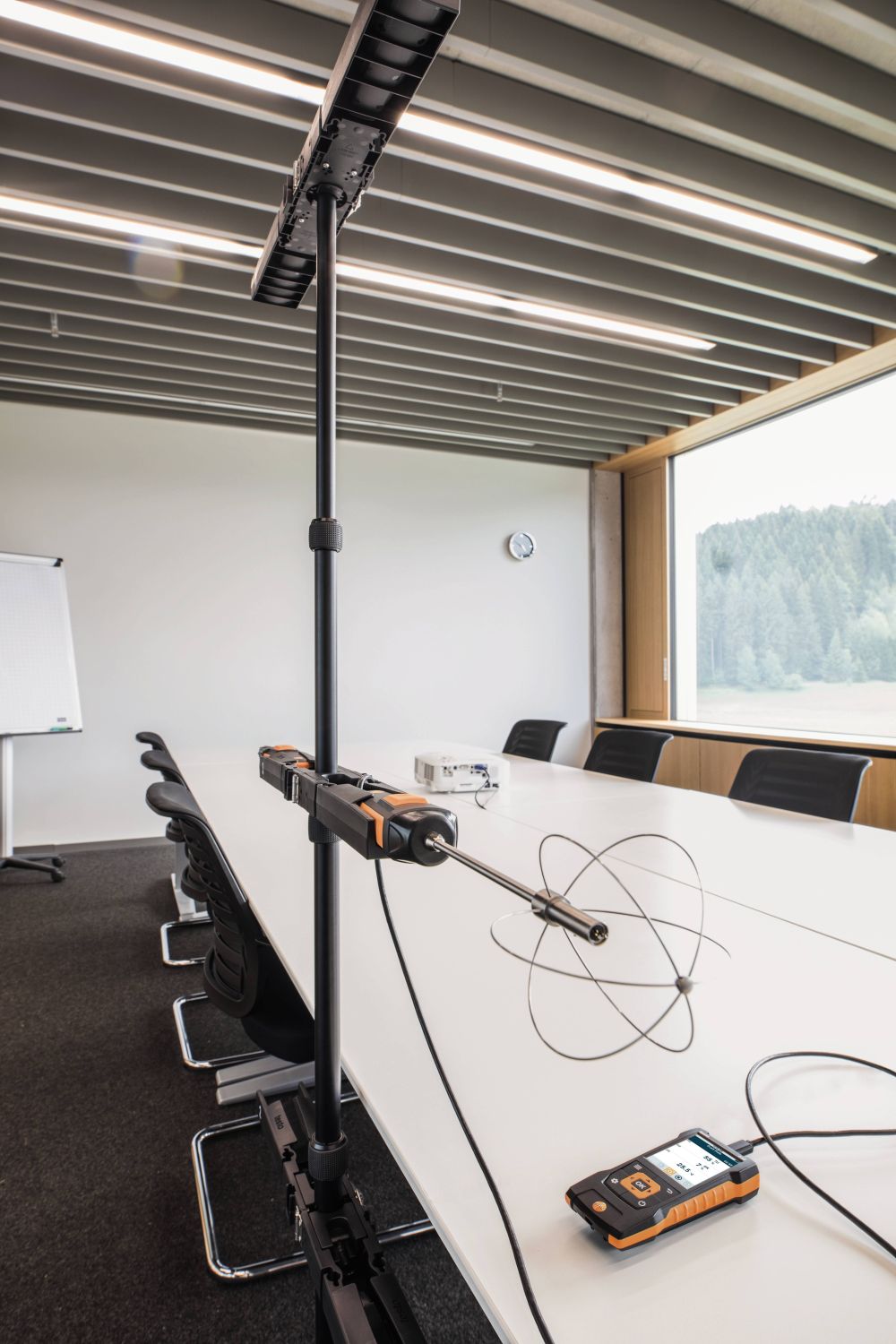

Turbulence probe with air velocity and temperature sensor:


  • Use the turbulence probe to measure air velocity and air temperature
  • Determine the degree of turbulence and draft risk according to EN ISO 7730 / ASHRAE 55
  • Accurate measurements from 0 to 984.3 fpm within the temperature range 0 to 122 °F, thanks to air density compensation via integrated absolute pressure measurement
  • Use the measuring tripod for easy positioning of the turbulence probe (sold separately)
  • Use the fixed cable to connect the turbulence probe to the testo 440

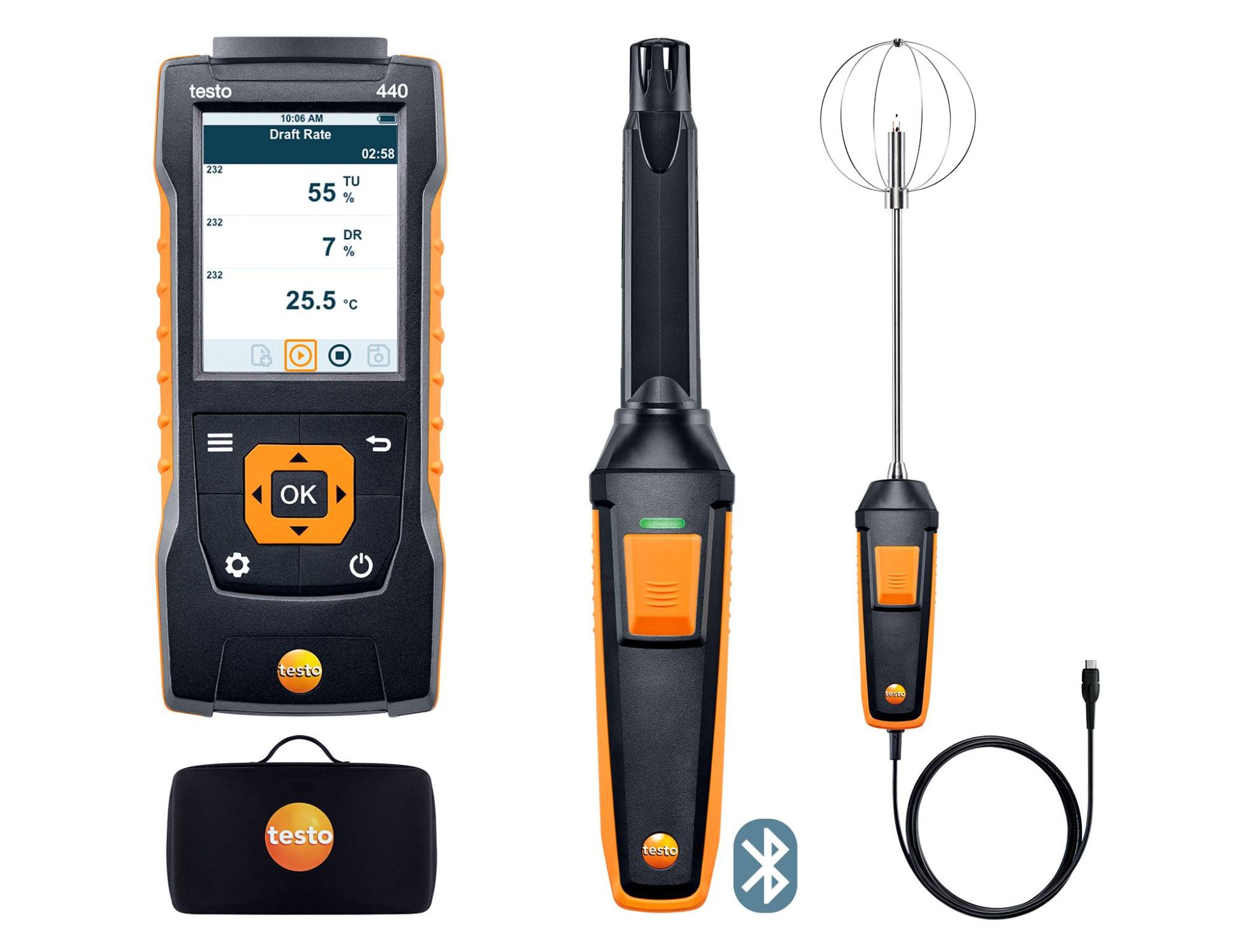

Delivery Scope



  • testo 440 air velocity and IAQ measuring instrument, 3 AA batteries, USB cable, and calibration protocol (0560 4401)
  • CO2 probe with Bluetooth and humidity/temperature sensor* (consisting of CO2 probe head and Bluetooth handle), 4 AA batteries, table stand, and calibration protocol (0632 1551)
  • Turbulence probe with fixed cable (length 4.6') and calibration protocol (0628 0152)
  • Combi-case for testo 440 and multiple probes (0516 4401)
