16 channels logic analyzer, mixed test, pattern cursor test and data memory
2 Analog channels plus external trigger
1 Million point deep memory
1 GSa/sec max sample rate
5.7"� TFT QVGA (320X240) with 64K color LCD backlit display
Trigger modes: edge, pulse width, slope, video, pattern, continuous time, and alternate

Model	DS1102D		DS1052D
Bandwidth	100 MHz		50 MHz
Analog Channels	2
Vertical Sensitivity	2 mV/div - 10V/div
Real-time Sample Rate	1 GSa/s�¼�each channel�¼��¼�500 MSa/s�¼�dual channels�¼�
Equivalent Sample Rate	25 GSa/s		10 GSa/s
Memory Depth	Mode	capture rate	common	long memory
	one channel	1 GSa/s	16 kpts	N/A
		500 MSa/s	16 kpts	1 Mpts
	dual channels	500 MSa/s 250 MSa/s or less	8 kpts 8 kpts	N.A. 512 kpts
Standard Interface	USB Host & Device, RS-232, P/F Out
Vertical Resolution	8 bits
Math	�¼�, �¼�, �-, FFT
Max Input Voltage	All inputs 1Ω"-15pF 300 V RMS CATâ��
Cursor Measurements	Manual, Track and Auto Measure modes

Standard accessories

Standard Accessories

 Probe�-2 (1.5m), (1:1 or 10:1 adjustable) Passive Probes

 A Power Cord that fits the standard of destination country

 A Data Cable (DS1000D series)

 An Active Logic Head (DS1000D series)

 20 Logic Testing Nips (DS1000D series)

 20 Logic Testing leads (DS1000D series)

 A CD-ROM (including User"™s Guide and Application Software)

 A Quick Guide

Recommended options

Optional Accessories

 BNC Cable

 USB Data Cable

 RS232 Cable

 USB-GPIB Adapter

 DS1000E, DS1000D soft carrying case

More products RIGOL

RIGOL DS1000Z DIGITAL OSCILLOSCOPE

• DS1054Z 4-Channel, 50MHz Bandwidth, 1GS/s Sample Rate, 12Mpts
• DS1074Z 4-Channel, 70MHz Bandwidth, 1GS/s Sample Rate, 12Mpts
• DS1104Z 4-Channel, 100MHz Bandwidth, 1GS/s Sample Rate, 12Mpts
• DS1074Z-S 4-Channel, 70MHz Bandwidth, 1GS/s Sample Rate, 12Mpts, Generator
• DS1104Z-S 4-Channel, 100MHz Bandwidth, 1GS/s Sample Rate, 12Mpts, Generator

RIGOL DG4102 ARBITRARY WAVEFORM GENERATOR 100MHZ 2-CHANNEL

• DG4202 200 MHz, 2 ch, 14 bit, 500MS/s
• DG4162 160 MHz, 2 ch, 14 bit, 500MS/s
• DG4102 100 MHz, 2 ch, 14 bit, 500MS/s
• DG4062 60 MHz, 2 ch, 14 bit, 500MS/s

RIGOL DG5351 DG5352 ARBITRARY WAVEFORM GENERATOR 350MHZ

• DG5352 350 MHz, 2 ch, 14 bit
• DG5351 350 MHz, 1 ch, 14 bit
• DG5252 250 MHz, 2 ch, 14 bit
• DG5251 250 MHz, 1 ch, 14 bit
• DG5102 100 MHz, 2 ch, 14 bit
• DG5101 100 MHz, 1 ch, 14 bit
• DG5072 70 MHz, 2 ch, 14 bit
• DG5071 70 Mhz, 1 ch, 14 bit

RIGOL DS1202Z-E DS1102Z-E LOW COST CHEAP PRICE OSCILLOSCOPE

•

RIGOL DHO800 12-BIT OSCILLOSCOPE

• DHO814 100 MHz, 1.25 GSa/s, 25 Mpts, 4CH 12-bit
• DHO812 100 MHz, 1.25 GSa/s, 25 Mpts, 2CH 12-bit
• DHO804 70 MHz, 1.25 GSa/s, 25 Mpts, 4CH 12-bit
• DHO802 70 MHz, 1.25 GSa/s, 25 Mpts, 2CH 12-bit

RIGOL DG4062 ARBITRARY WAVEFORM GENERATOR 60MHZ 2-CHANNEL

• DG4202 200 MHz, 2 ch, 14 bit, 500MS/s
• DG4162 160 MHz, 2 ch, 14 bit, 500MS/s
• DG4102 100 MHz, 2 ch, 14 bit, 500MS/s
• DG4062 60 MHz, 2 ch, 14 bit, 500MS/s

RIGOL DG1022A ARBITRARY SIGNAL GENERATOR 25MHZ 2-CHANNEL

• DG1022A 25 MHz, (2) ch, 14 bit, 100MS/s
• DG1022 20 MHz, (2) ch, 14 bit, 100MS/s

RIGOL DSA815 SPECTRUM ANALYZER 1.5GHZ

• DSA815 9 kHz to 1.5 GHz
• DSA832 9 kHz to 3.2 GHz
• DSA875 9 kHz to 7.5 GHz
• DSA815-TG 9 kHz to 1.5 GHz, incl. Tracking Generator
• DSA832-TG 9 kHZ to 3.2 GHz, incl. Tracking Generator
• DSA875-TG 9 kHz to 7.5 GHz, incl. Tracking Generator

RIGOL DHO900 12-BIT OSCILLOSCOPE

• DHO924S 250 MHz, 1.25 GSa/s, 50 Mpts, 4CH 12-bit, Built-in Signal Source
• DHO924 250 MHz, 1.25 GSa/s, 50 Mpts, 4CH 12-bit
• DHO914S 125 MHz, 1.25 GSa/s, 50 Mpts, 4CH 12-bit, Built-in Signal Source
• DHO914 125 MHz, 1.25 GSa/s, 50 Mpts, 4CH 12-bit

RIGOL DG4162 ARBITRARY WAVEFORM GENERATOR 160MHZ 2-CHANNEL

• DG4202 200 MHz, 2 ch, 14 bit, 500MS/s
• DG4162 160 MHz, 2 ch, 14 bit, 500MS/s
• DG4102 100 MHz, 2 ch, 14 bit, 500MS/s
• DG4062 60 MHz, 2 ch, 14 bit, 500MS/s

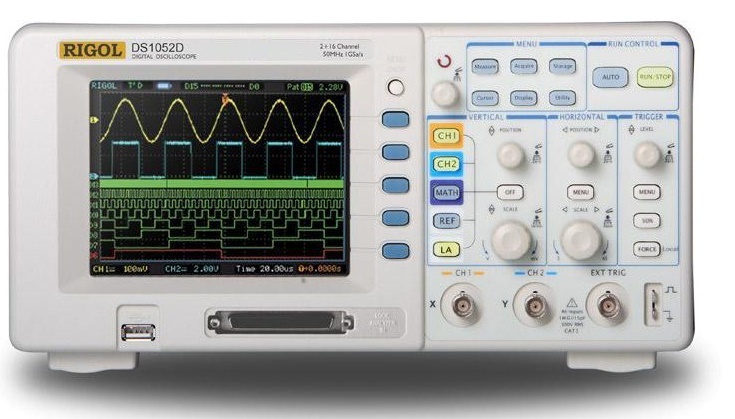

Rigol DS1052D Digital OscilloscopeOBSOLET PRODUCT ( * OUT OF USE )
