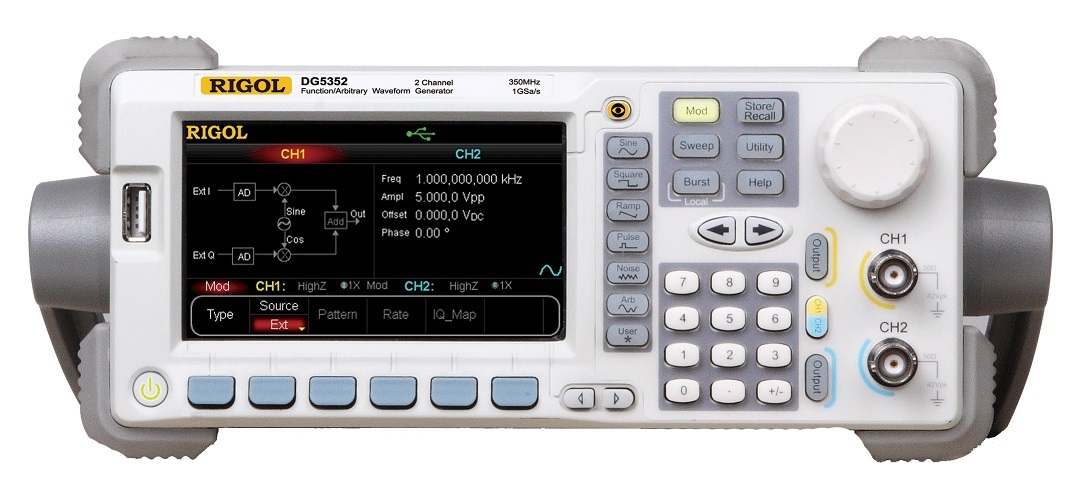

DG5000 is a multipurpose generator combining different capabilities including Function Generation, Arbitrary Waveform Generation, IQ Baseband Source/IQ IF Source, Frequency Hopping Source (optional) and Pattern Generation (optional). With single and true, independent, dual-channel models that provide adjustable phases between the two channels. The DG5000 adopts Direct Digital Synthesizer (DDS) technology, which providing stable, precise, low distortion signals. The user-friendly interface design and panel layout improves efficiency or utilize an interface for complete programmability.

Generators up to 350 MHz
1 GSa/Sec waveform output
14 bit vertical resolution
128 Million Points of Arbitrary Waveform Memory
Built in standard modulations including IQ modulation for digital baseband generation including QPSK and QAM formats
Standard Interfaces including LXI-C (Ethernet), USB device and host, and GPIB
Options including output amplifier (PA-1011) and frequency hopping capability

Model	DG5352	DG5351	DG5252	DG5251	DG5102	DG5101	DG5072	DG5071
Channels	2	1	2	1	2	1	2	1
Frequency	350 MHz		250 MHz		100 MHz		70 MHz
Sample Rate	1 GSa/s
Waveform Length	Up to 128 Million points
Resolution	1 µHz
Amplitude range	5 mVpp - 10 Vpp(50 O),10 mV - 20 Vpp(into open circuit)
Vertical Resolution	14 bits
Standard Interface	USB Host(2),USB Device,GPIB,LXI-C (Ethernet)
Options	Hop Frequency Module,Logic Signal Output Module,Power Amplifier
Weight	10 lbs.
