TV Analyzer for American HDTV with MPEG Video/ Audio Decoding Promax TV EXPLORER HD ISDB-T/Tb
OBSOLET PRODUCT ( * OUT OF USE )

Code: Promax TV-EXPLORER-HD ISDB-T/Tb




Datasheet PDF, 0.23 Mb

Description

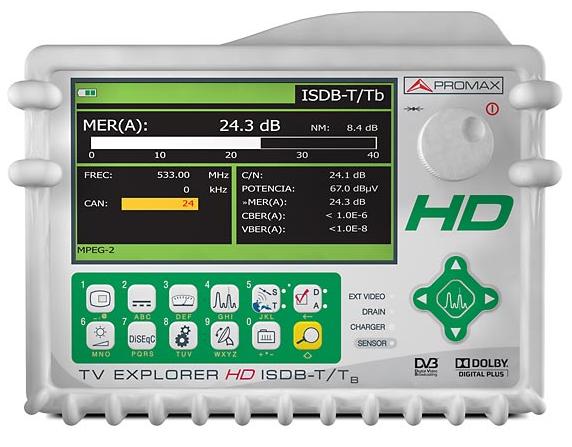

The most advanced PROMAX field strength meter. In addition to all features that are required by HDTV, includes Dolby Digital Plus and HE-AAC decoders, as well as full compatibility with DSS and ISDB-T/TB (measurements and decoding).

Would it be possible to have all those features in a 2 kg meter?:

  • Video decoding: MPEG-2 and MPEG-4 H.264
  • Audio decoding: Dolby Digital Plus, HE-AAC, AAC and MPEG-1/2
  • Video formats:?SD (standard definition) and HD?(high definition)
  • Video resolutions: 1080i, 720p and 576i
  • Screen formats: 16:9 and 4:3
  • HDMI interface
  • ISDB-T/TB, DSS, DVB-C, QAM?Annex A?& B and DVB-S/S2
  • CAM module?(Conditional Access) for encrypted channels
  • TS-ASI input and output
  • Constellation diagram

FREQUENCY?MARGIN

From 5 to 1000 MHz and from 950 to 2150 MHz

VIDEO
  Digital modulations
  Resolutions
  Video formats
  Colour system
  Aspect ratio


ISDB-T/TB, DSS, DVB-S, DVB-S2, DVB-C Annex A
?& B
1080i, 720p, 576i
MPEG-2, MPEG-4 H.264
PAL M, N / NTSC M, N
16:9, 4:3

CONNECTIONS

SCART, HDMI, TS-ASI (input and output), USB, Common Interface

DIGITAL?MEASUREMENTS

Power, CBER, VBER, MER, C/N, Noise margin, Link Margin, LBER, Wrong packets

DVB-S2 SIGNAL?PARAMETERS

Symbol rate (QPSK) 1 to 45 Mbaud
Symbol rate (8PSK) 1 to 45 Mbaud

ANALOGUE?MEASUREMENTS

Level, V/A, C/N, deviation, FM demodulation

ADVANCED?FUNCTIONS

- Channel Scan and Channel Table Creation (EXPLORER)
- Automatic identification of the signal type (AUTO ID)
- Constellation diagram for ISDB-T, DVB-C, DVB-S and DVB-S2
- Built-in spectrum analyser with direct access keys
- Datalogger for digital and analogue channels.
- SAT
?IF test (IF distribution network response for satellite band)
- Attenuation test function (signal distribution network response for terrestrial band)
- DiSEqC generator and LNB supply
- Audio and Video recording and playing



Recommended options

OP-006-K  8VSB Constellation for US TV EXPLORER II



OP-005-19  Rack mount option for TV EXPLORER range



OP-009-D  DDP option



OP-009-T  DVB-T2 option for TV EXPLORER HD



OP-009-OP  Selective OPM for FTTh (TV EXPLORER HD / HD+ / HD LE). PC or APC. Factury built-in



PA-009-OP  Selective OPM for FTTh (TV EXPLORER HD / HD+ / HD LE). PC or APC.  Upgrade at calibration center



OP-009-OS  5-2500 MHz Optical to RF converter  (TV EXPLORER HD / HD+ / HD LE). PC or APC. Factory built-in



PA-009-OS  -2500 MHz Optical to RF converter  (TV EXPLORER HD / HD+ / HD LE). PC or APC.  Upgrade at calibration center



OP-009-PS  Selective OPM for FTTh and 5-2500 MHz Optical to RF converter (TV EXPLORER HD / HD+ / HD LE). PC or APC. Factory built-in



PA-009-PS  Selective OPM for FTTh and 5-2500 MHz Optical to RF converter (TV EXPLORER HD / HD+ / HD LE). PC or APC. Upgrade at calibration center
